Description
- Speed(RPM): 24v 16rpm, Voltage(V): shaft 8mm Bracket
- Usage: BoAt,car,Electric Bicycle,Fan,Home Appliance
- Model number: 36GP-3626
- Protect feature: Drip-proof
- Commutation: Brush

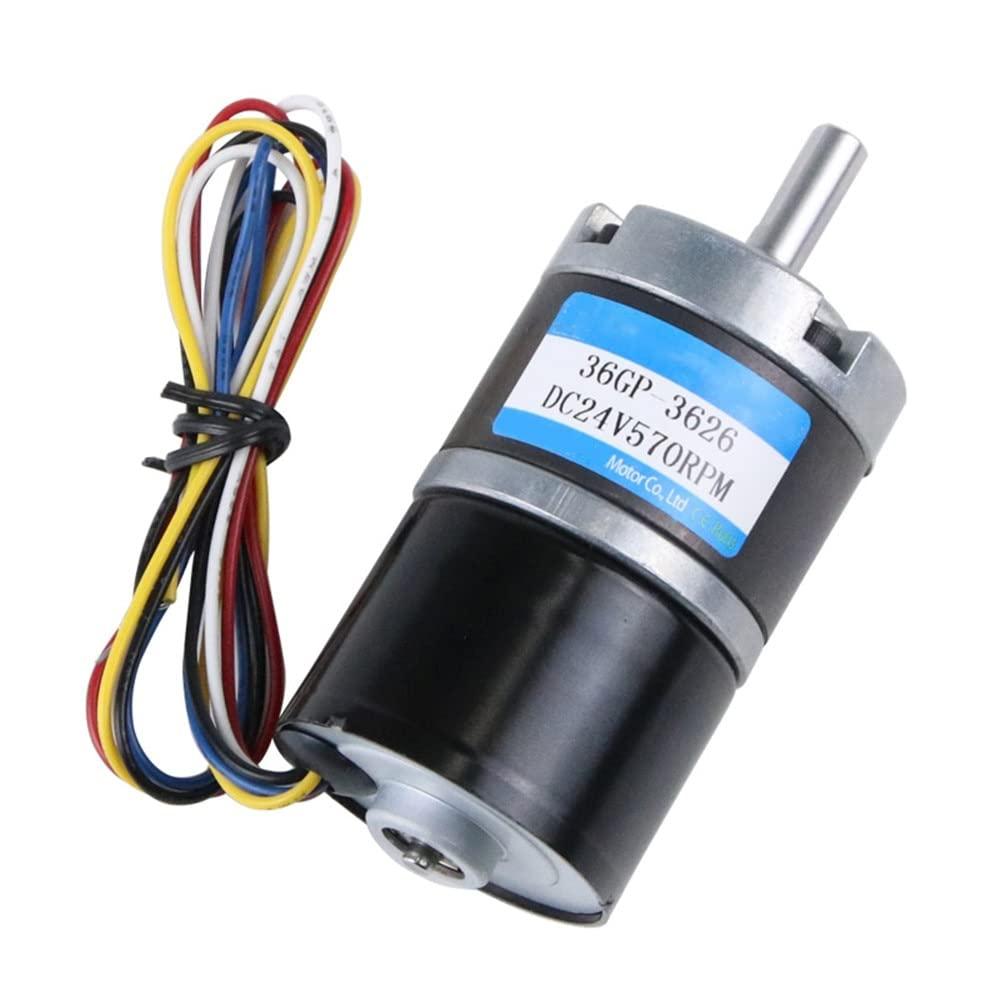

Wiring method introduction
Black line : Connect DC power supply negative -
Red line: Connect DC power supply positive +
Note: Connect the blue line to the negative line of the power supply and the motor will stop immediately, this is the brake function
White line: is the line that controls the motor to rotate clockwise or counterclockwise. Connect the white line to the black line and the motor will change the direction of rotation immediately.
Yellow line: FG signal line outputs Hall signal, the base pulse rotates one turn and one signal
Blue line: PWM pulse width speed control line, can be connected to 0 To 5V pulse width governor
Friendly reminder: The positive and negative poles of the power supply are forbidden to be connected incorrectly. The signal cable is forbidden to be connected to the power supply. Please use the motor strictly according to the above description, otherwise the motor will burn out, thanks
The following is the connection photo of the motor and controller
Yellow wire: the negative pole of the input DC power supply
Green wire: the positive pole of the input DC power supply
The positive and negative poles of the power supply are forbidden to be connected incorrectly.
The following is the motor parameter table
Pls contact me if you need other Voltage and speed or Leaving a message.

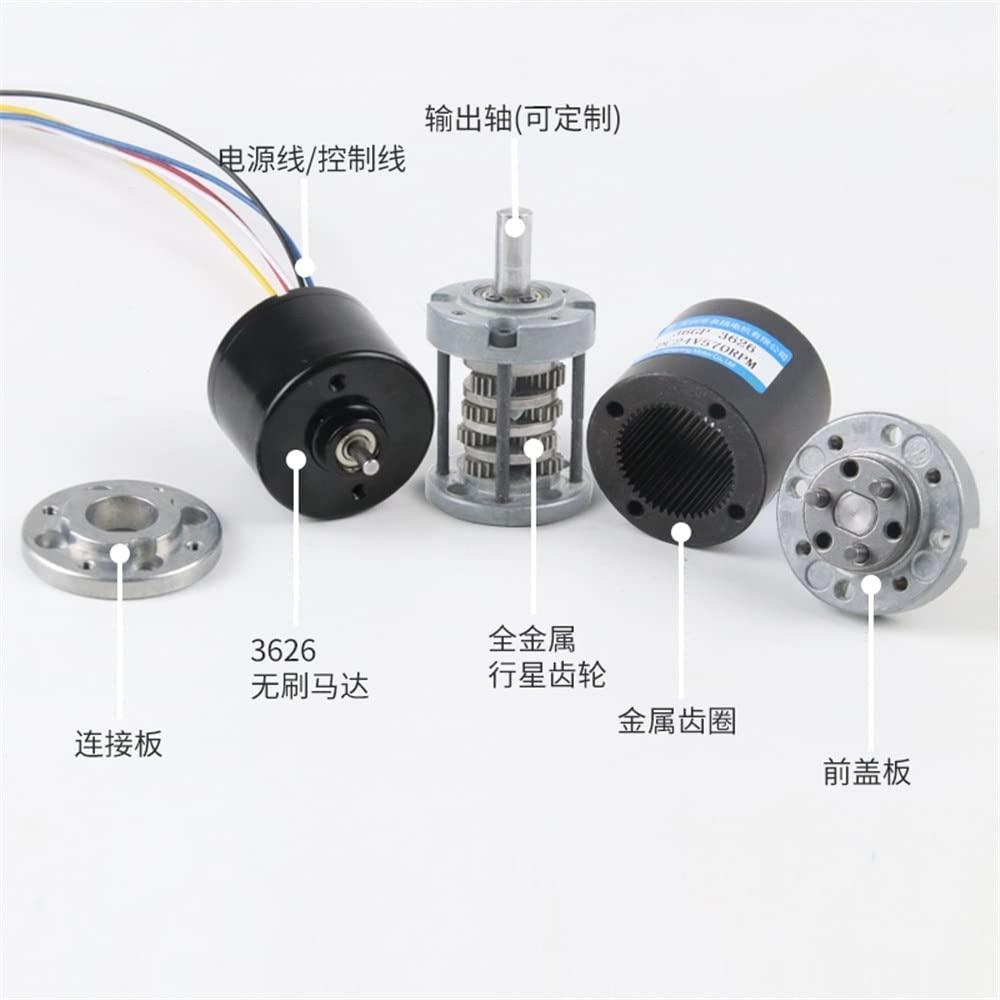

The following is a description of the quality materials and structures of this motor.
The size is for reference only,the measurement will be slightly different,please pay attention before buying
Item specifics:
Usage: BoAt,car,Electric Bicycle,Fan,Home Appliance
Model number: 36GP-3626
Protect feature: Drip-proof
Commutation: Brush
Construction: Permanent Magnet
Efficiency: IE 1
Type: Gear Motor
Certification: CCC,ROHS
Origin: Mainland China
