Description
- CompatibleFor this RC crawler shafty chassis, we recommend using the 1/10 Axial Capra Axles (Capra F9 Offset portal axle or VP version) and please select the GearBox with a mounting hole of 38mm.
- 4.1mm Carbon FiberThe material selected is 4.1 mm thick 3K carbon fiber, Laser cut from carbon fiber which is durable and beautiful. which is a high-strength and high-modulus fiber material.
- PerformanceThe chassis is designed to be light, rigid, and flexible with Multiple fixing holes with enough adjustment possibilities which greatly improves the climbing ability performance of the vehicle.
- DesignedAdded many shock mount points for better suspension tuning. Change the layout of the car, and create stronger climbing ability, making this a great option for crawler builds.
- Accessories Recommended1. Axles: capra F9 offset portal axle or VP version 2. skid and transmission: EPINON V2/Rhino GB867 3. transfer case: EPINON TT1 4. drive shaft: 2pcs 65-81mm, 1pcs 101-154mm, 5. shocks: 90-100mm, 6. wheels: 1.9In/2.2In carbon fiber 7. motor: outrunner crawler motor, 8.ESC: AM32/VE40A crawler ESC 9. standard size servos, 10. battery: recommend 850mAh LiPo battery.
Specifications:

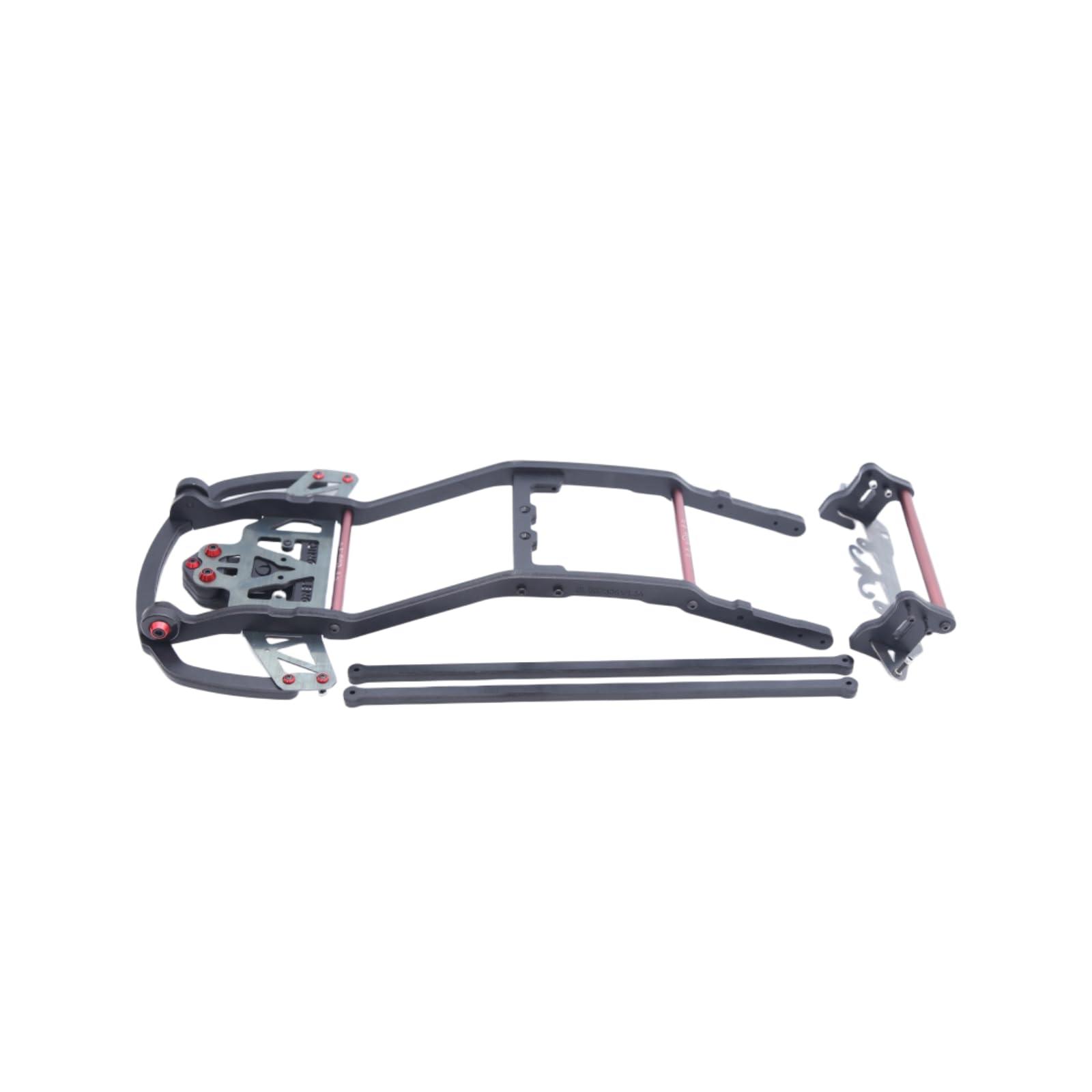

Product Name: MOA Carbon Fiber Crawler Chassis
Material: Carbon Fiber
Size:
Length: 215mm/8.46in
Width: 78.2mm/3.08in
Weight: 58g
Screw Specifications: 3M
Pull Lever:
Material: Aluminum 7075
Length: 19mm * 2
9.9mm * 2
5.9mm * 2
3.4mm * 1
Recommended Accessories (NOT Included):
Axles: Capra F9 Offset Portal Axle or VP Version
Skid and Transmission: EPINON V2/GB867 (ASIN: B0CN2WQSFJ)
Transfer Case: EPINON TT1 (ASIN: B0CN18GGHY)
Drive Shaft: 1pcs 65-81mm(ASIN: B0CJ2SRBRM), 1pcs 101-154mm (ASIN: B0CJ2VDBZM)
Shocks: 90-100mm
Wheels: 1.9In/2.2In Carbon Fiber Wheels, (ASIN: B0C5R6GJ9W/B0CDPDKZ7Y)
Motor: Outrunner Crawler Motor (ASIN: B0CFFGN63T)
ESC: AM32 Crawler ESC (ASIN: B0BZ7RDTL2)
Servo: Standard Size Servos
Battery: Recommend 850mAh LiPo Battery
