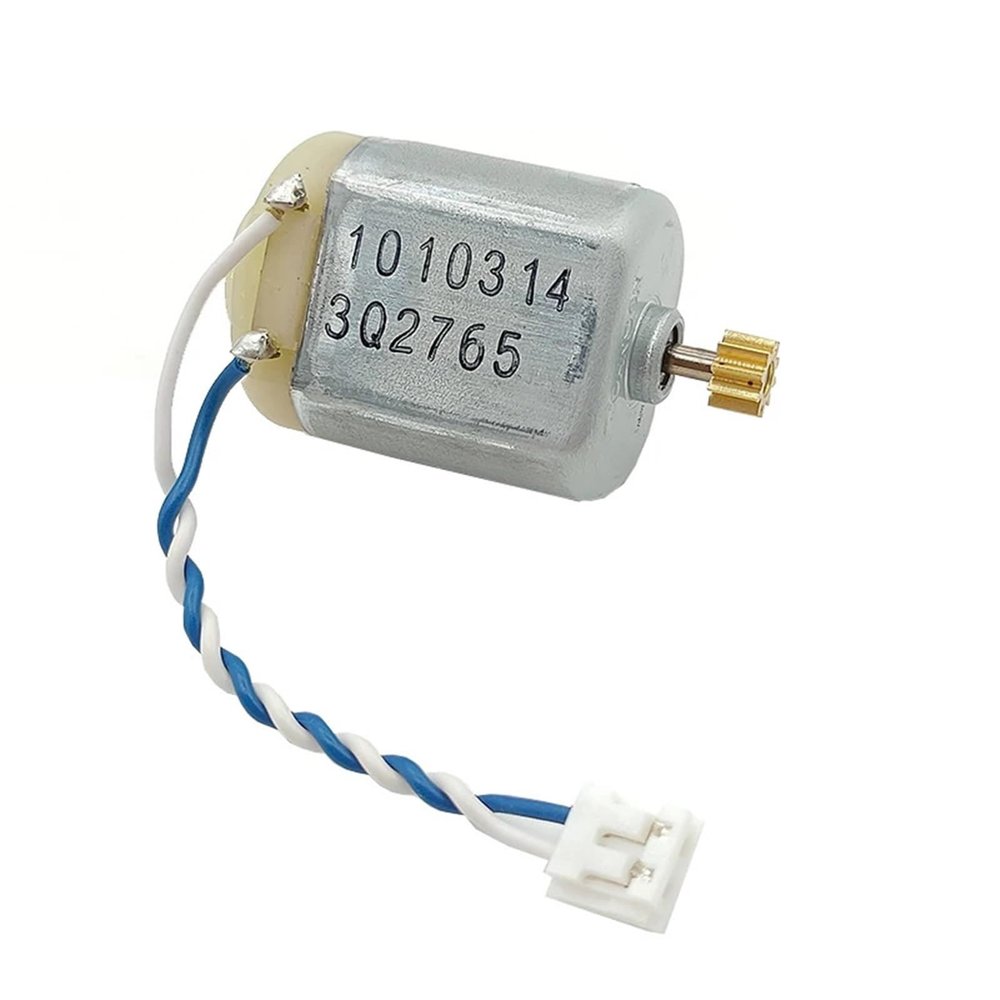

1010314 FC-130SA Mini 130 Motor DC 12V-24V 10T Gear 20mm Electric Motor for Car Central Lock Door Lock Actuator 1Pcs

Description

• Motors

Motors
1010314 FC-130SA Mini 130 Motor DC 12V-24V 10T Gear 20mm Electric Motor For Car Central Lock Door Lock Actuator 1Pcs
1.Model: FC-130SA (1010314)
3.Motor size: 15.4mm*20.3mm
4.Motor height: 25mm
5.Output shaft diameter: 2.0mm
6.Output shaft length: 6mm (not include step height)
7.Copper gear teeth: 10 teeth
8.Copper gear diameter: 5mm
9.Copper gear thickness: 3.3mm
10.Weight: 25g
11.Suitable voltage: DC12V-24V
12.Test data:
Voltage:12V No-load current:20mA No-load speed:6800RPM
Voltage:18V No-load current:25mA No-load speed:10300RPM
Voltage:24V No-load current:50mA No-load speed:13500RPM
Package List:
Motor x 1PCS
<;18.65
Model Number : FC-130SA
Construction : Permanent Magnet
Protec Feature : Explosion-proof
Commutation : Brush
Efficiency : IE 1
Use : Home Appliance
Model : FC-130SA (1010314)
Motor size : 15.4mm*20.3mm
Motor height : 25mm
Output shaft diameter : 2.0mm
Voltage range : DC 12V-24V
Speed range : 6800RPM-13500RPM
Weight : 25g
