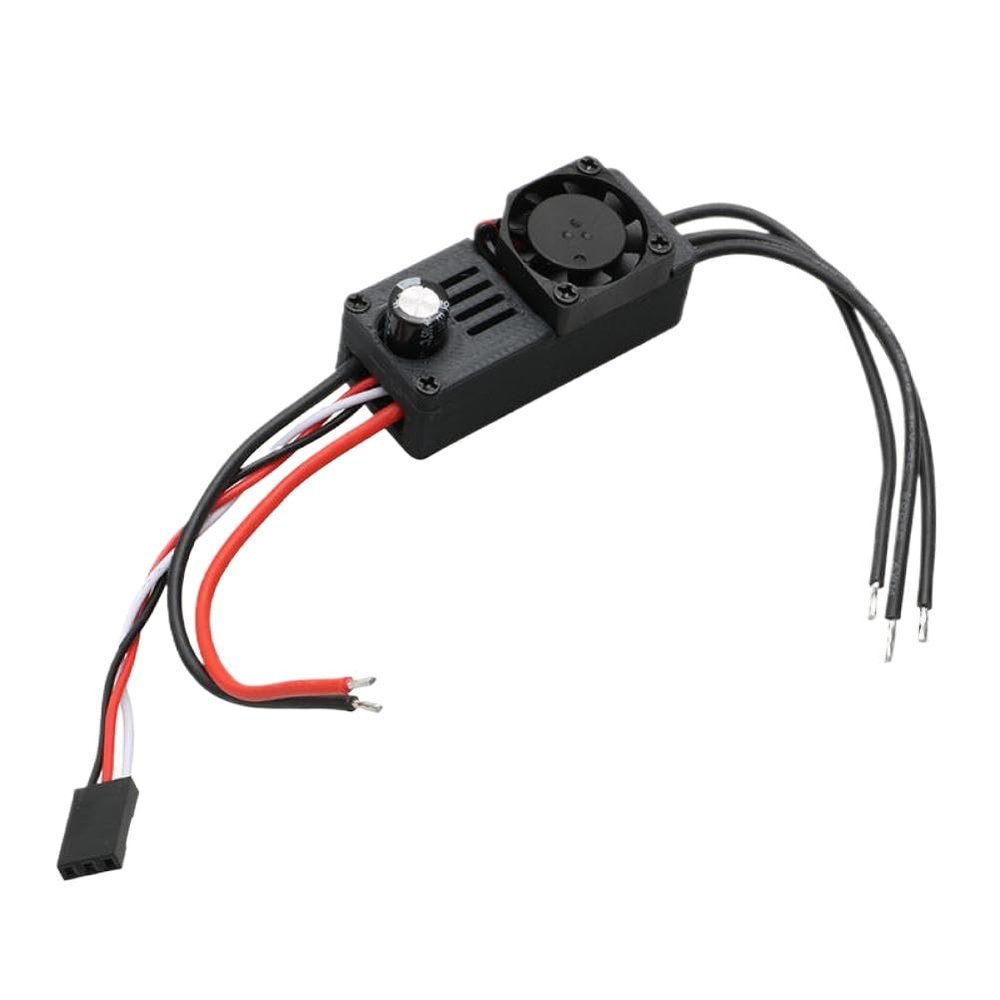

1PC 2-4S 40A 32-bit ESC AM32 Speed Controller Onboard 5V2A BEC with Heat Dissipation Fan Support PWM Compatible with Drone RC Crawler(AM32 ESC)

Description

• Model AM32 32-bit ESC designed for function applications supporting 2-4S LiPo batteries
• Capable of handling up to 40A continuous current ideal for RC crawlers drones and other hobby vehicles
• Integrated 5V 2A BEC provides stable power output for receivers and servos control response
• Equipped with a heat dissipation fan to maintain operating temperatures during extended use
• Supports standard PWM signals for compatibility with a wide range of radio systems and flight controllers

1PC 2-4S 40A 32-bit ESC AM32 Speed Controller Onboard 5V2A BEC with Heat Dissipation Fan Support PWM for Drone RC Crawler This 32-bit ESC is designed for compact installation and serves as a power solution for small model aircraft, RC crawlers, and climbing vehicles.It features a selected low-power MOS tube for efficient heat dissipation and function.An integrated speed fan provides active cooling, making it suitable for load applications.The controller includes low-speed torque compensation for improved responsiveness at reduced speeds.Equipped with a 5V2A BEC module, overcurrent copper bars, and thermal conductive sheets, the ESC delivers stable power output.A 470uF 35V capacitor is included to enhance operational stability.It supports control signals such as PWM and DSHOT, offering smooth speed regulation with linear response at low speeds and dynamic function at higher speeds.The device runs on AM32 open-source firmware, allowing customization of parameters including sine startup, bidirectional , adjustable drag braking, and fast forward-reverse switching.It is compatible with 2-4S LiPo batteries, handles a maximum current of 40A, and has dimensions of 47x20x21mm with a wire length of 94mm and weight of approximately 23.5g.
