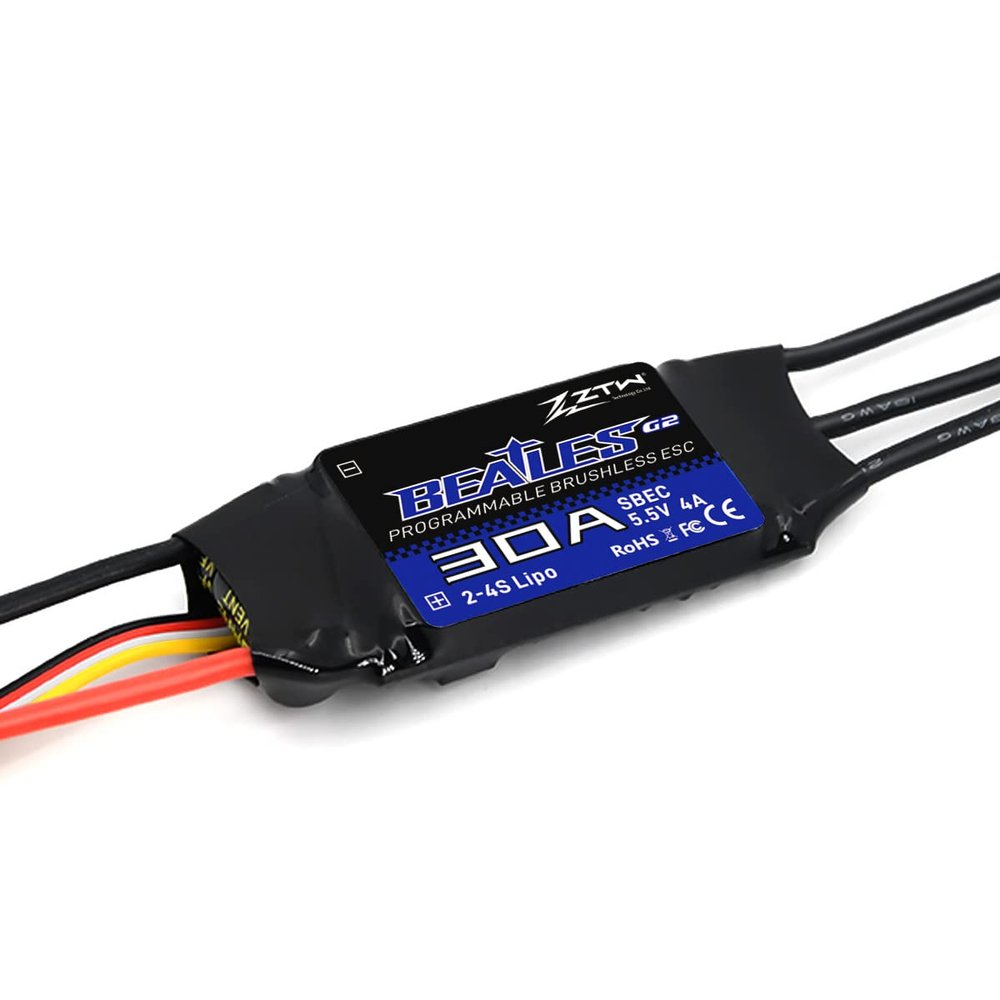

30A ESC with 5V/2A BEC Output for Fixed Wing Airplane 2-4S LIPO ZTW (30A BEC with Connectors)

Description

• Super smooth, accurate and programmable throttle linearity and throttle response.
• Over temperature protection ,low voltage cut off protection ,signal loss protection and so on.
• Strong BEC output 5A/3.5V continuous and peak to 5A.
• Supporting high RPM motors and programmable by programming card and transmitter .
• High efficiency with low resistance and low heat MOSFET and CPU.

Key Features :
Aluminum heat sink to lower ESC heat.
Adjustable softstart according to different RPM and Pole Motor.
Supporting High RPM and Pole Motor.
Functions programmable : Brake,cut off voltage,softstart,motor direction etc.

Description :
Connector Soldered : 1 x XT60 for power side ,3 x 3.5mm female for motor side.
Size :43mm x 24mm x 10mm (LxWxH).
Battery : 2-4S Lipo / 5-12NC.
Voltage : 7.6V-15.8V.
Current :30A ,peak 40A for 10 seconds.
BEC output : 2A/5V, peak 3A
Weight :28g.
Motor Type : Brushless (no brushed)
RPM support200,000 for 2 P ,82,000 for 6 P,42,000 for 12 P.

Application
RC Airplane with inrunner motor or EDF system.
RC Muliticopter multiroter or any other DIY project of industry.

Package includes :
ESC x 1
User Manual x 1

Note !!Application
RC Airplane with inrunner motor or EDF system.
RC Muliticopter multiroter or any other DIY project of industry.

Please do make the throttle calibration for the first time using or changed the TX. Warning !!
Before you buy the ESC please make sure you have receiver and transmitter or servo tester.
