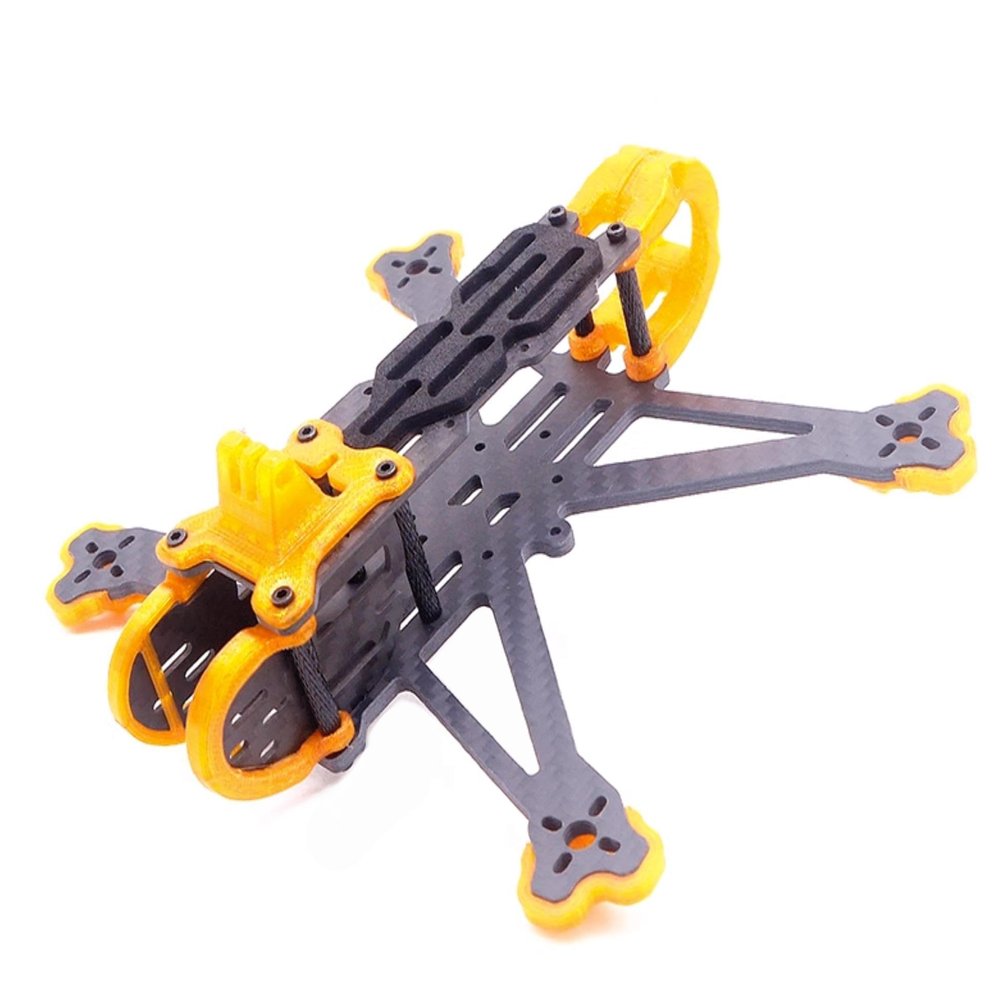

3.5 inch 155mm Carbon Fiber Frame Kit for DJI Caddx Polar Vista digital hd system RC Drone FPV Racing Carbon fiber Quadcopter Drone Frame

Description

• Specially designed for Caddx polar vista which gives you a total new level of fpv experience. Camera is well protected with 3d-printed protector.
• Durable: This 3.5 inch micro frame is made of high-quality 3K Carbon Fiber, 3.0mm bottom plate, designed to sustain multiple crashes and abuses
• Powerful: Perfect combination with brushless motors with 9*9mm/12*12mm mounting holes including 1106 1204 1404 brushless motors,etc.
• Versatile: 20*20mm(M2), 25.5*25.5mm(M2) Flight controller hole distance. 0-60 adjustable camera angle
• Enhance your FPV experience with all the 3d-printed parts included: rear antenna mount and a universal action camera mount, all in one package. Get ready to take to the skies and capture breathtaking moments right out of the box

Wheelbase: 155mm
Weight: about 51g
Upper plate: 1.5mm
Side plate: 1.5mm
Bottom plate 3.0mm
Propeller: 3.5 inch prop
Flight control hole distance: 20*20mm(M2), 25.5*25.5mm(M2)
Hole distance: 20*20mm (M2)
Camera installation width: 19mm
Motor mounting holes: 9*9mm(M2), 12*12mm(M2)
Suit for Caddx VISTA HD system
Internal height: about 25mm

Recommended:
Motor: 1404 3800KV brushless motor (M2, 9*9MM, 12*12MM) and other series motors
FC&ESC: F4 AIO 20A Brushless Flight Control V3(M2,20*20mm)
Battery: 750mAh 4S 95C
Propeller: HQ 3520
Camera & VTX: Caddx Polar Vista Kit (VTX)
FPV camera angle: 0-60
Receiver: ELRS 2.4GHz Receiver/TBS Receiver
Power connections: XT30, black and red wires
Reference flight time: 4S 750mAh battery 11~13 minutes smooth flight or 4~6 minutes FPV flying
Package Includes:
3.5inch 155mm Frame kit*1, 3d-printed parts (Camera side plate*2, Motor protector*4, Antenna mount*1, universal camera mount*1)
