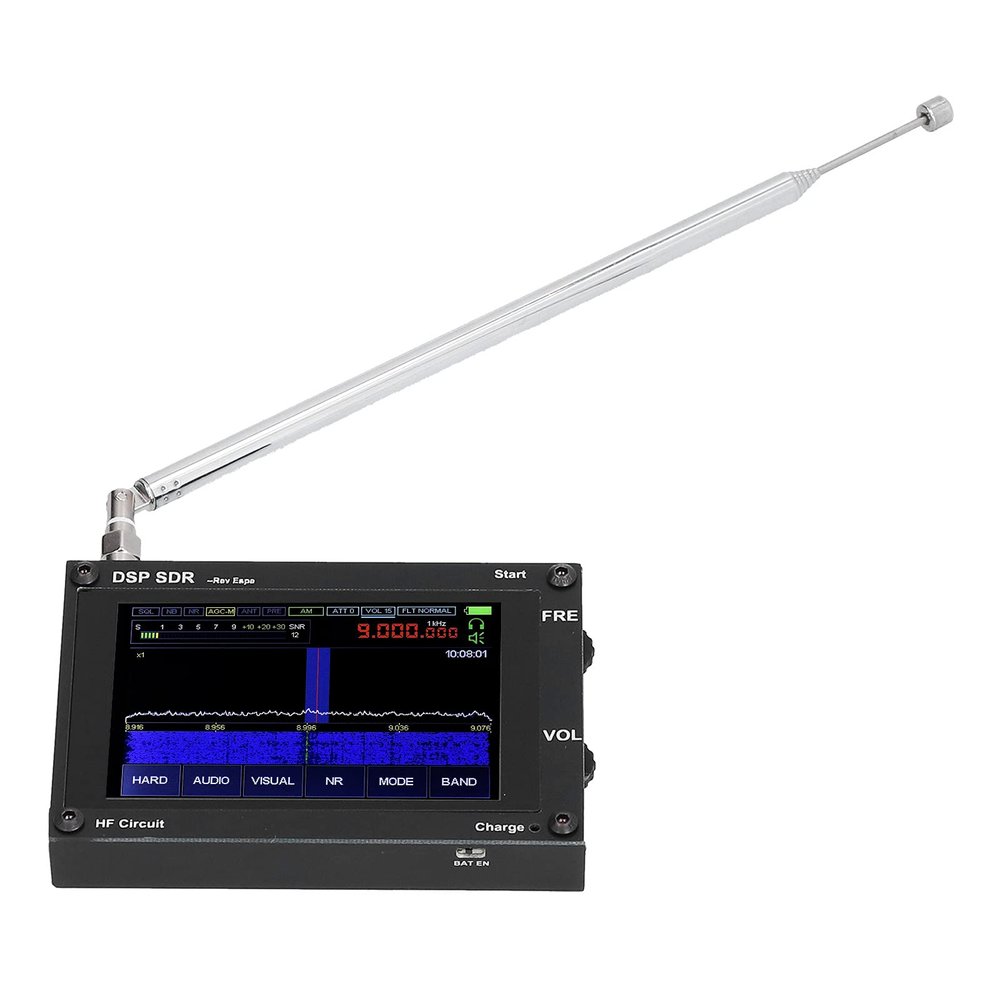

50KHz2GHz SDR Receiver SDR Receiver Ultra Thin DSP SDR Receiver 3.5in Registered with Antenna

Description

• FOUR LAYER CIRCUIT BOARD PROCESS: The main board PCB uses four layer circuit board process, and perform impedance matching on the circuit
• CONFIGURATION INFORMATION: The screen backlight can be controlled, using good quality sound cavity with a bass diaphragm, and adopt SMA antenna socket
• SPECIFIC FEATURES: Due to using the for msi001 chip used, the dynamic blocking range is about 85dB, and the sensitivity is 0.3V at 250MHz
• CLEARLY DISPLAY: 3.5in display with , screen display bandwidth is 160kHz, and support zoom display
• MODE: Transmit CAT, IQ and Audio: The mode includes two EC11 pulse encoders and capacitive . Connect to the computer via USB, can transmit CAT, IQ and audio

1. Impedance Matching: The main board PCB uses four layer circuit board process, and perform impedance matching on the circuit
2. Good Quality Sound Cavity: The screen backlight can be controlled, using good quality sound cavity with a bass diaphragm, and adopt SMA antenna socket
3. 0.3?V Sensitivity at 250MHz: Due to using the for msi001 chip used, the dynamic blocking range is about 85dB, and the sensitivity is 0.3?V at 250MHz
4. 3.5in : 3.5in IPS display with , screen display bandwidth is 160kHz, and support zoom display
5. Transmit CAT, IQ and Audio: The mode includes two EC11 pulse encoders and capacitive . Connect to the computer via USB, can transmit CAT, IQ and audio
6. Improve Receiver Dynamic Range: Built in LNA is used to improve the dynamic range of the receiver, and an expansion board is designed to improve the shortwave HF band. The board will be built into the receiver
7. Variable Filter Width: Possess variable filter width, used as adaptive noise threshold noise noise blanker, AGC, equalizer, support UHF band
8. Support AM, , NFM, WFM, CW Demodulation: The processor core uses for STM32H743 with a main frequency of 480MHz, and support the analog modulations include AM, , NFM, WFM, CW

Spec:
Item Type: SDR Receiver
Material: PCB
Frequency Range: 50kHz-2GHz
RF Front End: for msi001
Battery Capacity: 2000mA/h
Battery Model: Lithium battery
Receiver Power Consumption: 300mA

Package List:
1 x SDR Receiver
1 x Antenna

Note:
The receiver is based on the SDR principle structure, and the function is determined by the loaded software.
