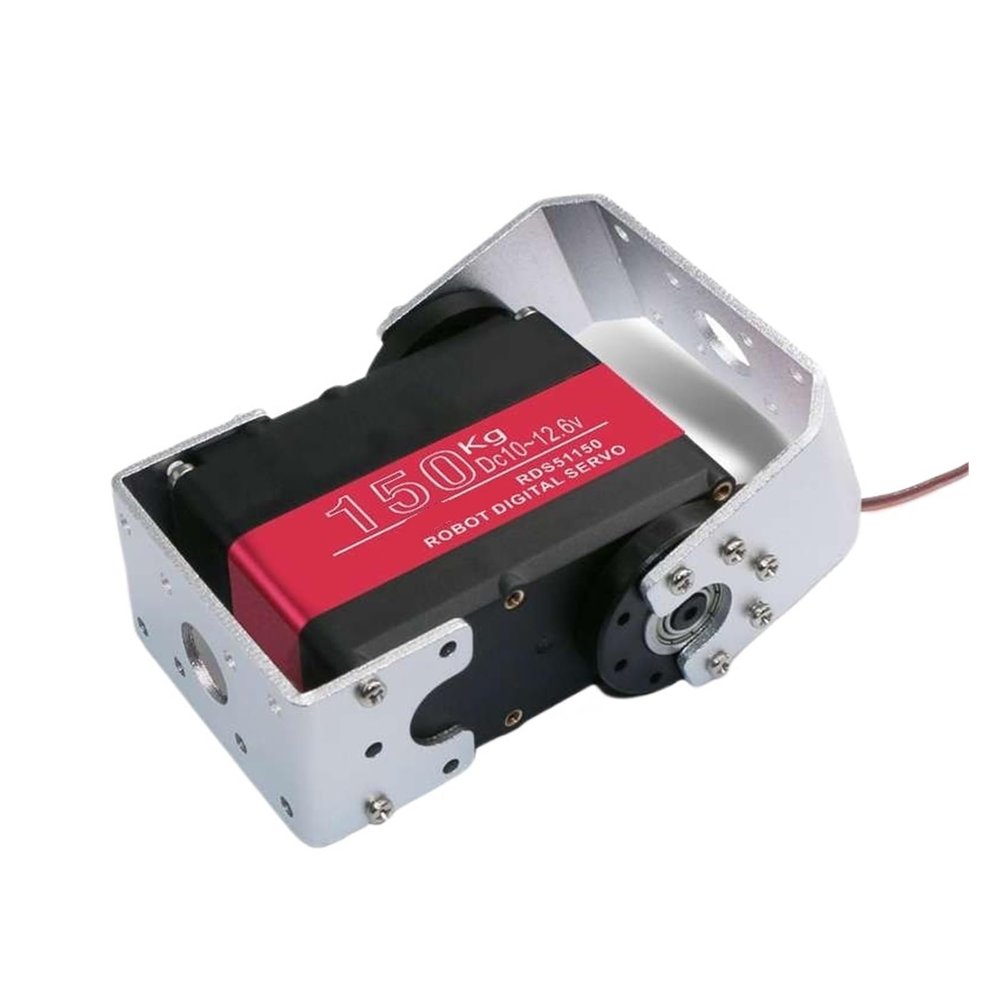

60/80/150KG 7.4V RDS5180 270 Digital Metal Servo Dual Axis Waterproof IP66 with U-Shaped Bracket(150KG 270)

Description

• Servo Horns

Servo Horns
150KG Specifications:
Dimensions: 52*30*65 (servo), 64*55.6*20 (metal bracket size)
Weight: 165 g Cable length: 320 mm
Speed: 0.24 sec/60 degrees (10v), 0.21 sec/60 degrees (12v)
0.19 seconds/60 degrees (12.6V)
Torque: 150kg.cm.at(10v), 165kg.cm.at(12v), 173kg.cm.at(12.6v)
Voltage: 10v-12.6v Dead zone setting: 3 microseconds
80KG Specifications:
Dimensions: 52*30*65 (servo), 64*55.6*20 (metal bracket size)
Weight: 165 g Cable length: 320 mm
Speed: 0.19 sec/60 degrees (6v), 0.17 sec/60 degrees (7.4v)
0.15 sec/60 degrees (8.4v)
Torque: 69kg.cm.at(6v),78kg.cm.at(7.4v),85kg.cm.at(8.4v)
Voltage: 6v-8.4v Dead zone setting: 3 microseconds
60KG Specifications:
Working voltage: 6.0-8.4 VDC
Stall current: 3.5A/5A/6.2A (6.0V/7.4V/8.4V)
Torque: 58kg.cm (6.0V), 65kg.cm (7.4V), 70kg.cm (8.4V)
Speed: 0.17 sec/60 (6.0V), 0.15 sec/60 (7.4V), 0.13 sec/60 (8.4V)
Pulse: 500-2500us
Frequency: 50-333Hz
Dead zone: 3us
Neutral position: 1500us
Control: PWM
Rotation: 180/270 counterclockwise; Number of teeth: 25T
Size: 60*30*48 mm (servo); Cable length: 300 mm
Package Included::
1 * RDS5 Digital Metal Server;
1 * Long U-shaped metal bracket;
1 * short U-shaped metal bracket;
2 * Metal discs
1 x Accessories
The server has three wires: red wire is positive, brown wire is negative, and orange wire is signal.
