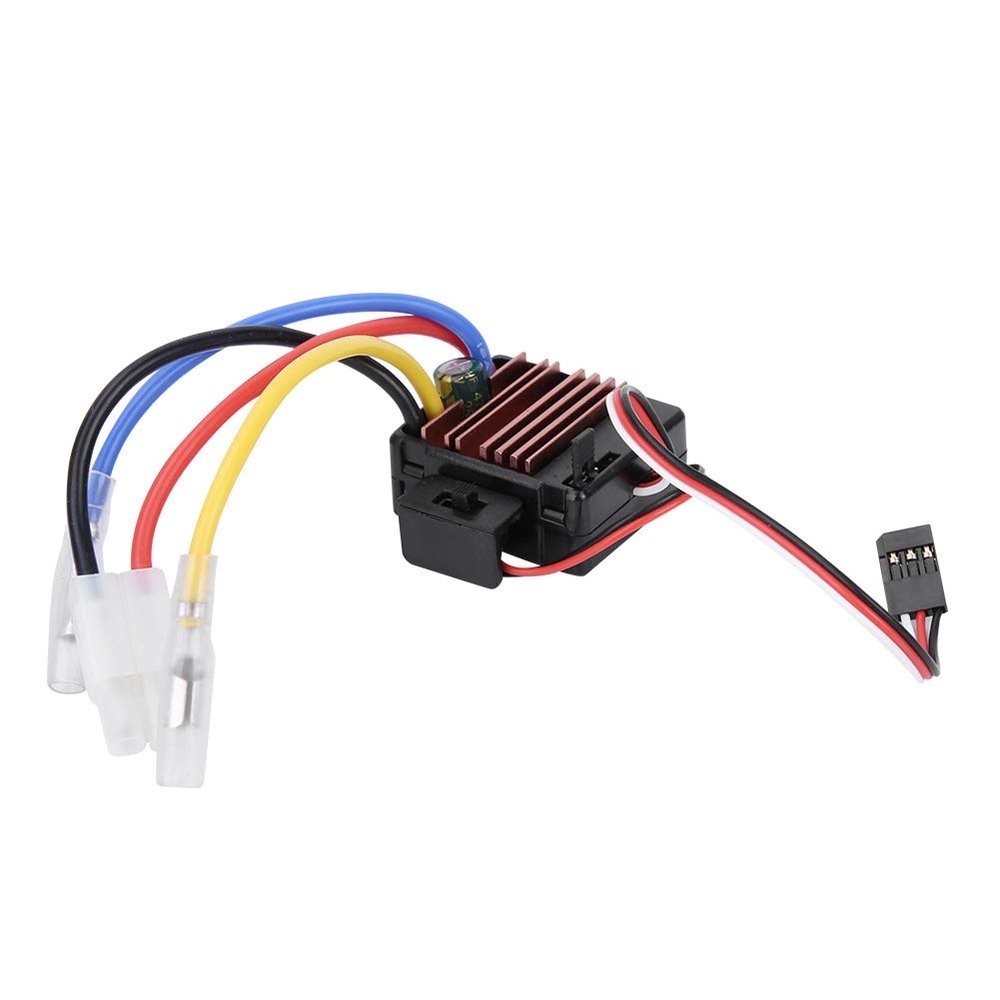

Acouto 60A RC Brushed Electronic Speed Controller for Remote Control Car Accessory Car Model Brushless ESC 1060

Description

• 1060 With strong current performance , excellent heat dissipation
• ESC Specially designed for RC car with excellent start - up , acceleration and linearity features
• esc With multiple features like low voltage - off for lithium or battery / over - heat / throttle loss
• 1060 esc Compatible with brush motor , very convenient
• brushed esc Easy to program and compatible with pocket - sized program card

Features :
1 . Specially designed for RC car with excellent start - up , acceleration and linearity features .
2 . Compatible with brush motor , very convenient .
3 . With strong current performance , excellent heat dissipation .
4 . With multiple features like low voltage - off for lithium or battery / over - heat / throttle loss .
5 . Easy to program and compatible with pocket - sized program card .

Specification :
Cont . Current / Burst Current : 60A / 320A
Motor Type : Brushed motor
Suitable Car : 1 / 10
Battery : 2 - 3 cells . 4 - 9 cells NiMH
BEC : 5V / 2A ( switch mode )

Package list :
1 * Electronic Speed Controller

Instructions :
1 . Connect BEC wires with the receiver .
2 . Connect motor wires with ESC .
3 . Turn on the transmitter .
4 . Connect battery pack with ESC then switch on the ESC .
5 . When the connection of motor and battery is finished , the motor re - emits Beep .
6 . When the throttle stick is in the neutral position , the motor re - emits Beep .
7 . The ESC is .

Troubleshooting :
1 . If motor can't work after power on , and no sound is emitted , please check the connections between battery pack and motor .
2 . If the motor emits a Beep only , please check all the connections : BEC wires , transmitter and receiver , throttle signal wires , etc . Please check the transmitter TH . TRIM and adjust it to the motor re - emits Beep .
3 . If the car can't be speed up , please check either voltage of the battery pack is too low or the temperature of ESC is too high . If the voltage of the battery pack is too low , please replace the battery pack . If the temperature of ESC is too high , please check all connections . If not , please push the EPA
