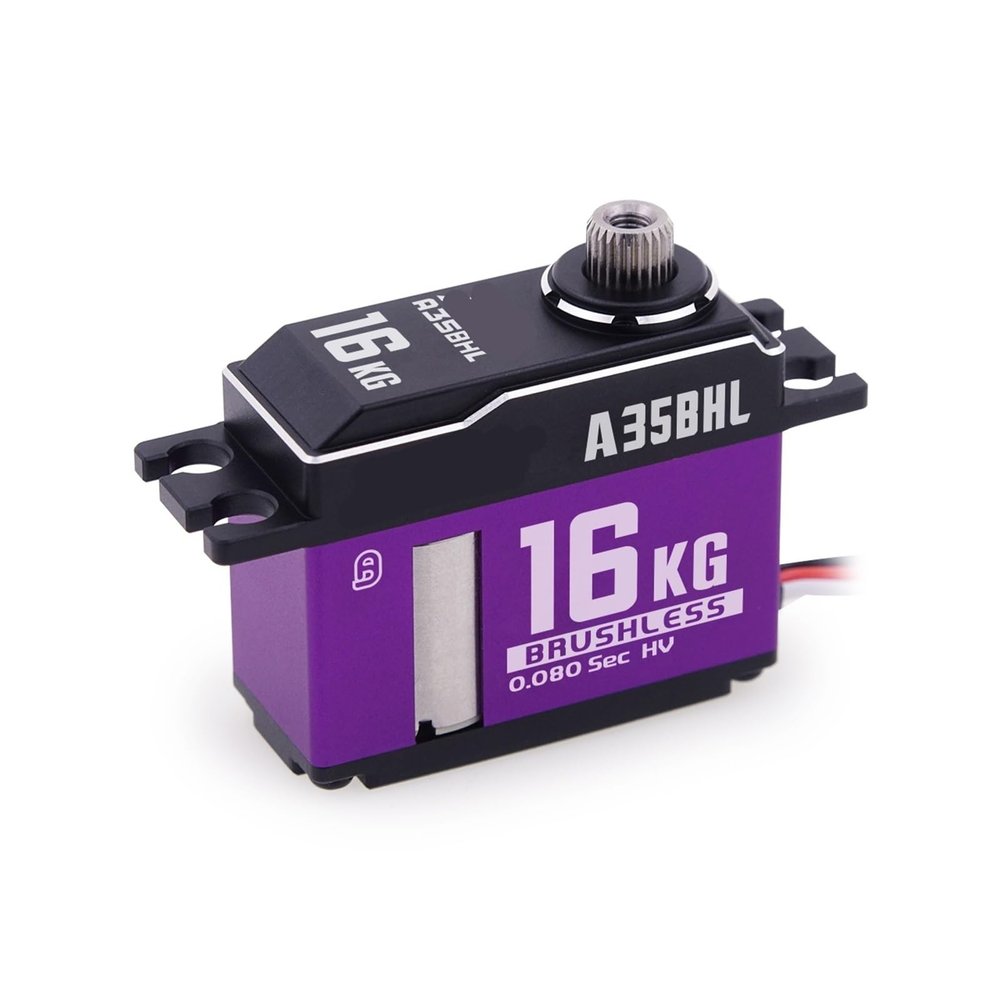

A35BHL A35CHM A35BHM 16KG 12.5KG 8.5KG High Torque Speed HV Programmable Brushless Coreless Servo(A35BHL 16kg Servo)

Description

• Servo Gears

Servo Gears
Specification
A35BHL
Operating voltage: 4.8-8.4 V
Operation speed: 0.110 sec/60@6.0V
Operation speed: 0.090 sec/60@7.4V
Operation speed: 0.080 sec/60@8.4V
Stall Torque: 12 kg-cm (167 oz-in) @ 6.0V
Stall Torque: 15 kg-cm (208 oz-in) @ 7.4V
Stall Torque: 16 kg-cm (222 oz-in) @ 8.4V
Equipment: Steel
Motor: Brushless
Dimensions: 35.5*15*29.2 mm (1.39 x 0.59 x 1.14 in)
Weight: 45g
Connecting wire: JR 180 mm
Airbus A35
Operating voltage: 4.8-8.4 V
Operation speed: 0.125 sec/60@6.0V
Operation speed: 0.095 seconds/60@7.4V
Operation speed: 0.085 sec/60@8.4V
Stall Torque: 10.5 kg-cm (146 oz-in) @ 6.0V
Stall Torque: 11.5 kg-cm (160 oz-in) @ 7.4V
Stall Torque: 12.5 kg-cm (173 oz-in) @ 8.4V
Equipment:
Engine: CLS
Dimensions: 35.5*15*29.2 mm (1.39 x 0.59 x 1.14 in)
Weight: 41 g
Connecting wire: JR 180 mm
A35BHM
Operating voltage: 4.8-8.4 V
Operation speed: 0.080 sec/60@6.0V
Operation speed: 0.072 sec/60@7.4V
Operation speed: 0.065 sec/60@8.4V
Stall Torque: 6.5 kg-cm (90 oz-in) @ 6.0V
Stall Torque: 7.5 kg-cm (104 oz-in) @ 7.4V
Stall Torque: 8.5 kg-cm (118 oz-in) @ 8.4V
Equipment:
Motor: BLS
Dimensions: 35.5*15*29.2 mm (1.39 x 0.59 x 1.14 in)
Weight: 41 g
Connecting wire: JR 180 mm
