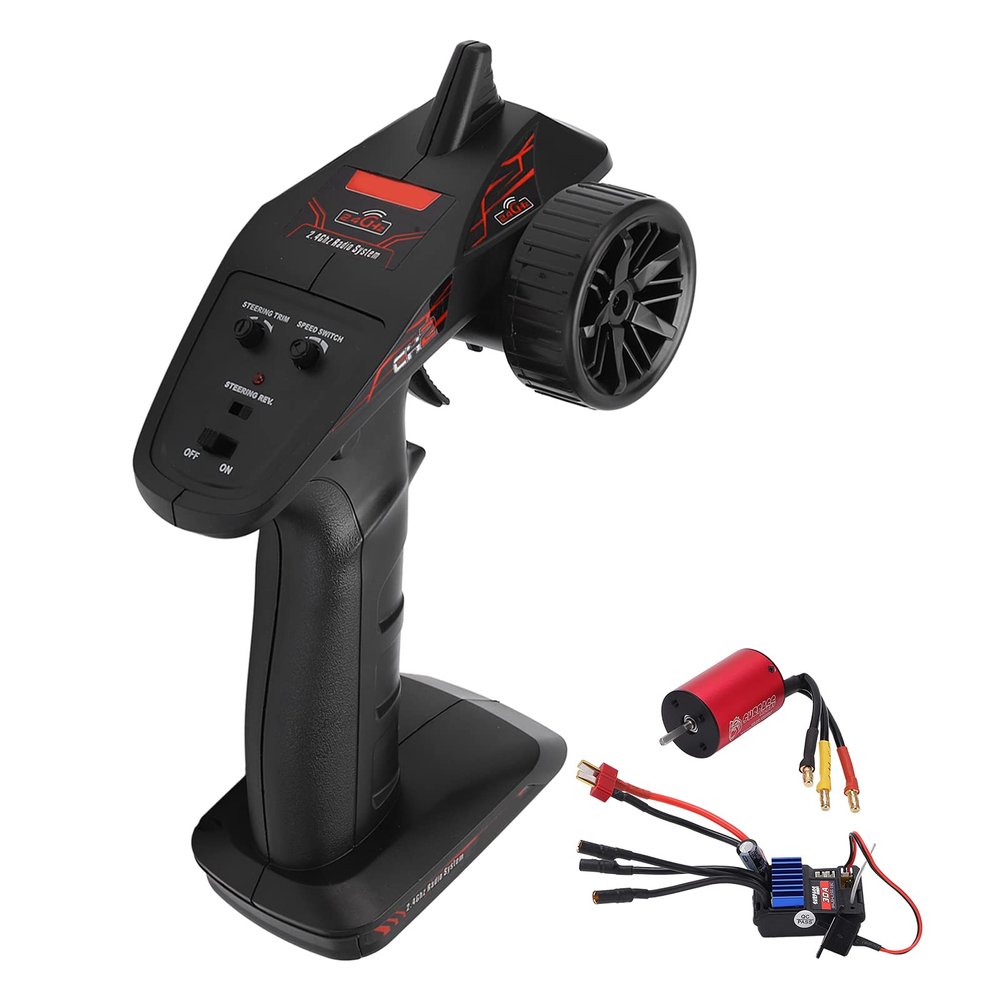

Alomejor RC Car Transmitter Receiver, 2.4G CH2 Radio Remote Controller with 2838 3600KV Brushless Motor and 30A 2 in 1 ESC for RC Car Boat Truck

Description

• HIGH POWER CONVERSION: Motor adopts precision waterproof design, and 4 pole 12 slot high torque motor design, can realize the maximum power conversion.
• FINE WORKMANSHIP: CNC machine tool, processing steel billet, 6061 aluminum cooling fin, secondary oxidation treatment, high end and fine appearance.
• GOOD PERFORMANCE: High rotation speed ABEC5 super durable sealed bearing, low friction, low noise, high accuracy, making the use of more durable. Adopt precise balance rotor to make smoothness best and speed maximum. Ultra thin stator lamination (0.35mm), easy to remove and replace.
• WIDE APPLICATIONS: General purpose, suitable for 1/14, 1/16 brushless cars, and used together with M3 screws.
• GUARANTEE: If you are not satisfied with our product you received, you can send emails to us at any time. We will reply you instantly and help you solve your problem.

How to Use:
1. Turn on the remote control switch, and the power indicator blinks.
2. Connect the power cable, turn on the electric switch, start the automatic frequency matching, power lamp stop flashing.
3. Turn the steering wheel and the trigger, and it works as long as everything works.
4. Complete the steps, turn off the electricity and radio, and unplug the power.

Specification:
Item Type: RC 2.4G CH2 Transmitter Receiver Set
Weight: Approx.349g / 12.3oz
Material: Plastic + Electronic Components + Copper
Color: Red Black
2838 Motor:
KV(RPM/Volt): 3600KV
Power: 600W
Maximum Speed: 50000
Maximum Voltage: 14V
Maximum Current: 43A
Rotor Poles: 4 Pole
Resistance: 0.0415
Diameter: Approx.28mm / 1.1in
Length: Approx.38mm / 1.5in (Shaft Not Included)
Shaft Diameter: Approx.3.175mm / 0.1in
Shaft Length: Approx.15mm / 0.6in
Connector: Approx.3.5mm / 0.1in
Remote Control Battery: 2pcs 1.5 AA Battery (Purchased Separately)
Remote Control Frequency: 2.4G/CH2
Remote Control Distance: Approx.100m / 109.4yd
ESC Size: Approx.41 x 30 x 11mm / 1.6 x 1.2 x 0.4in
Continuous Current: 30A
ESC Plug: T Plug
Applicability: Suitable For 1/14, 1/16 Brushless Cars

Package List:
1 x CH2 Remote Control
1 x 2838 Brushless Motor
1 x 30A ESC
1 x Manual

Note:
1. Please allow 01 inch error due to manual measurement. Thanks for your understanding.
2. Display calibration is inconsistent, and the colors of the items displayed in the photos may be slightly different from the actual objects.
3. 2 channel remote control factory automatic frequency adjustment, 2 in 1 30A electric adjustment BEC built in, can supply power for steering gear and lamp group. AUX is a 3 channel switch, which can control the lamp group.
