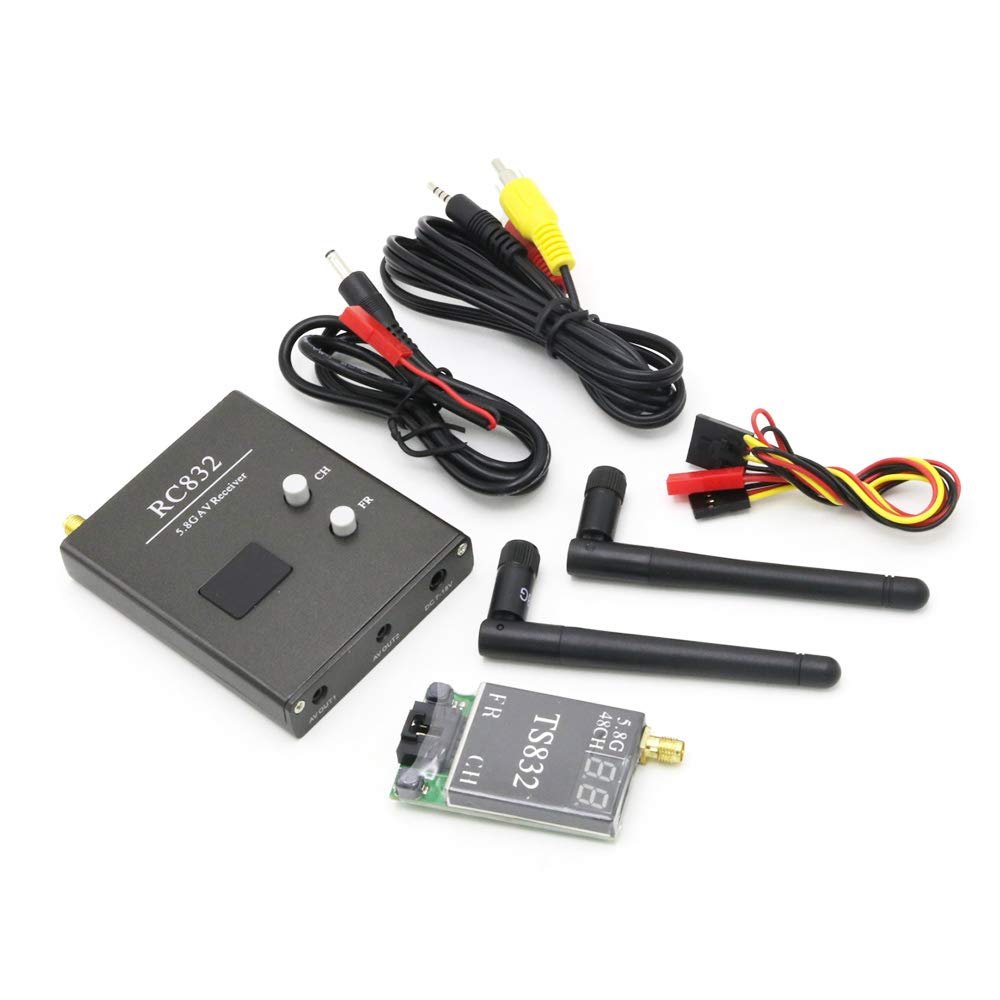

Ancalos RC832 5.8G 600mW 48CH Audio Video Receiver TS832 Audio Video Transmitter ForRC Model Airplane FPV Drones DIY - (Color: RC832 TS832)

Description

• Color: RC832 TS832
• Quantity: 1 pcs
• Wheelbase: Screws
• Technical parameters: Value 2
• Model number: TS832 Audio Video Transmitter

48 channels: Cover A, B, E bands and F band (Airwave band), 4 bands and all
frequencies compactable.
Two switching buttons: CH button Forfrequencies
channels switching, FR button Forfrequencies bands switching.
Two digits
display: one ForCH and the other ForFR, real-time positioning which frequency
band and which channel received.
Power off memory: Replay the very last
frequency band and channel
Independent video and audio signal
outputs
Product Details
FPV 5.8G 600mW A/V Transmitting/Receiving
System TS832 + RC832 - 32CH Edition | RP-SMA video format supported:
NTSC/PAL
Antenna connection: RP-SMA, jack (module side, both TX and
RX)
TX TS832 specs:
Power input: 7.4-16V (3S Lipo
suggested)
Transmitting power: 600mA
Antenna gain: 2db
Working current:
220mA at 12V
Video bandwidth: 8M
Audio bandwidth : 6.5M
Weight:
22g
Dimension: 54x 32x 10mm(excluding antenna)
RX RC832
Specs:
Power input: 12V
Working current: 200mA max
Antenna
impedance: 50
Antenna gain: 2db
Video impedance: 75
Video format:
NTSC/PAL auto
Dimension: 80x 65 x15mm
Weight: 85g
Note: TX
antenna must be installed properly before it is switched on, power on without
install antenna, or a improper antenna was used may easily burn the TX, and such
damage is not covered by warranty.
- 1 x transmitting unit
(TX)
- 1 x receiver (RX)
- 2 x antennas (2db)
- 1 x Power cable for
rc832
- 1 x power cable Fortx832
- 1 x user manual
Item specifics:
Quantity: 1 pcs
Wheelbase: Screws
Technical parameters: Value 2
Model number: TS832 Audio Video Transmitter
Forvehicle type: Airplanes
Tool supplies: Assembled class
Four-wheel drive attributes: Receiver
Remote control peripherals/devices: Audio Video Receiver
Upgrade parts/accessories: Adapter
Rc parts & a
