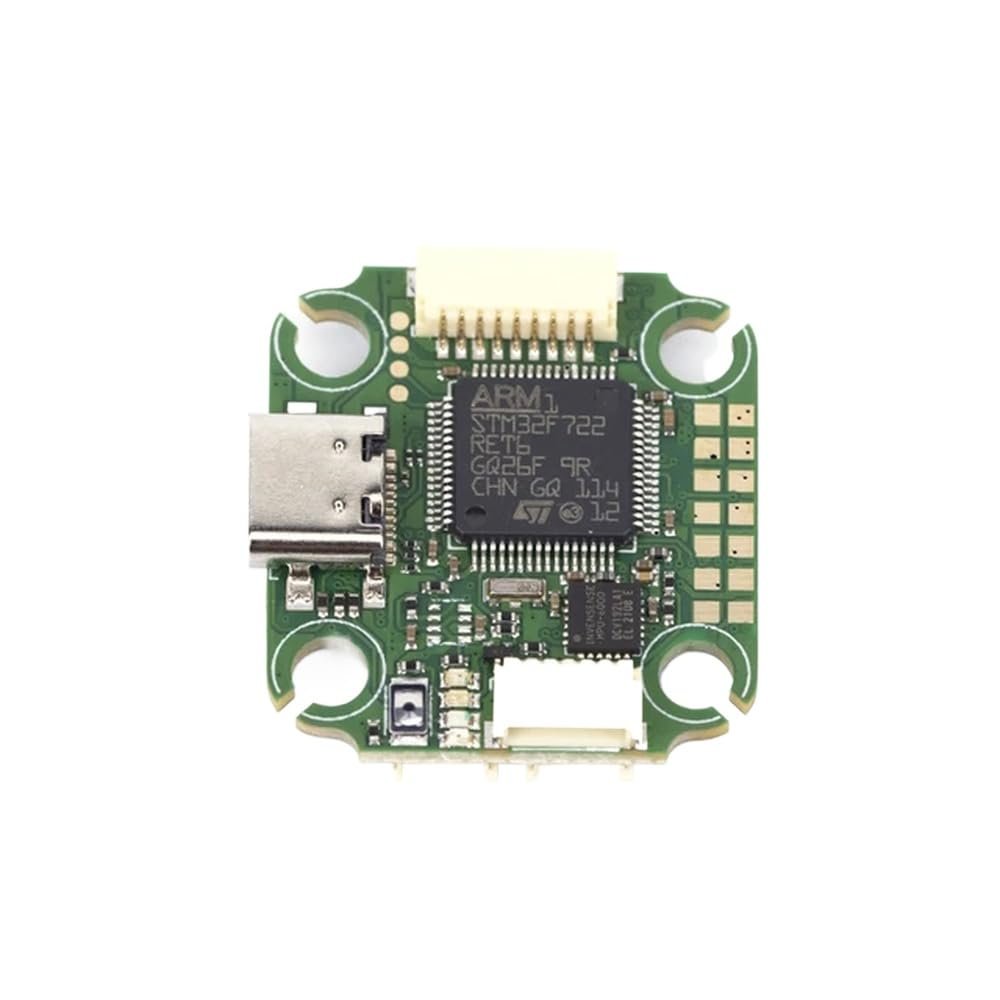

BLITZ F7 Stack With BLITZ F7 V1.1 Flight Controller And BLITZ E55 4-IN-1 2-6S 32bit ESC Compatible With Drone Parts(F7 mini FC)

Description

• Model: BLITZ F7 Stack includes F7 Flight Controller and E55 4-in-1 ESC.
• Compatibility: Ideal Compatible with applications, supporting 2-6S configurations.
• Performance: Features a powerful 32-bit processor Compatible with enhanced flight control capabilities.
• Efficiency: Designed Compatible with low latency and fast response, ensuring smooth flying experiences.
• Versatility: Suitable Compatible with a wide range of setups, catering to enthusiasts and professionals alike.

Features:
Improved design, better components and lower electrical noise
HD VTX Connector (Plug-and-Play / No soldering required)
FC indicator LEDs Compatible with visual debugging
Changelog:
Version updated to V1.1 / Gyro changed to BMI270 due to availability & price issues with MPU6000
Specifications:
MCU: STM32 F722
Gyro: BMI270
Barometer: DPS310
OSD Chip: AT7456
Flash: 16MB (Blackbox flash)
UARTS: 6
Motor outputs: 4x (SH1.0 connector)
I2C serial: SDA / SLA pads
Smartaudio / IRC Tramp VTX protocol supported
controller: Yes
Beeper pad: Yes
Firmware target: IFRC-IFLIGHT_BLITZ_F722
Mount pattern: 20x20 mm / 4mm PCB hole diameter, silicon grommets Compatible with M3 screws
Dimensions: 30.5x27 mm
Weight: 5g
Wiring suggestion:
UART 1 Compatible with VTX HD / Analog
UART 2 Compatible with a Receiver
UART 3/4/5 Compatible with GPS or other sensors that require a serial port
UART 6 Compatible with ESC Telemetry
ESC // BLITZ E55 4-IN-1 2-6S ESC
Specification:
Dimension: 35*42mm
Mounting holes: 20*20mm/4mm
Weight: 11.3g
Supports 2-6S LIPO input
MCU: G071
Constant: 55 Amps
Burst: 60 Amps
Current sensor: Yes
BEC: No
Current rate: 100
Supports: DSHOT DSHOT150/300/600/MULTISHOT/ONESHOT
Firmware: BLHELI 32
Target: IFLIGHT_BLITZ_G1
Package included:
1pc x BLITZ F7 V1.1 Flight Controller
1pc x BLITZ E55 4-IN-1 2-6S ESC
1set x silicon grommets
1set x wire harness Compatible with F7 Flight controller
