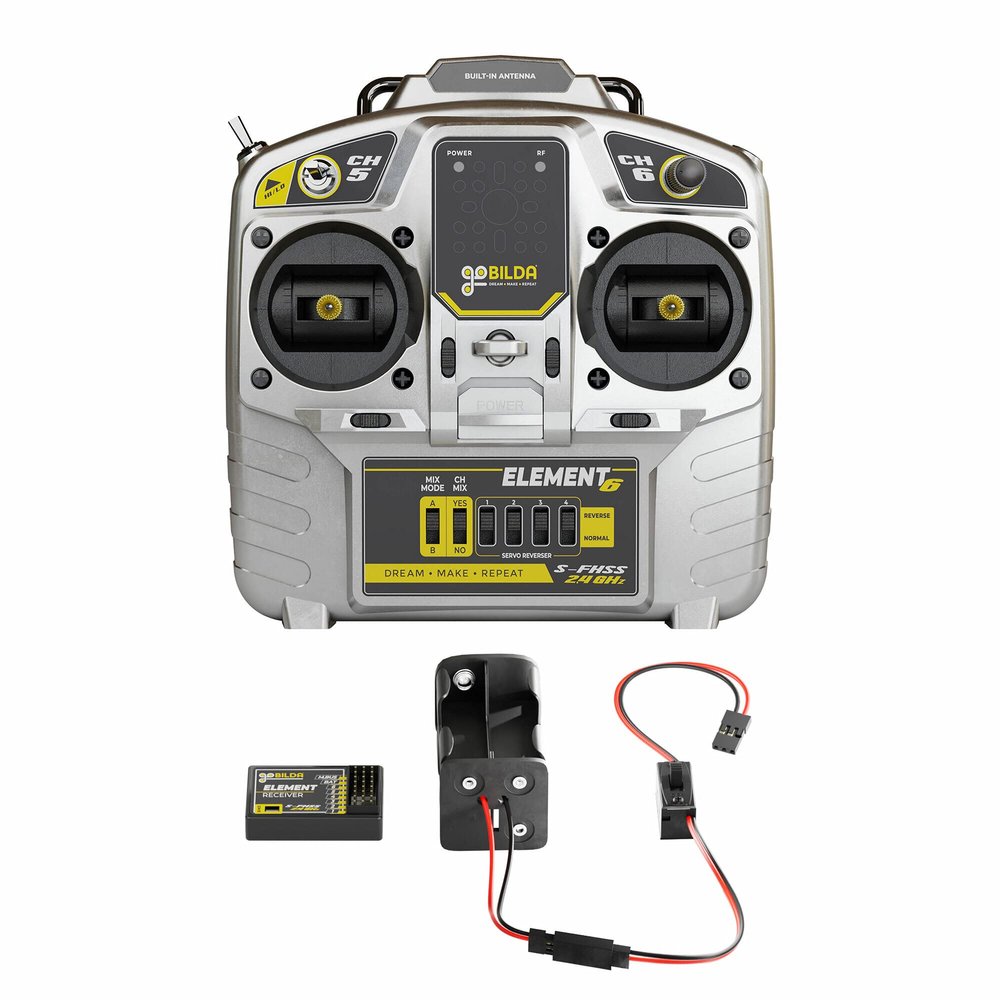

Element-6 Radio Control System (Mode 2)

Description

• Radio Wave Power: 70mW
• Radio Frequency: 2.401 - 2.479GHz
• Range: Up to 800 Meters (2625 Feet) with direct line of sight.
• Receiver Input Voltage: 6V nominal (3.5-7.4V)
• Receiver Channels: 7 PWM channels, 1 M.Bus Port

The goBILDA Element 6 Radio Control System has 6 channels to control your project from afar. Channels 1-4 provide proportional control from the gimbals (joysticks). Built-in channel mixing and reversing allows you to easily configure this radio system to control a robot chassis to your liking. The fifth channel is a switch to send three pre-established signals which can be used to control lights, switches, relays or a servo that you want to send to three specific positions. Channel 6 is a proportional knob, useful to dial-in and stay at a particular brightness, speed, or position. This radio system operates at 2.4GHz, and the transmitter is setup as Mode 2. The mode refers to the physical setup of the gimbals. In Mode 2, the left gimbals Y (vertical) axis stays where you set it, while the right gimbals Y axis returns to center when released. The transmitter requires four AA batteries (not included).
