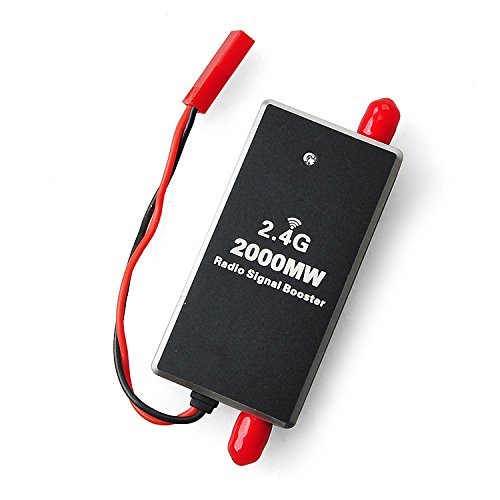

FEICHAO FPV 2.4G 2W 2000mW Mini Radio Signal Booster Amplifier Module Compatible for DJI Phantom RC Transmitter FPV Extend Range

Description

• Designed for FPV, especially compatible for DJI Phantom, with small size, light weight, and heat dissipation.
• Using a wide input voltage design, 5V-15 input can be.
• Can either use an external power supply, or use the power supply come with transmitter .
• CNC manufactured using aluminum alloy shell,play a good cooling effect,also play excellent shielding function.Working fever is a normal phenomenon.
• Input connector: RP-SMA Female, Output SMA Female. Only after connecting the remote control, the blue LED will light.

FEICHAO FPV 2.4G 2W 2000mW Mini Radio Signal Booster Amplifier Module Compatible for DJI Phantom RC Transmitter FPV Extend Range

Description:
Item Name: 2.4G 2W Signal Booster
Material :CNC aluminum
Input Voltage: 5V-15V
Transmitter Gain: 11dB 1.5dB
Noise Figure: ?3.0dB
Input power range: 4dBm-20dBm
Max output power: 33dBm(2W)
Operation Voltage: 5V-15V
Operation Current: ?400ma

Working indicator: Blue
Input connector: RP-SMA Female (Outer thread - inner hole)
Output connector: SMA Female (Outer thread- inner pin)
Size: 62*32*10mm (without antenna,mount and power cable)
Weight: 36G (without antenna)

Features:
Users can either use an external power supply, also can use the power supply come with transmitter .
CNC manufactured using aluminum alloy shell,play a good cooling effect,also play excellent shielding function.
Decrease interference

Note:
Working fever is a normal phenomenon, users do not worry.
Please assemble the antenna before powering on.
User may need to solder the signal booster to original transmitter module.
The product will require DIY modify skills and relative knowldge. Please confirm before purchasing.

Instructions:
The amplifier input through SMA high-frequency line accessing to remote control high-frequency output connectors or solder line inside remote control, the center stage is high-frequency signal, around is negative.
The amplifier output termination accessing to antenna, then connect the power input .

Package Included:
1 x 2.4G 2W Signal Booster
1 x Antenna
1 x Power Cable
1 x Connecting Cable
