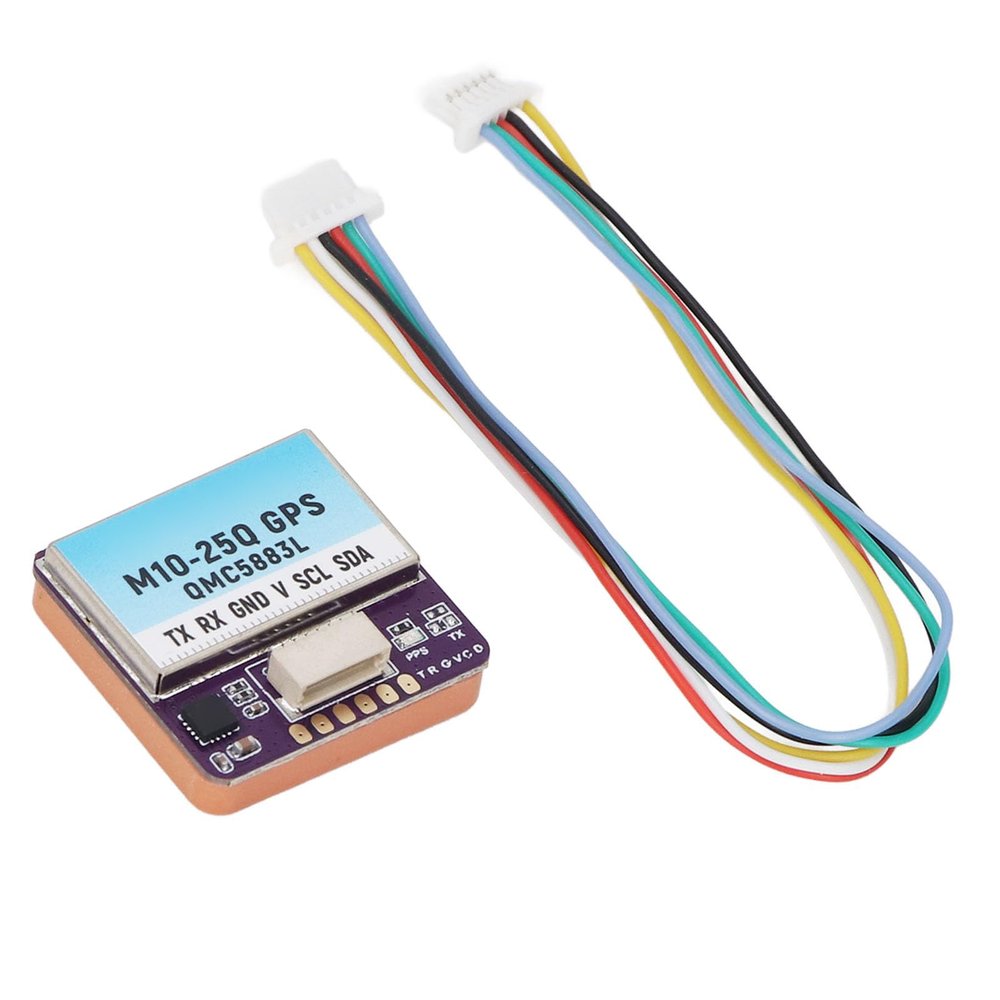

FPV Racing Drone Antenna with QMC5883L Compass Double Output 10Hz Fast Locating Ceramic M10-25Q

Description

• High-Performance Chip: Features the 10th generation M10 chip with integrated QMC5883L compass, dual output protocols, 10Hz frequency, low power consumption, and rapid location acquisition
• Premium Ceramic Antenna: Equipped with a high-efficiency ceramic antenna for strong signal stability, 72 search channels, and wide application compatibility
• Compact and Easy Install: Designed with a compact structure for straightforward installation on any FPV racing drone, fitting various sizes seamlessly
• Flexible Connectivity: Supports both direct plug-in via SH1.0-6P socket and soldering pad options for versatile integration and strong compatibility
• Precision Tracking: Delivers 0.05m/s speed accuracy, 1.5m horizontal accuracy, and high sensitivity with -162dBm tracking and -160dBm acquisition

Spec:
Item Type: Module
Model: M10-25Q
Chip: For M10
Frequency: L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1
Power Supply: 5V
Product Size: Approx. 25 x 25 x 8mm / 1 x 1 x 0.3in
Interface: SH1.0-6P Socket, PCB Solder Pad
Antenna: Ceramic Antenna
Receiving Channels: 72 Search Channels
Baud Rate: 115200
Output Protocol: for NMEA, for protocol
Compass: For QMC5883L
Output Frequency: 1Hz-10Hz, Default 10Hz
Speed Accuracy: 0.05m/s
Horizontal Locating Accuracy: 2D ACC1.5m ()
Receiving Sensitivity: Tracking -162dBm, Acquisition -160dBm
Working Temperature: -40-85
Storage Temperature: -40-105

Package List:
1 x Module
1 x Connecting Cable

How To Use:
Match the appropriate model type before using
