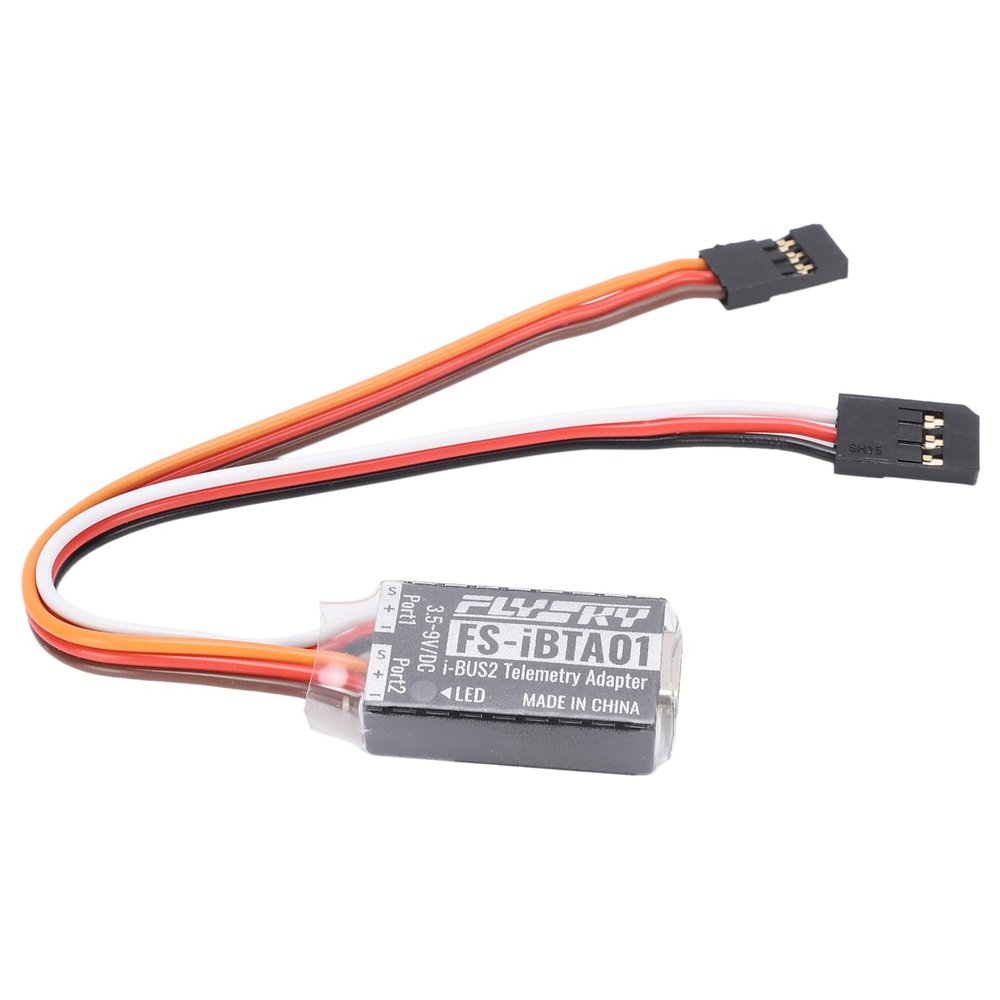

GoolRC Flysky FS-iBTA01 i-BUS2 Telemetry Adapter 3.5-9V/DC for i-BUS2 Protocol Series Receivers Supported 512M~8G Memory Cards

Description

• Supporting Full Parameter Feedback: Deeply fit for Hobbywing high-end ESCs (such as XR8 Pro, XR10 Pro, and Platinum V5), the FS-iBTA01 supports feedback on more than 10 key parameters, including voltage, current, RPM, and temperature, allowing you to monitor your model's status anytime.
• Full-Process Data Logging: The black box function automatically records channel control data (BC files) and device feedback data (BD files). Key information such as motor temperature and RPM is fully saved, providing a reliable basis for troubleshooting and enabling more precise adjustments.
• Multi-Data Integration for Holistic Control: The iBTA01 integrates multiple data sources in one unit, including ESC and receiver feedback. Key parameters such as voltage, current, and temperature are displayed directly on the remote control interface, giving you comprehensive control of your model's status.
• Plug-and-Play, Dual-Port Direct Connection, Effortless Operation: Connect in two simple steps: Port 1: connect to the receiver (Newport port). Port 2: connect to the ESC programming port. No extra configuration needed. Ready to use upon power-on!
• Smart Storage, Automatic Data Cycling: When the SD card is full, old data is automatically overwritten no manual cleanup required. Supports direct USB Type-C connection to your computer for data access.

Professional-Grade Data Tracking, Millisecond-Level Precision: Control data (BC? files): captures control commands 50 times per second for precise analysis of response accuracy. Device feedback (BD files): Captures ESC parameters in real time, supporting third-party tools for in-depth performance curve analysis.

Specification:
Item Type: Telemetry Adapter
Material: PCB, Electronic Components
Compatible Receivers: i-BUS2 protocol series receivers
Compatible Devices: ESCs with real-time data recording capabilities and program port, such as XR8Pro, XR8plus, XR10 PRO, MAX10 G2, Platinum V4 60A, 80A, 120A, Platinum V5 260A, etc.
Supported Memory Cards: 512M~8G
Operating Voltage: 3.5~9V/DC
Temperature: -10C~+60C
Humidity: 20%~95%
Firmware Update: Supported
Product Size: Approx. 2.8*1.5*0.6cm/1.1*0.59*0.24in
Package Size: Approx. 8*6*3cm/3.15*2.36*1.18in
Package Weight: 62g/0.14lb

How to Use: Replace the receiver? in your vehicle/aircraft by following the steps in the instruction manual.

Packing List:
1 x Receiver?
1 x Adhesive Tape
1 x Plastic Protective Case
2 x Stickers
1 x User Manual
1 x Plastic Storage Case

Note: The ESC models? compatible with this receiver? include: XR8Pro, XR8plus, XR10 PRO, ?>MAX10? G2?, Platinum? V4 60A, 80A, 120A, Platinum? V5 260A, etc.
