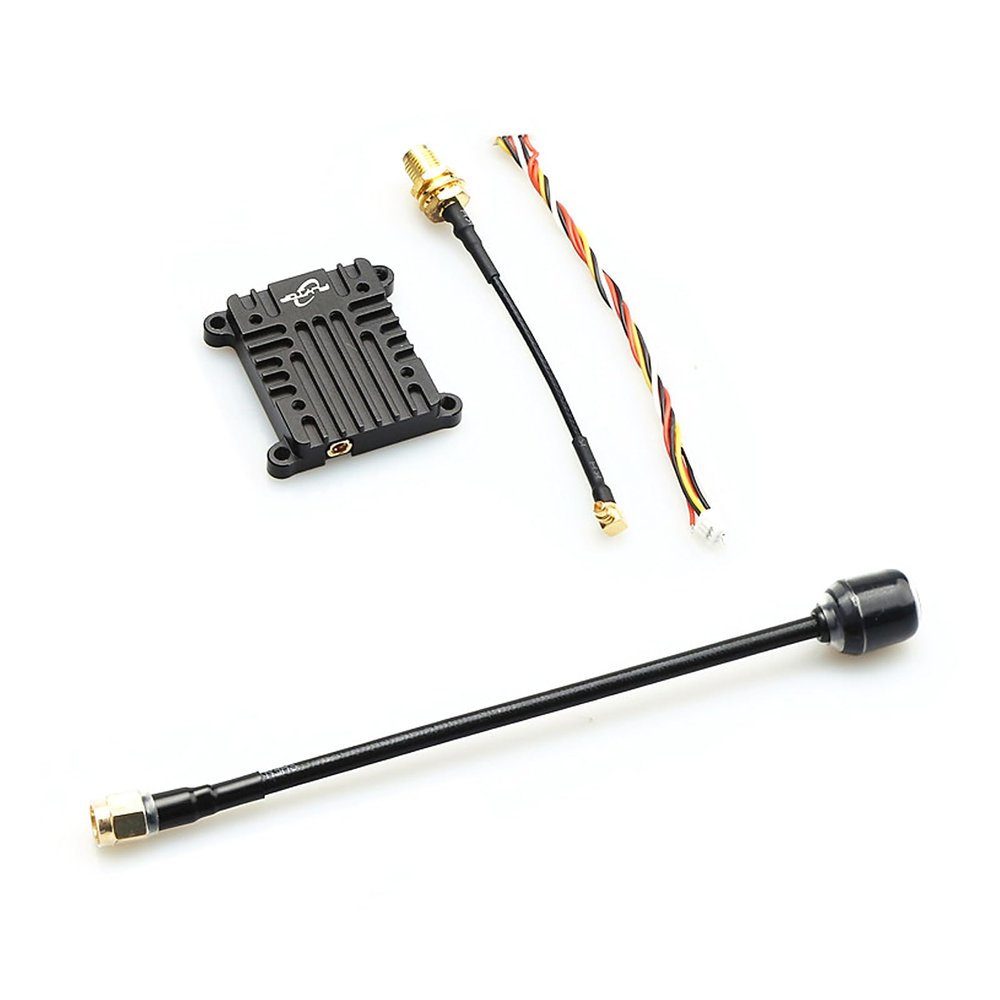

Goolsky 2.5W 4.9G 5.8G High Power VTX FPV Aircraft Model Image Transmission Module 56CH with Antenna, Strong Signal for FPV Activities, Versatile Frequency Options (Type 2)

Description

• The VTX offers a powerful transmission capability, ensuring strong and video signals for your FPV aircraft activities.
• Adjustable frequencies of 4.9G and 5.8G allow users to choose the optimal channel for their specific environment.
• Adjustable output power levels of 0-25-400-800-1500-2500MW ensure optimal signal transmission for various FPV scenarios.
• 56 channels (A-B-E-F-R-X-L), provide versatile frequency options.
• Featuring key/OSD tuning modes, users can easily adjust settings without the hassle.

Specification:
Frequency: 4.9g/5.8 G (adjustable)
Output power: 0-25-400-800-1500-2500MW
Input voltage: 6-36v
Tuning Mode: Key/OSD
Current: 450mA@12v, 800mw; 800mA@12v, 2500MW;
Output Frequency: 56CH (A-B-E-F-R-X-L)
Antenna interface: MMCX
Mounting hole location: 2*2cm/0.79*0.79inch; 3.05*3.05cm/1.2*1.2inch
Weight: 14.9g (without antenna and power cord)
Video format: NTSC/PAL automatic detection
Instructions and Precautions
1. Adjustment for Frequency and Power:
Frequency Control: Press the once briefly to switch between 1CH-8CH.
Frequency Group Control: Hold the for 3 seconds until the RF (frequency group) light starts flashing and all other lights turn off, indicating that you have entered the frequency group switching mode. Then, press the briefly to switch between frequencies A-L.
Power Control: Hold the for 6 seconds until the R (power) light starts flashing and all other lights turn off, indicating that you have entered the power adjustment mode. Then, press the briefly to switch between 25mW-2500mW.

PackageList:
1 * 2.5W 4.9G 5.8G High-Power VTX
1 * Antenna
