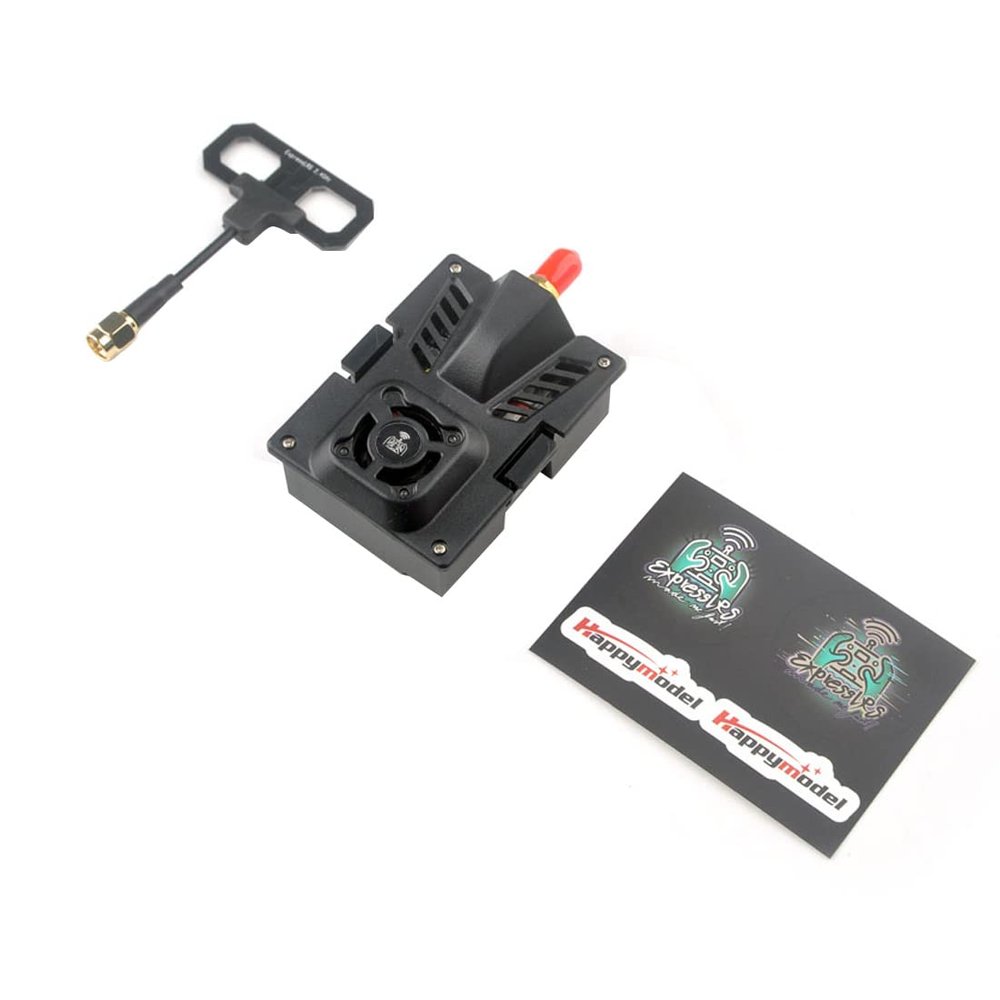

HAPPYMODEL ES24TX Pro 2-4G ExpressLRS ELRS Micro TX Module with Cooling Fan RGB LED Module for DIY RC Drone

Description

• Upgraded Version: This ES24TX Pro Module is the upgraded version of ELRS Micro TX Module, it`s plug and play.
• Upgraded Part: Max output up to 1000, reserved Cooling Fan and RGB LED module.
• Application: This Micro TX module support most of the OpenTX radio transmitter that with Micro JR bay.
• Customized Antenna: Happymodel 2-4G Moxon antenna, Antenna gain 4.18dBi.
• RF Output Power >30dBm, Receiver Refresh Rate 25 - 500, Power Supply Voltage: 5V~10V.

HAPPYMODEL ES24TX Pro ELRS Micro TX Module 2-4G 1000 Max Output with Cooling Fan RGB LED

The ES24TX Pro Micro ExpressLRS TX module is a upgrade version of ES24TX module.

Max output up to 1000, reserved Cooling Fan and RGB LED module.

This Micro TX module support most of the OpenTX radio transmitter that with Micro JR bay.

And this time the ES24TX Pro module comes completely assembled before out of factory.

Based on the open source- ExpressLRS, This module is a very popular low latency and high re-flashed rate RF module for RC Airplane and Racing.

Specifications:

Regulatory Domain: ISM2400

MCU:ESP32(main),ESP8285(aux,as espbackpack)

RF chip: SX1281IMLTRT

JR standard 5pin socket

Frequency Range: 2400 M to 2500 M

Maximum receive refresh rate: 500

Minimum receiver refresh rate: 25

RF Output Power: >30dBm

Power supply voltage: 5v~10v

Weight: 51gram(without antenna)

Dimension: 70mm*49mm*32.5mm

Antenna gain: 4.18dBi

Firmware target: HappyModel_ES24TX_Pro_Series_2400_TX

Package Include:

ES24TX Pro *1

Moxon antenna *1
