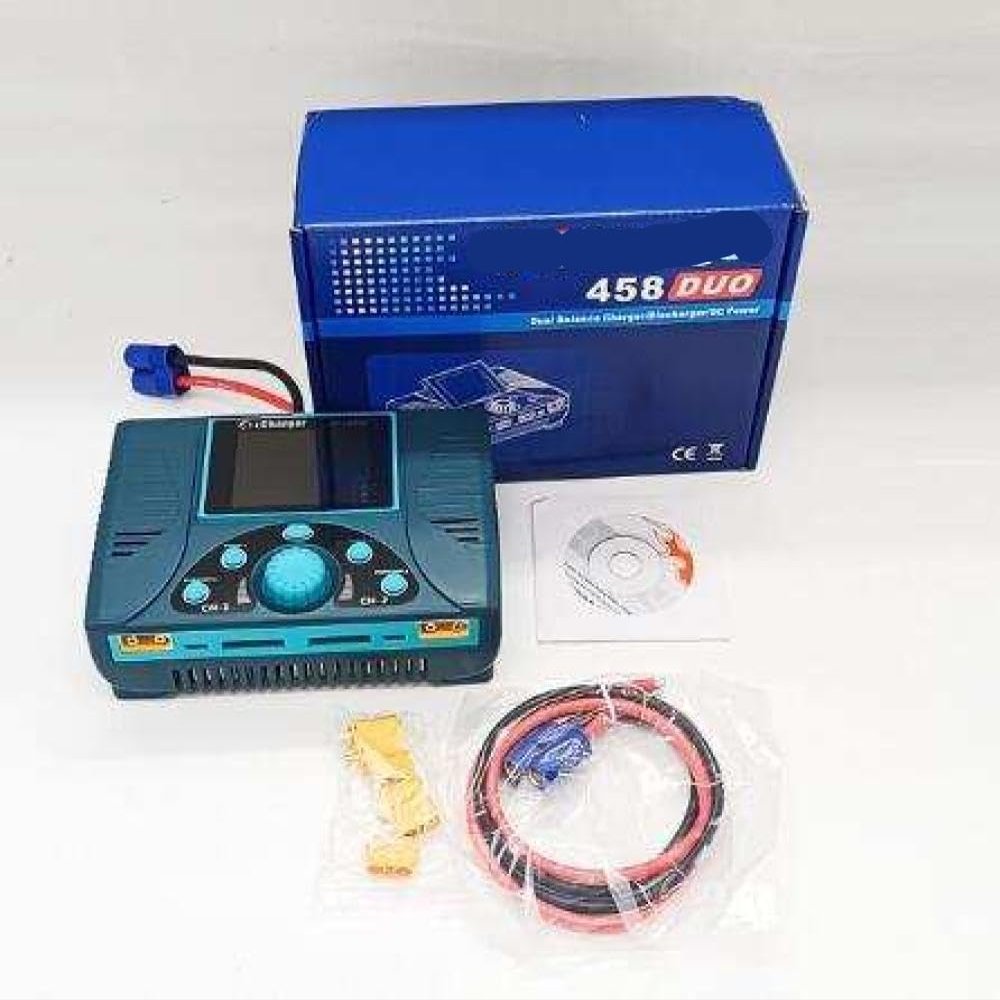

ICharger 458 Duo 1600W 45A Dual Port Balance Charger Discharger Compatible With 308 Upgrade Lipo Lilo Life Livh Lt Nizn Packs(Standard version)

Description

• The iCharger 458 Duo features dual-channel for simultaneous and discharging of multiple batteries
• With a powerful 1600W output and 45A current, this charger handles -capacity batteries efficiently
• Designed for 308 upgrade compatibility, it supports a wide range of types including LiPo, LiLo, LiFe, LiVH, LT, and NiZn
• Advanced balance technology ensures precise voltage distribution across each cell for performance
• The robust build quality and thermal management system provide reliable during extended use
• User-friendly interface with clear displays and intuitive controls simplifies setup and monitoring
• Ideal for hobbyists and professionals needing a versatile charger for various RC and industrial applications

Input voltage range:10-49VDC
Maximum output voltage:40VDC
Maximum input current limit:70A(Channel 50A x2)
Maximum charge/discharge current: 70A(Channel 45Ax2)
Maximum charge power: 2200W (Channel 1600Wx2)
Maximum discharge power: 140W (Channel 80Wx2)
Maximum recovery discharge power:2200W(Channel 1600Wx2)
Maximum extended discharge power:2200W(Channel 1600W @36V/45A)
Maximum balance current:4A(Channel 2Ax2)
TYPE-C PD port: support 5V/3A, 9V/2A, 12V/1.5A
Support type:LiPo, Lilo, LiFe, LiVH, LTO, NiZn, Pb
Device weight:930g
External dimensions:17111857 earth 0.5mm
Adopt advanced Synchronous buck-boost DCIDC converter technology, with power, current and conversion efficiency.
The maximum power is 2200W, the maximum channel and discharging current is 45A, and the maximum two-channel synchronous and discharging current is 70A.
Support 8 series of balance of LiPo, Lilo, LiFe, LiVH, Nizn and LTO (adopt unique internal resistance correction balance algorithm and the maximum balance current of 2A to ensure the fast and accurate completion of balance); Support 1-25 series nickel-metal hydride, nickel- ; Support 1-15 lead-acid.
Realize dual-channel adjustable digital power supply (with protection functions such as overcurrent, overvoltage, input undervoltage and input overcurrent).
With type-c PD port, it is convenient for users to charge mobile phones and tablets.
Intelligent fan control.
The fan speed is controlled by the internal temperature sensor.
Internal temperature protection.
If the internal temperature is greater than the attenuation temperature, the device automatically reduces the output power.
If the temperature is higher than the stop temperature, the machine will stop automatically.
The machine can save the parameter Settings of 64 groups of batteries, and support data import/export SD card.
2.8 "IPS full view color LCD display.
Displays abundant information such as current, voltage, quantity, power, internal resistance, control status, consumption time, and temperature.
A variety of discharge functions: this machine discharge, recovery to the input or another channel discharge, and lithium extended discharge function.
Supports offline and online measurement of internal resistance.
Not only the internal resistance of the whole pack can be measured, but also the internal resistance of each individual cell of the lithium pack.
Provide full protection.
Input or output reverse pole protection, input voltage/current protection, temperature protection, capacity protection, time protection, maximum power, etc.
It supports hardware program update via USB port or SD card, and can display, plot and analyze and discharging data through Junsi Console software.
Compatibility Disclaimer: This is an aftermarket replacement part.Any brand names or model designations mentioned are used solely for the purpose of demonstrating compatibility.
