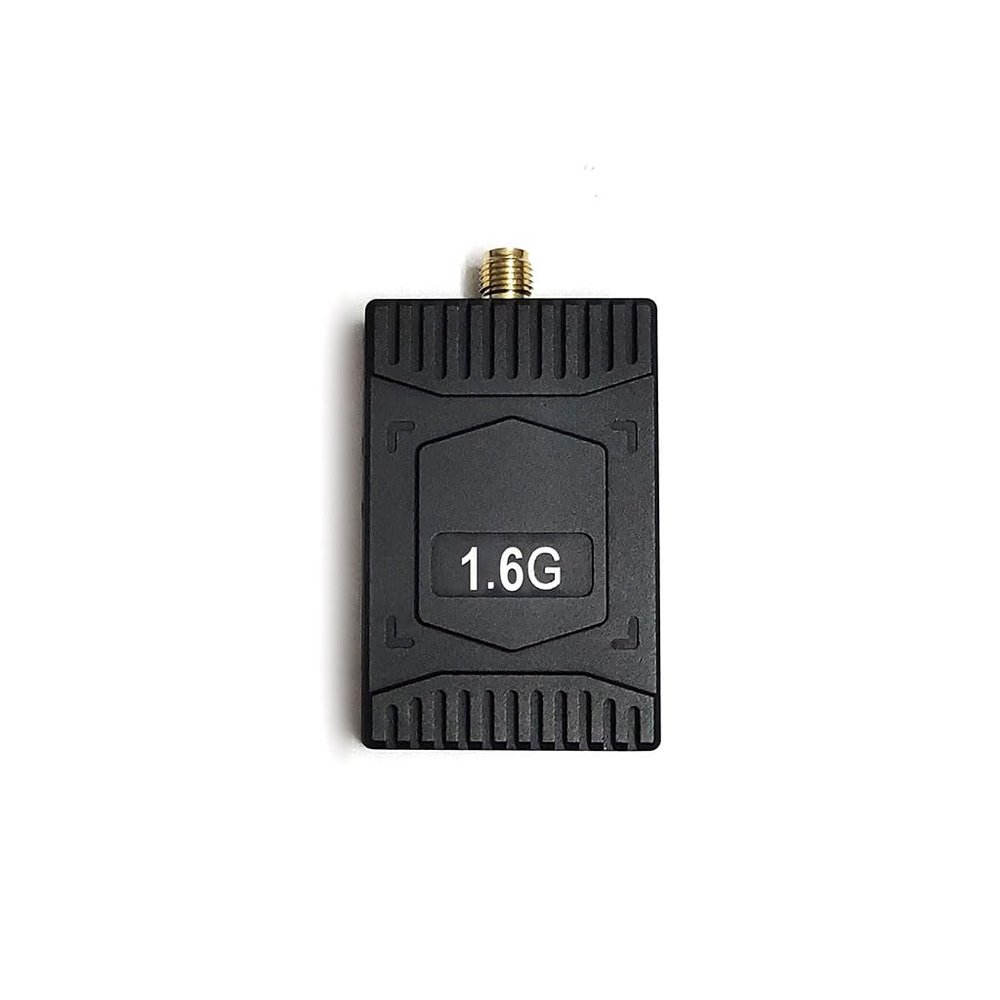

LiftChuang VRX-1.6G/FPV4.5G-VRX Image Transmission High-Sensitivity Receiver for FPV Drones (VRX-1.6G)

Description

• 1. Set the frequency band Long press the [ Channel/Band button to set the A band and B band, The red indicator light in band A lights up, and the blue indicator light in band B lights up.
• 2. Set up channels Short press the [ Channel/Band I button to set the channel. The number of times the current band indicator light flashes represents the channel, and channels 1-8 can be set in a loop.
• 3. Display The preview status channel indicator light flashes periodically and cyclically, The channel indicator follows the band light, for example, band A. The number of times the red indicator light flashes represents the channel value of band A.
• 4. Power control Long press the power button to enter standby mode, and the green indicator light will turn off. Long press again to enter normal working mode, and the green indicator light will turn on.
• Antenna interface: SMA (outer screw inner hole) @ 50 ; Recciving sensitivity:-94dBm

Specifications:

VRX-1.6G High-Sensitivity Receiver:

1. Set the frequency band Long press the [ Channel/Band button to set the A band and B band, The red indicator light in band A lights up, and the blue indicator light in band B lights up.

2. Set up channels Short press the [ Channel/Band I button to set the channel. The number of times the current band indicator light flashes represents the channel, and channels 1-8 can be set in a loop.

3. Display The preview status channel indicator light flashes periodically and cyclically, The channel indicator follows the band light, for example, band A. The number of times the red indicator light flashes represents the channel value of band A.

4. Power control Long press the power button to enter standby mode, and the green indicator light will turn off. Long press again to enter normal working mode, and the green indicator light will turn on.

Antenna interface: SMA (outer screw inner hole) @ 50
Recciving sensitivity:-94dBm1dBm
Video output: 1Vp-p@75
Power input: DC 6-26V
Power consumption: 1.2W @ 12V/100mA
Size: 50x32x11mm
Weight: 24. 5g(antenna not included)
