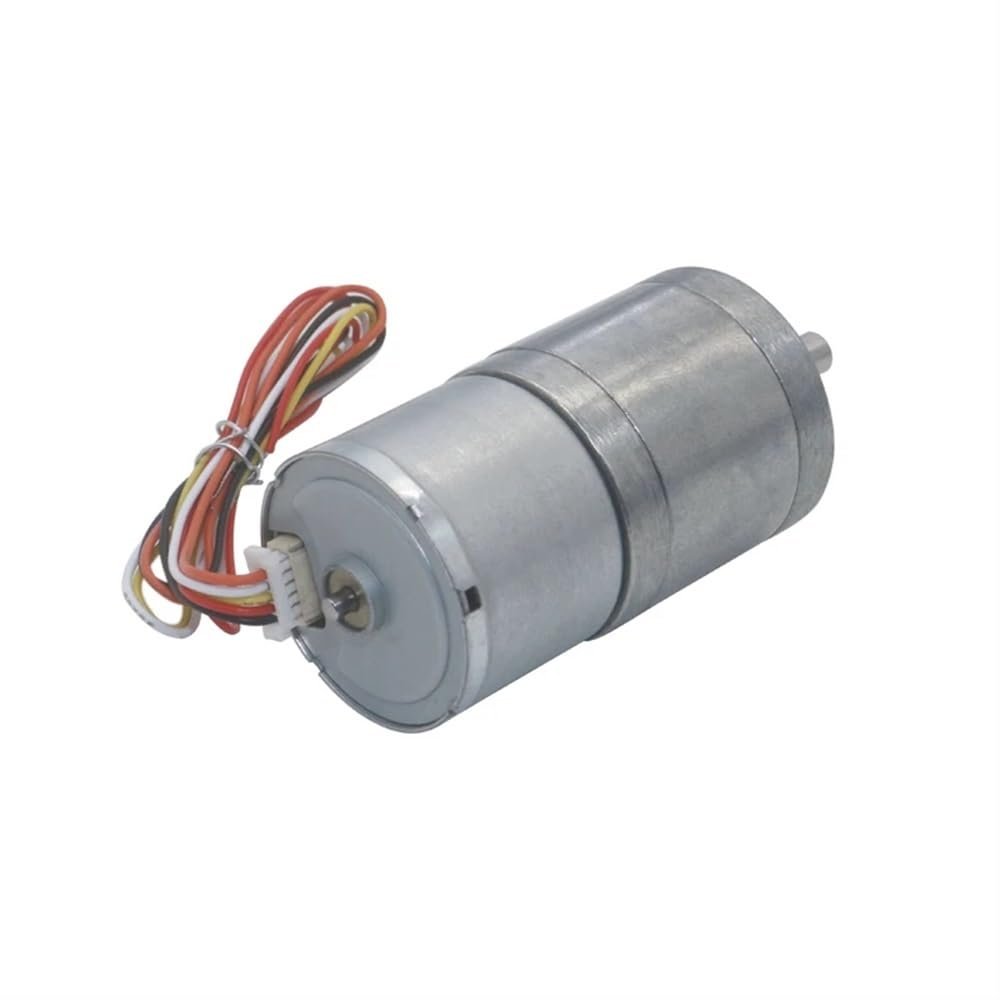

MANHONG Electric Small Motor DC12V Silent Speed Brushless Gear Motor with Metal Gearbox Brushless Motor JGA25-2418 Gear Motor (Speed(RPM) : 1000, Voltage(V) : DC 12V)

Description

• Pure copper wire core rotor: Using precision winding technology, the motor power is increased by 20%.
• Motor diameter: about 25mm
• Motor body length: 18mm
• Output shaft diameter: 4mm (D type)
• Output shaft length: 9.5mm

Using high hardness steel, good toughness, impact resistance, bearing quality and gear motor life are improved, extremely durable.Voltage: DC12VNo-load speed: 1000rpm, 450rpm, 210rpm, 130rpm, 100rpm, 58rpm, 45rpm, 26rpm, 20rpm, 12rpm, 9rpmVoltage: DC24VNo-load speed: 2000rpm, 930rpm, 420rpm, 260rpm, 200rpm, 115rpm, 90rpm, 52rpm, 40rpm, 24rpm, 18rpmMotor characteristics: low noise, long life, adjustable speed, with brake, with speed feedback signalMotor diameter: about 25mmMotor body length: 18mmOutput shaft diameter: 4mm (D type)Output shaft length: 9.5mmGearbox length: see labelWiring:Red line: power supply+Black wire: power supply-Yellow line: FG output, 18singals/ROrange wire: CCW/CW control, the orange wire is empty and the motor is counterclockwise. When the orange wire is connected to the power supply, the motor is counterclockwise.White line: speed regulation
