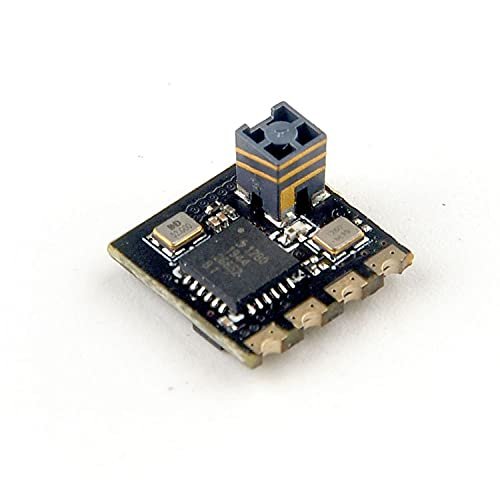

0.44g Tiny 2.4G ExpressLRS EP2 Elrs Nano Receiver with Built-in Ceramic Antenna Long Range Low Latency for Micro Carbon Fiber FPV Racing Quadcopter Quad Frame kit RC Drone Frame Tiny Whoop

Description

• Happymodel 2.4G ELRS Nano series receiver is based on ExpressLRS open source architecture and program, Based on PP RX, we developed the ESP8285 version of Nano 2.4G rx, named EP1 and EP2. The RF module of EP1/EP2 is the same as PP RX, but it uses ESP8285 MCU. Therefore, you can upgrade the firmware via WIFI, which is very user-friendly.
• To flash the firmware, Power up the receiver while keeping the transmitter turned off. After a while, you can find the ExpressLRS hotspot. Connect to this hotspot using a PC or mobile phone. The password is expresslrs, then you can visit 10.0.0.1 to upload the firmware
• Low latency and high refresh rate, they are very suitable for FPV racing and long range FPV cruising while being ultra-light and ultra-small, making them very suitable for Tinywhoop.
• With this tiny teeny receiver you can achieve great range even comparable to crossfire or Tracer, ghost. Don't just take my word for it, search Crossfire vs expresslrs on youtube and hear what Joshua Bardwell have to say.
• Weight: 0.44g (with built-in ceramic antenna), the main difference between EP1 and EP2 receiver is that EP2 has built-in ceramic antenna, making it more compact and no need to attach external antenna.

PP RX was designed by @Jye Smith of the ExpressLRS development team. Its main hardware architecture is STM32L432KBU6 MCU and SX1280 RF chip. It has a built-in ceramic antenna, which is ultra-light and small.
Based on PP RX, we developed the ESP8285 version of Nano 2.4G rx, named EP1 and EP2. The RF module of EP1/EP2 is the same as PP RX, but it uses ESP8285 MCU. Therefore, you can upgrade the firmware via WIFI, which is very user-friendly. To flash the firmware, Power up the receiver while keeping the transmitter turned off. After a while, you can find the ExpressLRS hotspot. Connect to this hotspot using a PC or mobile phone. The password is expresslrs, then you can visit 10.0.0.1 to upload the firmware.

Binding steps:
1. After the receiver is connected to the flight controller, power the FC through USB connection. Disconnect it as soon as the LED on the receiver turns off. Repeat the procedure one more time. when the USB is connected for the third time, the LED will start to flash double, which means that the receiver enters the bingding mode.
2. After the ES24TX module or other 2.4G ELRS module are properly installed on your transmitter, copy the ELRS.LUA file to the "SD Card/Scripts/tools" directory in the SD card of the radio, then run ELRS.LUA to continue Bind procedure .
3. After successful binding, the LED on the receiver will go steady.

ESP8285 processor
SX1280IMLTRT module
2.4G omnidirectional T antenna
Maximum receiving refresh rate: 500Hz
Minimum receiving refresh rate: 25Hz
Working voltage: 5v
Weight: 0.44g (with built-in ceramic antenna)
Size: 10mm*10mm*6mm Working protocol: CRSF (Betaflight)
Peak gain: 3.7dB
Package includes : EP2_RX receiver x1
