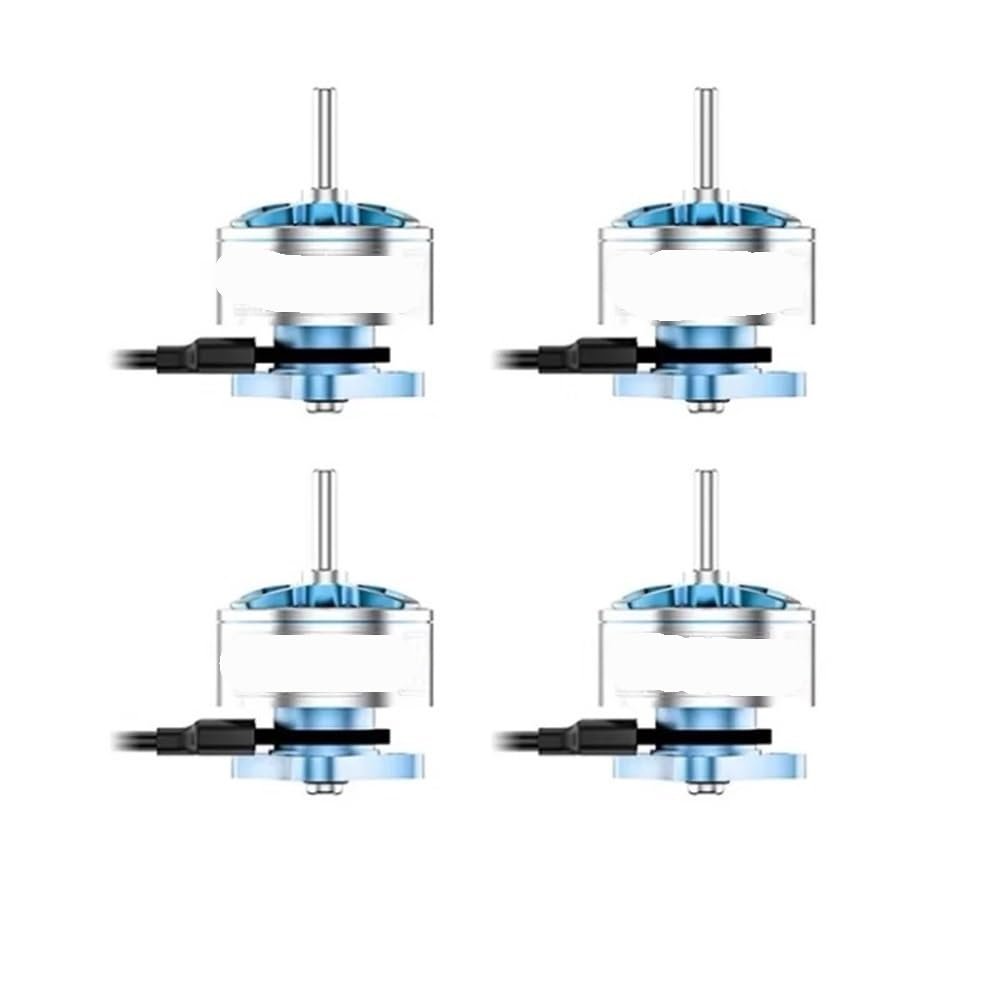

0702 Brushless Motor 30000KV, 23000KV, 27000KV Coreless Motor For Tiny Whoop FPV Drone Performance(27000kv 4pcs)

Description

• Specifications and Weight: Approximately 1.45-1.55g per unit, stator size 0702
• Electrical Characteristics: Supports 1S , 23000/27000/30000KV optional
• Shaft Configuration: 1mm shaft diameter, 3M1.4 mounting holes with a spacing of 6.6mm
• Applications: Fit For Tiny Whoop FPV racing jets
• Package Contents: Excludes , ESC, and propeller.

0702 Brushless Motor 30000KV, 23000KV, 27000KV Coreless Motor For Tiny Whoop FPV Drone Performance
Specifications
Item: 0702 II Brushless Motors
Motor KV (rpm/V): 30000KV, 27000KV, 23000KV
Bearing: Dual ball bearings (0702 II), Brass bushings (0702SE II)
Weight: 1.55g (0702 II), 1.45g (0702SE II 23000KV), 1.47g (0702SE II 27000KV)
Color: Black/Red (0702 II), Ice Blue (0702SE II)
Shaft Diameter: 1mm
Shaft Length: 4.2mm
Hole Distance: 6.6mm
Motor Mount Holes: M1.4
Input Voltage: 1S
Cable: 35mm (connector included),30AWG
0702SE II| 23000KV
0702SE | 23000KV
0702SE II | 27000KV
0702SE | 27000KV
0702 II| 30000KV
0702 | 30000KV
Color
Ice blue
Black/red
Bearing
Brass bushings
Dual ball bearings
Motor KV
23000KV
27000KV
30000KV
Max Thrust
(GF 1219S-3)
32g
28.3g
35.4g
31.4g
37.2g
32.4g
Thrust Enhancement Rate
13%
12.7%
14.8%
Weight (35mm connector included)
1.45g
1.42g
1.47g
1.44g
1.55g
1.52g
Weight (25mm cable included)
1.38g
1.35g
1.4g
1.37g
1.48g
1.45g
Shaft Diameter
1mm
Shaft Length
4.2mm
Motor Mount
3*M1.4-EQS 6.6mm
Input Voltage
1S
Cable
35mm (Connector included)
Package
4 * 0702 II / 0702SE II Brushless Motors
15 * M1.4*3 PEEK screws
12 * M1.4*3 metal screws
Is : No
Is it battery/power supply : N
Is it charger/adapter : N
Is Batteries Included : No
