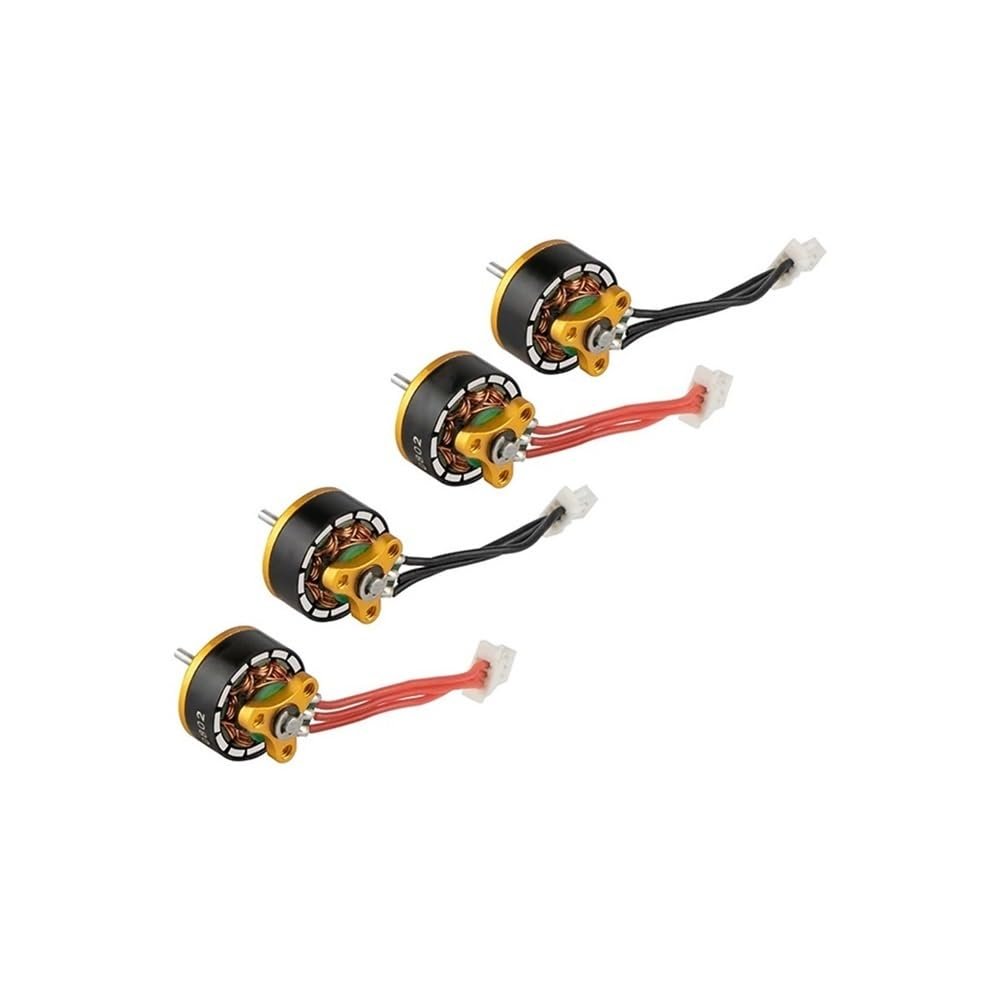

0802 Brushless Motor 17000KV for Whoop Drones and FPV Quads, Compatible with Mobula6 Mobula7, 1S Power, 4PCS Kit

Description

• Precise Fit & Professional Specs: The 0802 brushless motor features a 9N12P configuration and an 8*2mm stator, providing a high-speed 17000KV rating. Equipped with a 1.0mm shaft and M1.4 mounting, it is designed for precise physical compatibility with 1S Lipo systems. Its micro 10.7*8mm dimensions ensure a secure match for Mobula6, Mobula7, Snapper7, and other 65mm-75mm Whoop airframes.
• Reliable Performance & Marine Durability: Constructed from lightweight metal, each motor weighs approximately 1.9g-2.0g. The design includes a double E-clip feature to enhance the structural integrity of the motor bell during . Optimized for dynamic balance, these components provide smooth propulsion. They are designed to withstand diverse environments while maintaining reliable performance during flight missions.

The 0802 brushless outrunner motor is an lightweight hardware foundation engineered for Whoop drones, indoor FPV quads, and 65mm-75mm wheelbase flight models. The 17000KV high-RPM specification under 1S voltage provides exceptionally responsive and sufficient thrust for agile indoor flight maneuvers.

This motor is optimized with a double E-clip design to maintain a secure connection between the motor bell and stator during high-speed rotation. It comes pre-equipped with 30mm 30AWG cables for convenient integration with compact flight controllers. As a 4-piece propulsion solution, this kit is a reliable choice for building performance quads or performing routine maintenance on existing Whoop models.

Technical Specifications:
- Model Name: 0802 (A0802 / BE0802)
- KV Rating: 17000KV
- Configuration: 9N12P
- Stator Dimensions: 8mm (D) * 2mm (L)
- Motor Dimensions: 10.7mm * 8.0mm
- Shaft Diameter: 1.0mm (13.85mm Length)
- Voltage Range: 1S Lipo
- Mounting Pattern: M1.4*3
- Product Weight: Approx. 2.0g/pc
- Wire Gauge: 30AWG (30mm)
- Bearing Style: Brass Bushings

Package Includes:
- 4 x 0802 17000KV Brushless Motor Kit
