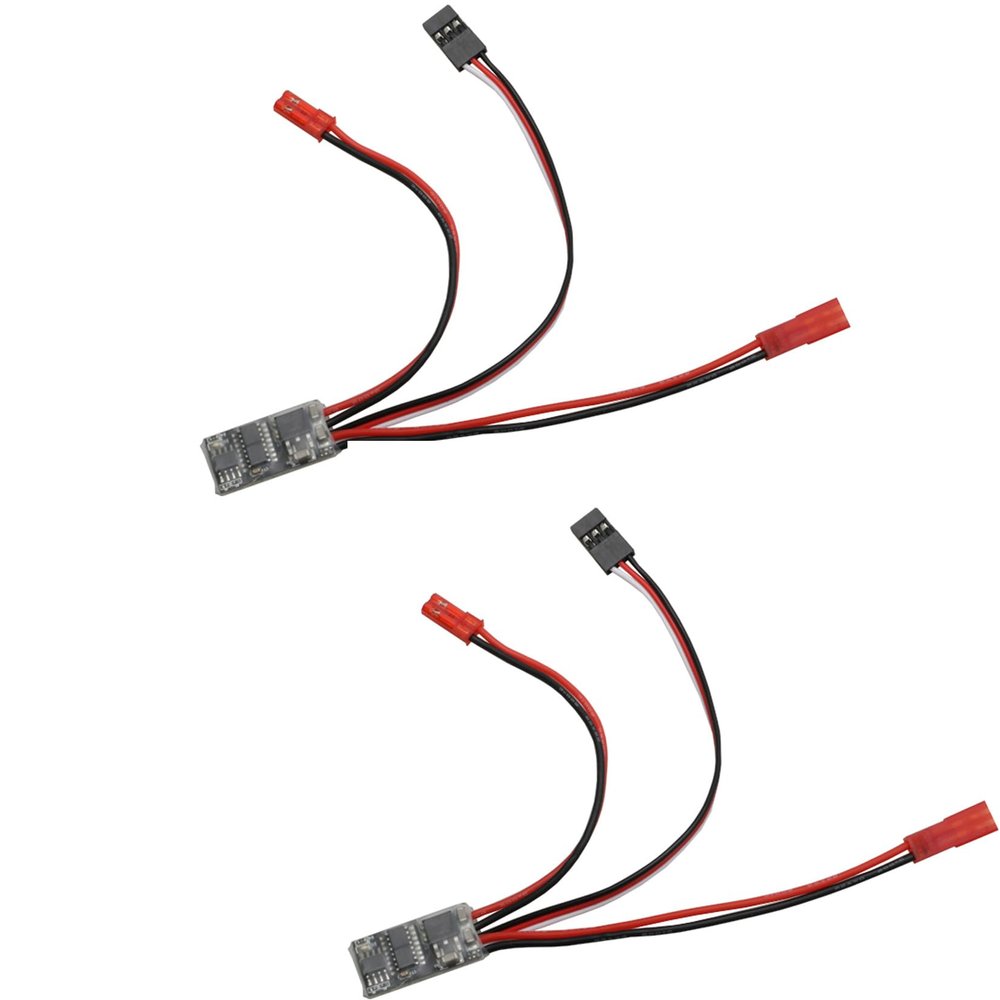

10A Brushed ESC 1-3S Two Way Motor Speed Controller with Brake/Without Brake 1A BEC for RC Vehicle Car Boat Model(Two Way no Brake 2pcs)

Description

• 1-3S 10A Brushed ESC Speed Controller , Voltage: 3.2V-11.1V, 1S-3S lithium battery 3-9 cell NiMH batteryWith indication, LED, etc. change with throttle size
• BEC voltage: In the mode of 1S power supply, the BEC voltage is equal to the input voltage; In 2-3S power supply mode, BEC voltage is stable at 5V 1A
• Please confirm before use: The ESC supports 3S voltage. Damage can easily occur if your motor is not 3S-compatible, or if the motor load exceeds the ESC's rated power.
• Important Note: No external power supply is allowed on the receiver. If multiple ESCs are used (or the receiver is powered by a UBEC, etc.), remove the red wire from the 3P (black/red/white) output wire of the ESC to prevent ESC damage.
• Suitable for RC cars, ships, model aircraft, small planes, hollow cup brushed four axis, fixed wing and other productsBrushed ESC Size: 25x14x6mm (length x width x height)

Description:
How to choose the version?

1. Dual-way ESC with brake, the handle is up, the motor is rotating forward, if the car wants to brake, turn the handle to the reverse position, then the motor does not move and is in the braking state. If you want to move forward or backward, after the handle return to the middle, operating forward or backward.

2. Dual-way ESC without brake, the handle is up, the motor is rotating forward, the handle is back to the middle, stop at the natural speed. The handle is down, the motor reverses, the handle returns to the middle, stop at the natural speed. When the vehicle or ship is in the forward state, turn the handle down and ESC reverse. If want to stop, when the motor is just to be reversed,handle back to the middle, the vehicle and ship stop.

3. One way for aircraft model version, generally used for fixed wing or multi axis aircraft models, it can control the rotation speed of the motor in one direction, but cannot reverse. When the joystick is in the low position, the motor stops rotating, and when it is in the high position, the motor speed is the highest.

Package included:
1pcs x ESC
