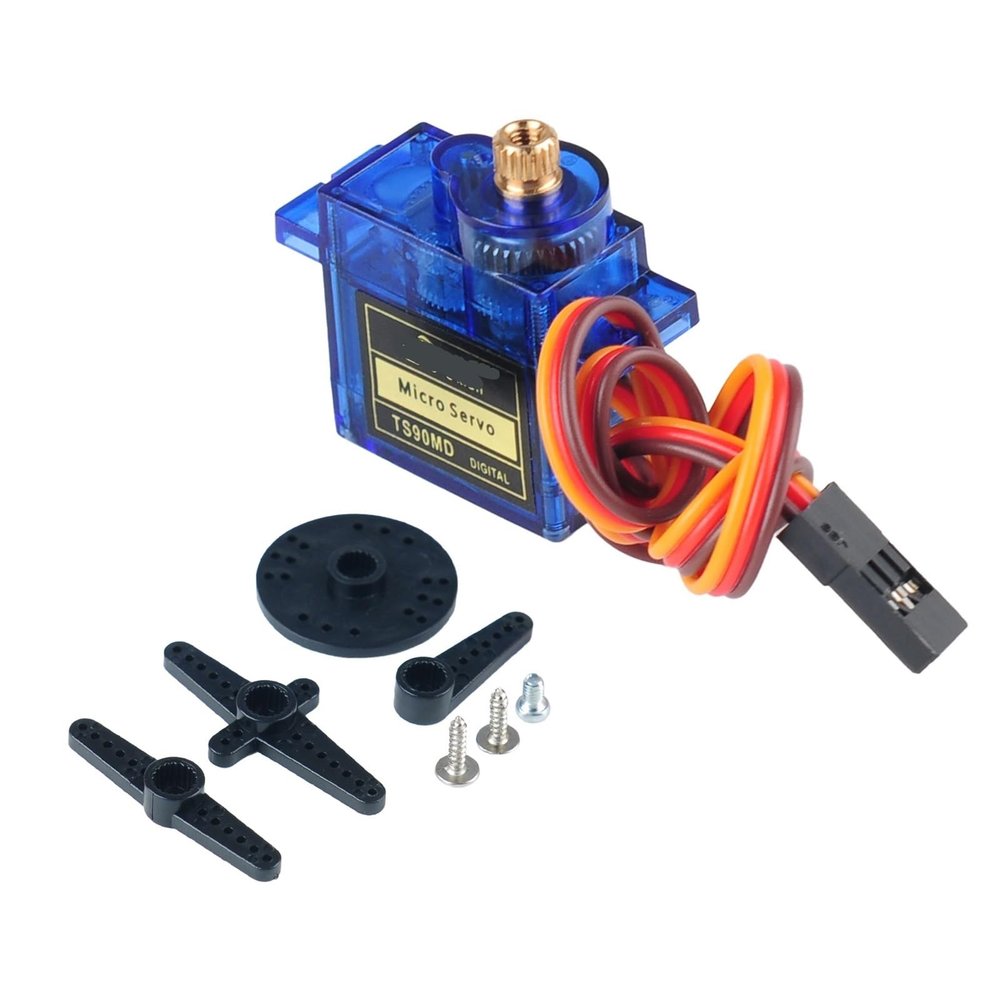

10pcs 9g TS90MD Metal Gear Digital Servo 180/270/360 Degree Angle Controllable Servo Motor Set(10pcs 270 Degree)

Description

• Servo Horns

Servo Horns
10pcs TS90MD Metal Gear Digital Servo 90/180/270 Degree Angle Controllable Servo Motor Set
Full Metal Gear Servo
Note: The PWM signal given to the servo determines the servo angle, and the 270 servo is in 500-2500us.
All-metal gears, strong wear resistance, wide range of applications
Good stability, high precision, fast response, controllable angle
Mechanical specifications
Dimensions: 22.4*12.5*22.8mm
Mechanism limit angle: 200sh 5
Output shaft: 20T Diameter: 4.9mm
Gear material: metal teeth
characteristics
Working voltage: 4.8V-6V
No-load speed: 0.1 1sec/60
No-load current: 220mA/6V
Stall torque: 2.2Kg-cm/6V
Locked rotor current: 800mA+10%
Quiescent current: 5mA-6mA
Control characteristics
Control signal: Pulse width modification
Control system type: Analog controller
Midpoint: 1500usec
Pulse width range: 5002500usec
