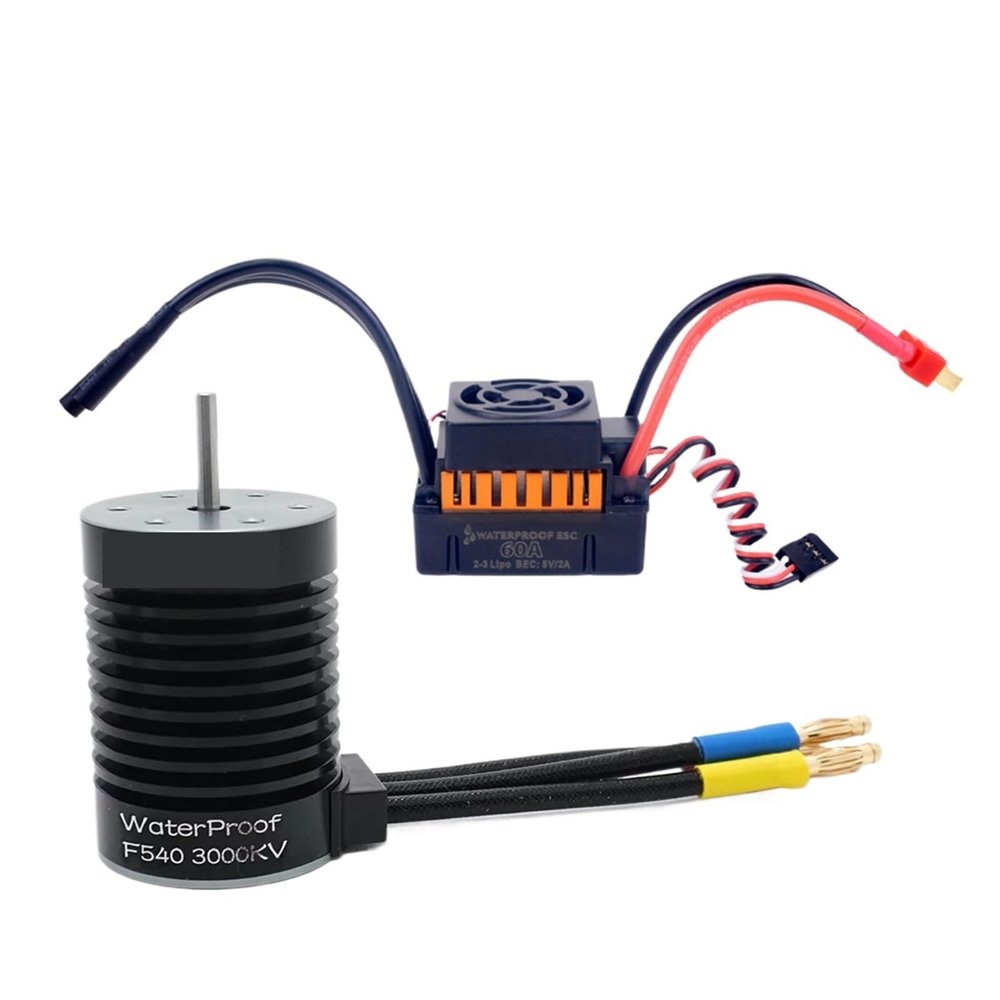

1:10 1:12 1:14 RC Part Waterproof F540 3300KV 4370KV Brushless Motor W/60A ESC for 144001 124019 RC 124018 Truck Buggy(Purple)

Description

• 1. Micro 7-12V brushless motor with internal rotor design. The compact inner rotor structure allows the rotor to be located inside the stator, achieving stable high-speed output. Lightweight design makes it suitable for drones, RC model cars, and small electric tools
• 2. High speed brushless motor with internal rotor structure, suitable for 1/10 ratio remote control cars and small and medium-sized fixed wing aircraft. Paired with an electronic governor, it can achieve linear throttle response without frequent maintenance of carbon brushes
• 3. Heat dissipating brushless motor, with aluminum alloy heat dissipation fins and ventilation holes on the outer shell, suitable for remote control vehicles or ducted aircraft that operate under high loads for a long time, effectively reducing winding temperature and protecting motor life
• 4. Waterproof and dustproof brushless motor, with a sealing level of IP54 for the outer shell, suitable for use on remote control vehicles on muddy or shallow water roads, and can also be used for seaplanes, effectively resisting mud, sand, and splashing water
• 5. High KV brushless motor, suitable for high-speed remote-controlled flatbed cars and ducted fan aircraft, with a maximum speed of over 50000 revolutions per minute. The rotor is dynamically balanced to reduce high-speed vibration

CNC Machined 6061 T6 Billet Aluminum Heatsink Can
High Purity Copper Windings Maximizes Efficiency
High RPM ABEC5 Oversized Bearings
Universal fit,fits all 1/10 brushless cars-multi-mounting system for M3 screws
Precision balanced rotor,smoothness for best reliability and maximum RPM
Stator - Super Thin (0.35mm) Laminations
Removable/Replaceable Rotor
Precision Engineered for Maximum Energy Conversion
Motor Specifications:
F540 4370KV Motor
Size: 540
Watts: 800W
<;12V
Max Amps: 66A
KV(RPM/Volt): 4370KV
Max RPM: 50000
Diameter: 36mm
Length: 50mm
Shaft length: 15mm
Shaft diameter: 3.175mm
Plug type: 4mm golden banana plug
F540 3300KV Motor
Size: 540
Watts: 800W
<;17V
Max Amps: 47A
KV(RPM/Volt): 3300KV
Max RPM: 50000
Diameter: 36mm
Length: 50mm
Shaft length: 15mm
Shaft diameter: 3.175mm
Plug type: 4mm golden banana plug
60A ESC Specifications:
Item name: waterproof ESC
Continue current: 60A
Burst current: 360A
Battery: 2-3S Li-Po / 4-9S Ni-Mh Ni-Cd
BEC output: 5V / 2A
Power supply plugs: T plug male
Motor plugs: 4mm banana plug female
Dimension: 51.5 * 38.5 * 38.5mm (without cables)
==========
Is Electric : No Battery
Quantity : 1 pcs
Wheelbase : Screws
Is it charger/adapter : N
Is Batteries Included : No
Technical parameters : value 2
Model Number : R6000/R6001
For Vehicle Type : Airplanes
Tool Supplies : Assembled class
Four-wheel Drive Attributes : Assemblage
Upgrade Parts/Accessories : Frame
Material : Metal
