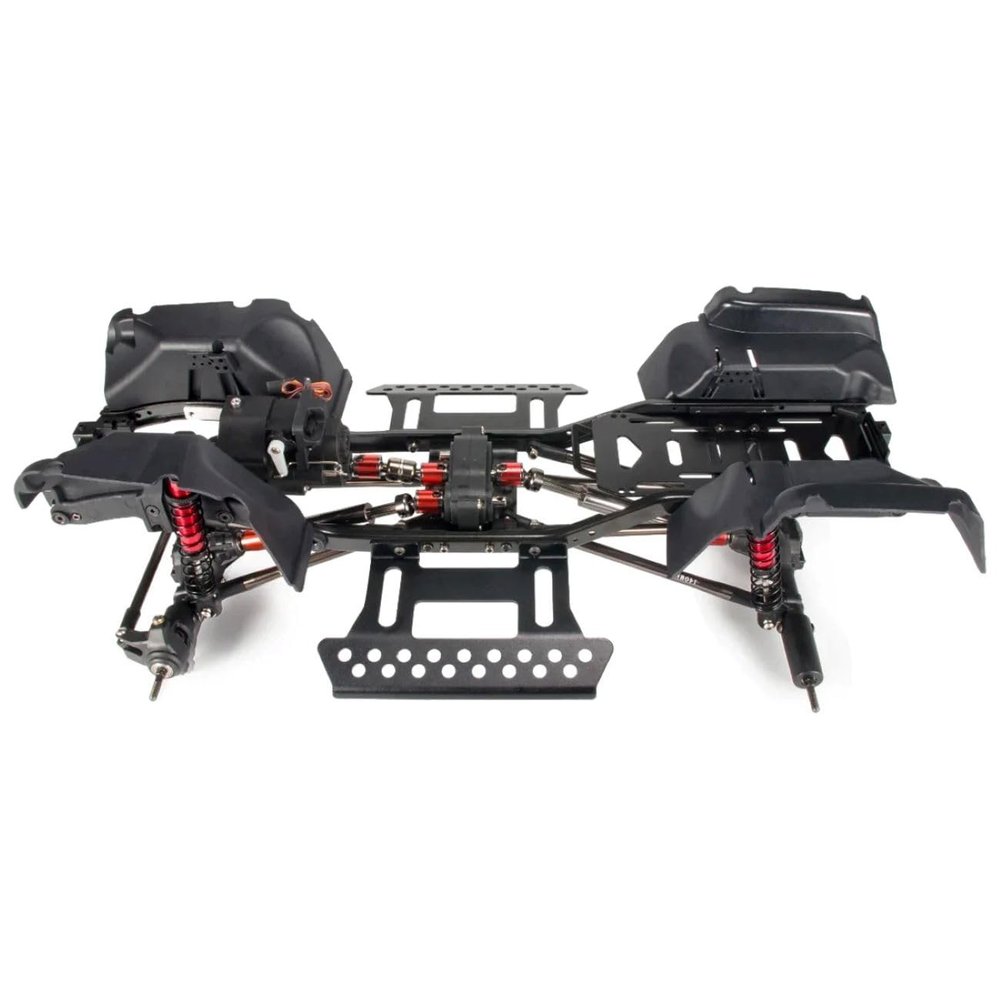

1/10 RC Crawler Chassis Kit with Planetary Gear 2 Speed Transmission Rock Slider Fender Flares for 313mm Wheelbase Wrangler Body (Chassis Set)

Description

• STRONG BODY: The metal frame weighs 1.31 kg (2.89 lbs) for a lower center of gravity, internal splined driveshafts, metal frame rails and battery tray, nylon anti-skid and chassis mounts, nylon integrated shock towers and fenders for better stability and crawling performance.
• FITTINGS: Equipped with injection molded nylon axle housing, this chassis kit will make your 1/10 crawler body more durable. Internal splined driveshafts, metal frame rails and battery tray.
• COMPATIBILITY: This portal axle kit is suitable for 1/10 class RC crawlers with 313mm wheelbase, such as Axial SCX10, TRX4, D90 and so on.
• TRANSMISSION: The RC car chassis frame is equipped with two-speed transmission gear ratio: 1:8 (low speed) / 1:4.8 (high speed), with motor (540/550, 27T/35T), wheels (1.9/2.2 inches), which will provide plenty of power for your 1/10 RC drift car.
• SELF ENTERTAINMENT: you can assemble the RC car chassis according to your own preferences and enjoy the fun of DIY.

1/10 RC Crawler Chassis Kit with Planetary Gear 2 Speed Transmission Rock Slider Fender Flares for 313mm Wheelbase Wrangler Body
Front Mounted 2-Speed Transmission
Reversed Front Axle
Injection Molded Nylon Axle/Transmission Housing
Steel Internal Gears and Shaft
Internal Spline Drive Shaft
Nylon Integrated Shock Towers and Fenders
Nylon Skid and Chassis Brace
Metal Frame Rails and Battery Tray
Directly Compatible with 313mm Wheelbase Wrangler Rubicon Body
Size & Weight:
Wheelbase: 313mm(12.32in)
Total Length: 450mm(17.72in)
Axle Width: 210mm(8.27in)
Fenders Width: 177mm(6.97in)
Weight: 1.31kg(2.89 lbs)
Gears:
Bevel Gear Set: 30T / 8T
Motor Gear: 0.7M 15T
Transfer Case Gear Ratio: 1:1.2
2-Speed Transmission Gear Ratio: 1:8 (low)/1:4.8 (high)
Required to Complete(not included):
Body and Mount(313mm wheelbase wrangler rubicon body)
Wheels(1.9/2.2 Inch)
Motor (540/550, 27T/35T)
ESC
Transmitter & Receiver (3 Channel or more)
Standard Size Servos
Battery (Consult your "ESC" manual, Recommend 2S LiPo)
Charger (Consult your battery guide)
