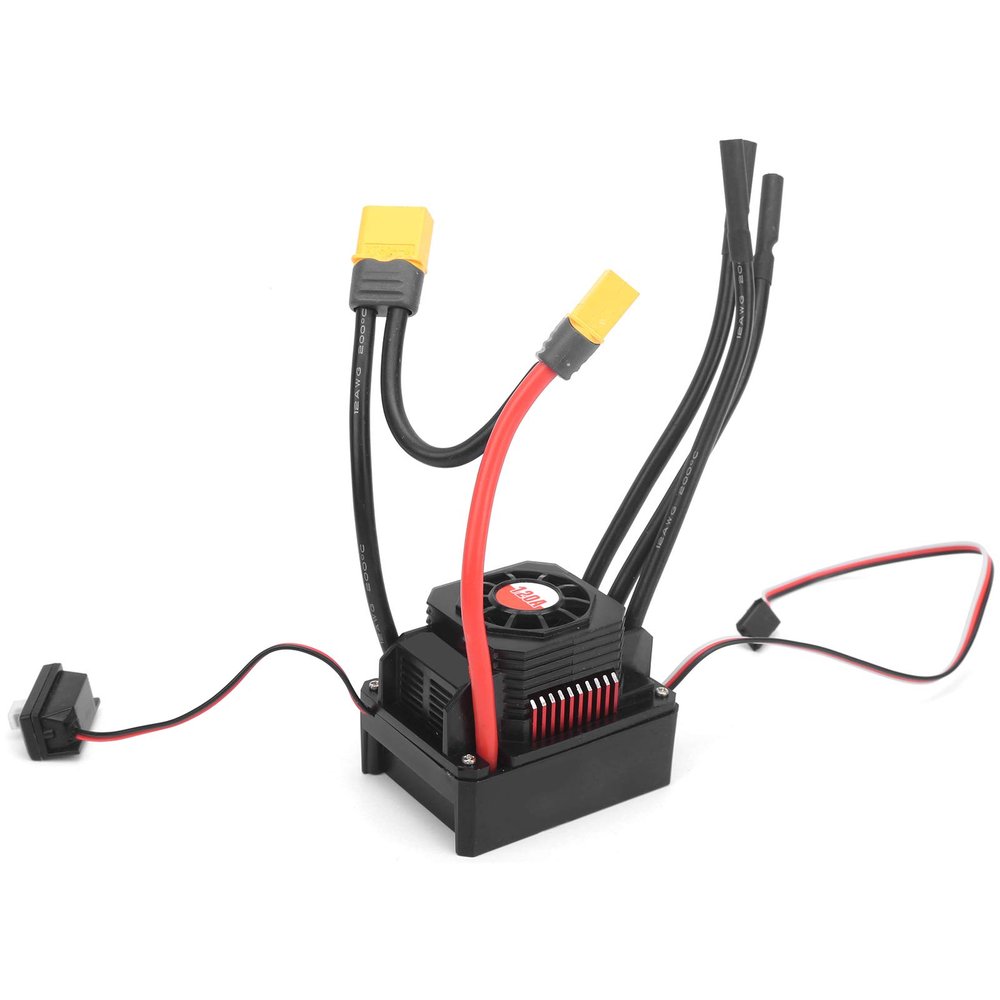

120A ESC, High Current 1/10 1/8 RC Car Compatible Electric Speed Controller with Plug for Hobbyists Racing Off-Road and Upgrades

Description

• Plastic+Alloy material, and , for has a long service life, which is specially designed for remote control car with excellent starting, acceleration and linear characteristics.
• Multiple functions, battery lowvoltage cutoff , overheating loss , motor stall , which is compatible for 1/10 1/8 RC car electric speed controller with plug, fit well.
• Powerful current , excellent heat dissipation, easy to program and compatible with pocket programming cards, please note that before using this ESC in water, please remove the cooling fan; clean and dry it immediately after use to prevent the connector from rusting.
• 120A BEC voltage change: turn off ESC, connect the short circuit chip to bec, turn on ESC, and the motor will emit "beep". After 2 seconds, pull out the short circuit chip to the BEC. When the change of BEC voltage is completed, the motor beeps - "beep" (if be (the voltage is 6.1v, the motor beeps). If be (7.3v motor beeps twice), turn off BEC voltage change.
• The operate method is that firstly, connect BEC wires with the receive , the connect motor wires with ESC, turn on the transmitter connect battery pack with ESC then switch on the ESC, when the connection of motor and battery is finished, the motor emits"beep-beep tone, and hen the throttle stick is In the neutral position, the motor re-emits"beep-beep tone.

Specification:
Item Type: Electric Speed Controller
Material: Plastic+Alloy
Color: Red Black
Size: Approx. 60x45x45mm/2.4x1.8x1.8in
Weight: Approx. 201.0g/7.1oz
Continuous Current: 120A
Maximum Current: 600A
Motor Type: Sensorless and Brushless Motor
: 0.00035ohm
Battery: 3-6 Cells Lipo / 9-18 Cells NIMH
Bec Output: 6.1V/3A (Switch Mode)

Troubleshooting:
1 . If after power on , motor can , t work , no sound is emittedplease check the connections between battery pack and motor .
2 . If after power on , LED flashes , please check the voltage of battery pack , which should be from 5V-25.5V
3 . If the motor emits a " beep-beep " tone Only ( BEC voltage 6.1V ) or If the motor emits a " beep-beep " twice ( BEC voltage 7.3V ) , please check all the connections : BEC wires , transmitter andreceiver , throttle wires , etc . please check the transmitter TH . TRIM and adjust it to the motor re-emits Beep-beep tone
4 . If the car can't be speed up , please check either voltage of the battery pack is too low or the temperature of ESC is too high . If the voltage of the battery pack is too low , please replace the battery pack . If the temperature of ESC is too high , please check all connections . If not , please push the button EPA on your remote control
5 . If the car stops suddenly while in working state , please check the motor's connections , and the road
6 . If the car runs in the opposite direction , which the transmitter is available , please swap two wire connections between the ESC and the motor

Package List:
1 x Electric Speed Controller
1 x Manual
