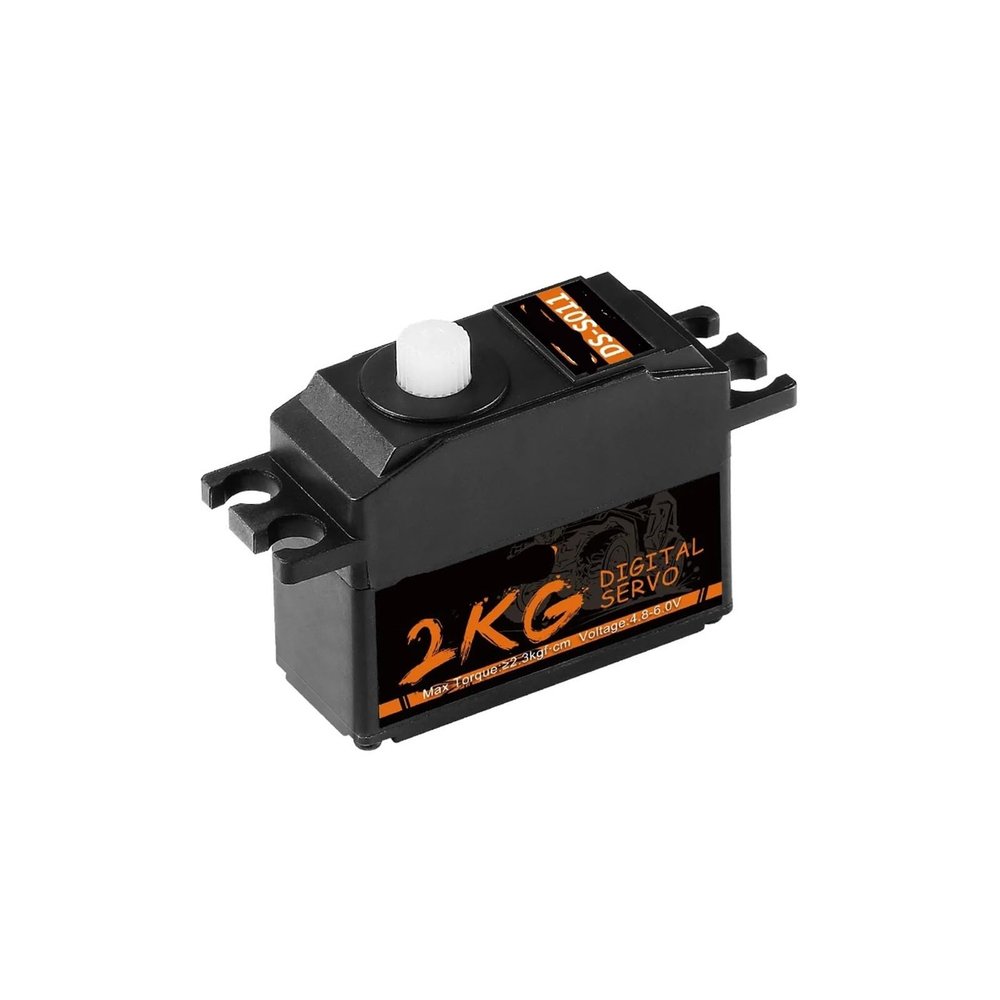

1/5/10/20pcs 2KG Metal Gear Digital servo Waterproof Suitable for 144001 12428 124018 Mn99s Mn86 1/12(20PCS Plastic 2KG)

Description

• Servo Horns

Servo Horns
Plastic gear version:
Specification:
Product Name: S011
Quantity: 1/5/10/20 pieces
Working voltage: 4.8~6.0V DC
Maximum torque: 4.8V2.5kgf.cm; 6.0V3.5kgf.cm
No-load speed: 4.8V0.16s/60; 6.0V0.14s/60
Stall current: 4.8V 1200mA; 6.0V1800mA
Current consumption* (no load): 4.8V 50mA; 6.0V70mA
Maximum operating travel angle: 18010 (500~2500 us)
Dead zone width: 5us
Mechanical limit angle: 360
Communication interface: PWM
Motor type: Iron core motor
Case material: ABS
Gear set material: plastic gear
Weight: 21 g
Dimensions: 42.315.432.1mm
Cable length: JR 250MM5mm
Package Included:
1/5/10/20 * 2KG digital servo
1/5/10/20 * Servo arm accessories
Metal Gear Solid Version:
Specification:
Product Name: S011M
Quantity: 1/5/10/20 pieces
Working voltage: 4.8~6.0V DC
Maximum torque: 4.8~5.0kgf.cm; 6.0~6.5kgf.cm
No-load speed: 4.8V0.16s/60; 6.0V0.14s/60
Stall current: 4.8V 1900mA; 6.0V2500mA
Current consumption* (no load): 4.8V 120mA; 6.0V 130mA
Maximum operating travel angle: 18010 (500~2500 us)
Dead zone width: 5us
Mechanical limit angle: 360
Communication interface: PWM
Motor type: Iron core motor
Case material: ABS
Gear set material: metal gear
Weight: 21 g
Dimensions: 42.315.432.1mm
Cable length: JR 250MM5mm
Package Included:
1/5/10/20 * 2KG digital servo
1/5/10/20 * Servo arm accessories
