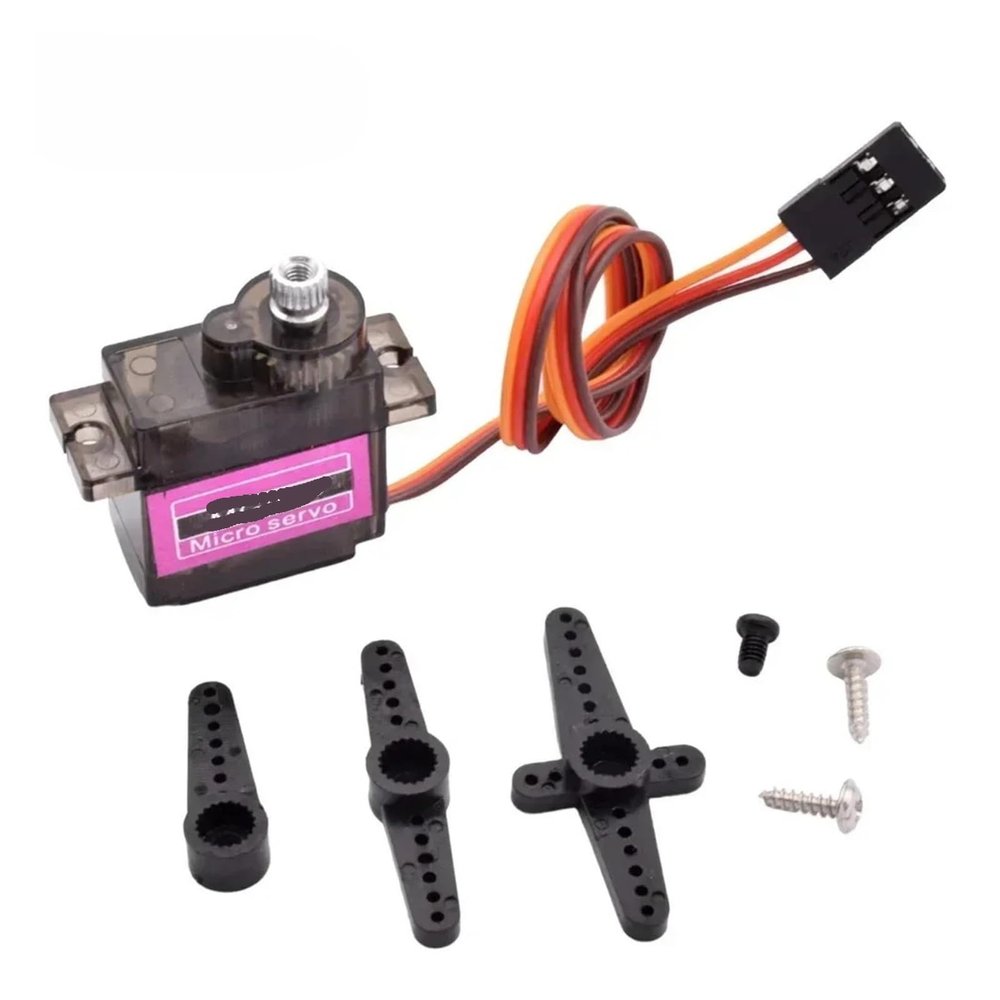

1pcs Servo Motor Metal Gear Simulation Remote Control Servo Motor 180 360

Description

• Servo Gears

Servo Gears
Specification:
Product model:
Dimensions: 22.8 x 22.4 x 12mm
Working torque: 2kg/cm
Response speed: 0.11 seconds/60 degrees (4.8V)
Operating Temperature: 0 - 55
Dead zone width: 5usec
type: JR, FUTABA universal
Rotation angle: 0-180/360 (continuous rotation)
Operation mode: Analog
Operating voltage: 4.8V
Gear material: Aluminum + plastic / full metal
Accessories: multiple arms, fixing screws (as shown in the picture)
Connection line: 250mm (brown: negative pole; red: positive pole; orange: pulse input)
Scope of application: small and medium-sized aircraft models and models
Steering gear control:
The control of the servo generally requires a time base pulse of about 20ms. The high level portion of the pulse is generally in the range of 0.5ms~2.5ms and is the angle control pulse portion.
1.Servo 0-180 degrees
The corresponding control relationship is as follows:
0.5ms---------------0 degrees;
1.0ms-----------45 degrees;
1.5ms-----------90 degrees;
2.0ms--------------135 degrees;
2.5 milliseconds -----------180 degrees
For 180 degree servos, please use a professional PWM servo controller to control the angle.
2. Servo360
The servo is actually equivalent to a continuously variable speed reduction motor, which can control the speed and direction of rotation, but does not have a 0-360 degree angle control function.
