1X 20/25/30/35/40kg Digital Servo Waterproof IP66 RC Servo for 1/8 1/10 Scale High Speed Metal Gear High Torque(RDS3225-270)

Description

• Servo Gears

Servo Gears
20KG DS3218 digital servo with 25T servo arm, metal remote control toy, waterproof 180 degrees / 270 degrees

Specification:
Stall Torque (5V): 19 kg/cm (263.8 oz/in)
Stall Torque (6.8V): 21.5 kg/cm (298.5 oz/in)
Dead zone: 3s
Speed: 0.16 sec/60 (5V) / 0.14 sec/60 (6.8V)
Working voltage: 4.8~6.8V DC
Motor type: DC motor
Gear Type: Copper and Aluminum
Working frequency 1520s 333hz
CE certification is
Dimensions 40 x 20 x 405 mm (1.58 x 0.79 x 1.60 in)
Package Includes:
1 X DS3218 Digital Servo 20KG
1 X 25T Servo Arm
25KG RDS3225 digital metal servo 4.8-6.8V waterproof IP66
Specification:
Storage temperature range: -30~80
Operating temperature range: -15~70
Operating voltage range: 4.8-6.8V
Size: 40*20*40mm
Weight: 60 g
Gear Ratio: 342
Bearing double: bearing
Connecting wire: 3005mm
3-pole motor
Waterproof performance: No
Working voltage: 5V 6.8V
Idle current (when stopped) 4mA 5mA
Working speed (no load) 0.2 seconds/60 0.17 seconds/60
Stall torque (locked) 29.5 kg-cm 34.5 kg-cm
Stall current (locked) 2.1A 2.9A
Control system: PWM (Pulse Width Modulation)
Pulse width range: 500-2500 seconds
Neutral position: 1500 seconds
Operating angle: 180 or 270 (500-2500 seconds)
Dead zone width: 3 seconds
Working frequency: 50-330Hz
Rotation direction: counterclockwise (500-2500 seconds)

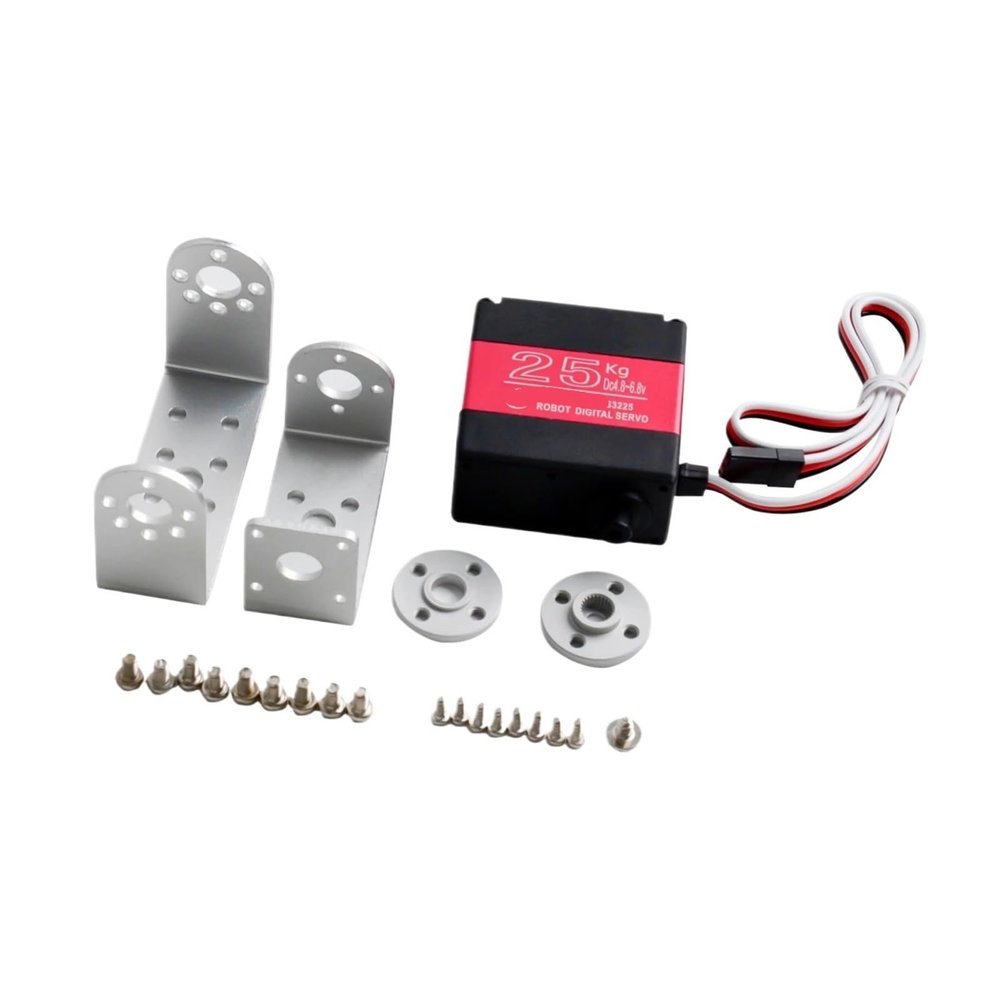

Package Includes:
1 X RDS3225 Digital Metal Server
1 X Long U-Shaped Metal Bracket
1 X Short U-shaped metal bracket
2 X 25T Metal Servo Arms
1 X Seven Screws
30KG 6V DS3230 high torque digital servo 180 degree waterproof IP66 with 25T servo arm
Specification:
Torque: 29.5kg/cm (at 5V), 34.5kg/cm (at 6.8V);
Motor type: DC motor;
Speed: 0.2 sec/60 (5V)/0.17 sec/60 (6.8V);
Weight: 60 g (2.12 oz);
Working voltage: 4.8~6.8 DC volts; Dead time: 3s;
Dimensions: 40 x 20 x 40.5 mm (1.58 x 0.79 x 1.60 in);
Gear type: copper and aluminum; Operating frequency: 1520s / 333hz;
Package Included::
1 x DS3230 30KG high torque digital servo;
1 x 25T adjustable metal servo arm;
1x Accessories (as shown)
35KG 6V DS3235 RC digital servo 180 degree waterproof IP66 with 25T servo arm
40KG 6V DS3240 high torque digital servo 180 degree waterproof IP66 with 25T servo arm
Specification:
Torque: 36 kg/cm (5V), 45 kg/cm (6.8V);
Motor type: DC motor;
Speed: 0.20 sec/60 (5V)/0.17 sec/60 (6.8V);
Weight: 60 g (2.12 oz);
Working voltage: 4.8~6.8 DC volts; Dead time: 3s;
Dimensions: 40 x 20 x 40.5 mm (1.58 x 0.79 x 1.60 in);
Gear type: copper and aluminum; Operating frequency: 1520s / 334hz;
Package Included::
1 x DS3240 40KG high torque digital servo;
1 x 25T adjustable metal servo arm;
1x Accessories (as shown)
