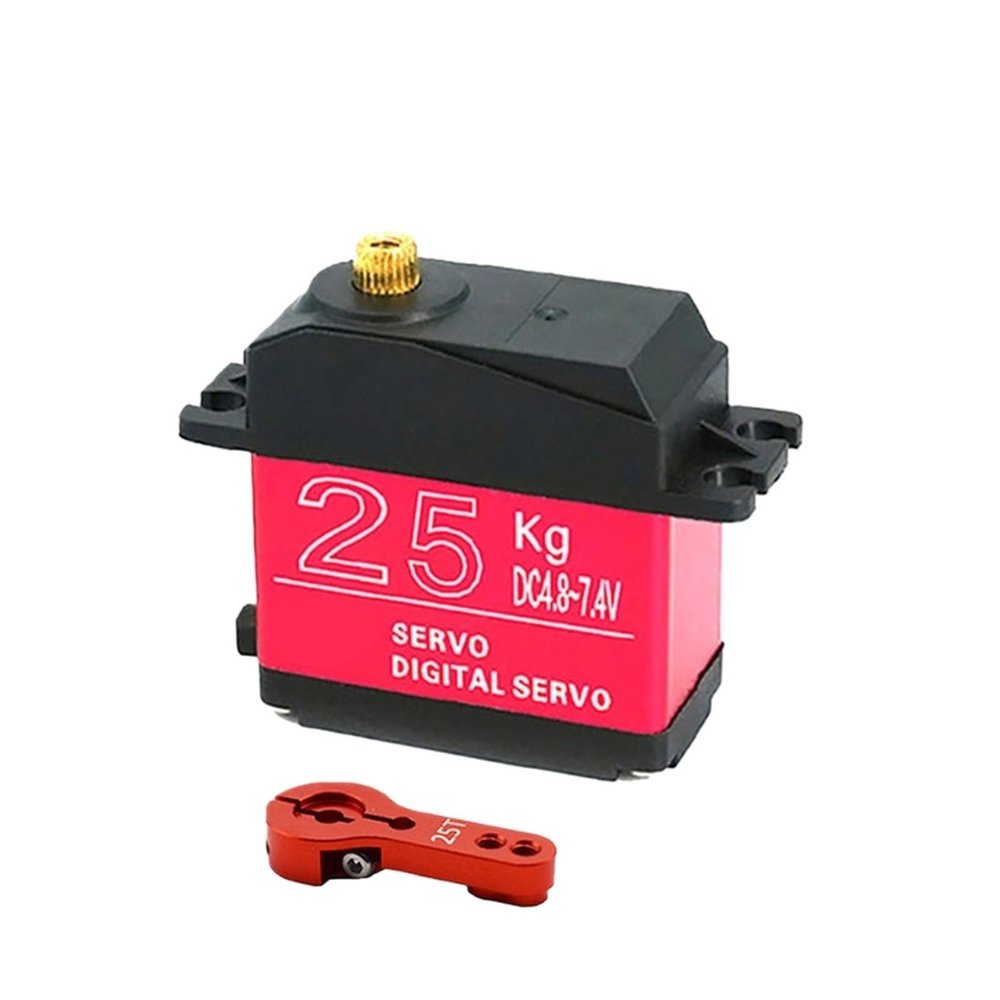

20KG 25KG 30KG Waterproof servo 180 Degree 270 Degree high Torque Digital servo Metal Gear 25T servo arm(1x25kg 270Degree Arm)

Description

• Servo Gears

Servo Gears
Product model: 20/25/30KG
Servo type: digital servo
Dimensions: 40*20*46mm
Operating voltage: 3.7-7.2VDC
Metal teeth (customizable) working torque: 20.0kg/cm
Gear Type: Metal
Rotation angle: 180
Dead zone setting: 3 microseconds
Product weight: 68g
Operation speed: 0.15 seconds/60 degrees (5V); 0.13 seconds/60 degrees (6.8V)
Product list: steering gear, swing arm, shock-absorbing rubber sleeve, aluminum sleeve, fixing screws and other accessories
Working temperature: -20~+60
20KG servo: high precision metal gears, hard anodized
CNC aluminum alloy middle shell,
Control system: PWM control (1500u-sec as the center point)
Working voltage: 4.8V6V
Working temperature: -20C+60C
Torque: 4.8V /17.2kg.cm
6.0V/20.3kg.cm
Idle speed: 4.8V/0.15s/60 degrees
6.0V/0.13s/60C
Steering angle: 180 / 270 degrees Idle current: 4.8V / 470mA 6.0V / 650mA
Load current: 4.8V/750mA 6.0V/950mA
Dead zone: 2usec
Lifespan: >15000 times without load
Moving angle: 6010
Driver type: MOS driver
Motor type: core motor
Potentiometer Type: Direct Drive
Signal Booster Type: Digital
Size: 40.5X20.2X40.3mm
Weight: 62g (without accessories)
Ball bearing: 2BB
Gear material: Metal gear
Shell material: PA66+fiber 40%
Cable length: 260mm
Wire Gauge Number and Type: 26AWG, JR Brown Wire: Negative
Red wire: positive
Orange line: signal

25KG Server:
Applicable environmental conditions:
1. Storage temperature range: -30C-80C
2. Operating temperature range: -25C-70C
Standard test environment:
1. Temperature range: -25C-70C
2. Humidity range: 65%10%
Mechanical Specifications:
1. Size: 40.0*20.5*40.5mm
2.Weight: 56g2g
3. Gear type: 5 metal
4. Limit angle: 360 5. Bearing: 2BB
6. Horn gear spline: 25T Diameter: 5.9mm
7. Speaker type: plastic, POM
8. Shell: engineering plastic (PBT) + aluminum alloy
9. Cable length: 320mm5mm
10. Motor: Carbon brush motor
Specification:
1. Working voltage: 4.8V - 7.2V
2. No-load speed: 0.18 seconds/60-0.14 seconds/60
3. Operating current: 140mA-200mA
4. Peak stall torque: 23.5kg.cm-26.8kg.cm
5. Locked rotor current: 2600mA10%-3400mA10%
6. Operating voltage range: 4.8-7.2V
Control specifications:
1. Command signal: pulse width modification
2. Amplifier type: digital controller
3. Pulse width range: 500-2500usec
4. Neutral position: 1500usec
5. Operating angle: 1803 (500-2500usec)
6. Dead zone width: 5 usec
7. Rotation direction counterclockwise: (1000-2000usec)
Package Includes:
1 Server (red/blue optional)
