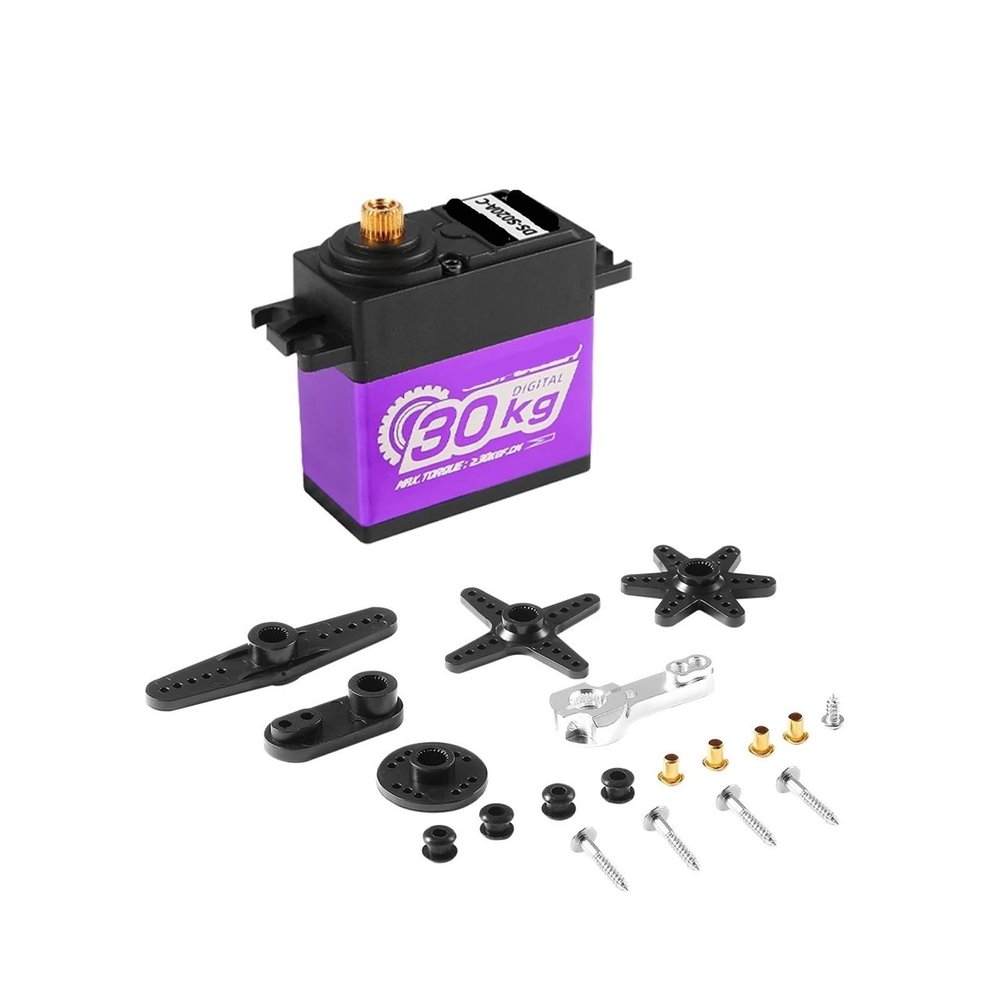

20KG 30KG Servo Metal Gear Waterproof Servo Suitable for 1/8 1/10 300 Degrees(30KG 180 Degree PU)

Description

• Servo Gears

Servo Gears
Specification:
Product Name: S020B-C
Quantity: 1 piece/4 pieces
Color: Red/Blue/Purple
Working voltage: 6.0~7.4V DC
Maximum torque: 6.0V22.0kgf.cm; 7.4V28.0kgf.cm
No-load speed: 6.0V0.26s/60; 7.4V0.22s/60
Stalled rotor current: 6.0V 3000mA; 7.4V 3600mA
Current consumption* (no load): 6.0V 130mA; 7.4V150mA
Maximum working stroke angle: 18010/30010 (500~2500 us)
Dead zone width: 4us
Mechanical limit angle: 360
Communication interface: PWM
Motor type: Iron core motor
Case material: ABS
Gear set material: metal gear
Weight: 70 g
Dimensions: 4920.244.30mm
Cable length: JR 270MM5mm
Package Included:
1/4PCS * 20KG digital servo
1 /4PCS * Servo Arm Accessories
1 /4PCS * 25T metal arm
30KG digital server:
Specification:
Product name: DSpower S020A-C
Quantity: 1 piece/4 pieces
Color: Red/Blue/Purple
Working voltage: 6.0~7.4V DC
Maximum torque: 6.0V25.0kgf.cm; 7.4V32.0kgf.cm
No-load speed: 6.0V0.20s/60; 7.4V0.17s/60
Stalled rotor current: 6.0V 4500mA; 7.4V6000mA
Current consumption* (no load): 6.0V 150mA; 7.4V180mA
Maximum working stroke angle: 18010/30010 (500~2500 us)
Dead zone width: 4us
Mechanical limit angle: 360
Communication interface: PWM
Motor type: Iron core motor
Case material: ABS
Gear set material: metal gear
Weight: 70 g
Dimensions: 4920.244.30mm
Cable length: JR 270MM5mm
Package Included:
1/4PCS * 30KG digital servo
1 /4PCS * Servo Arm Accessories
1 /4PCS * 25T metal arm
