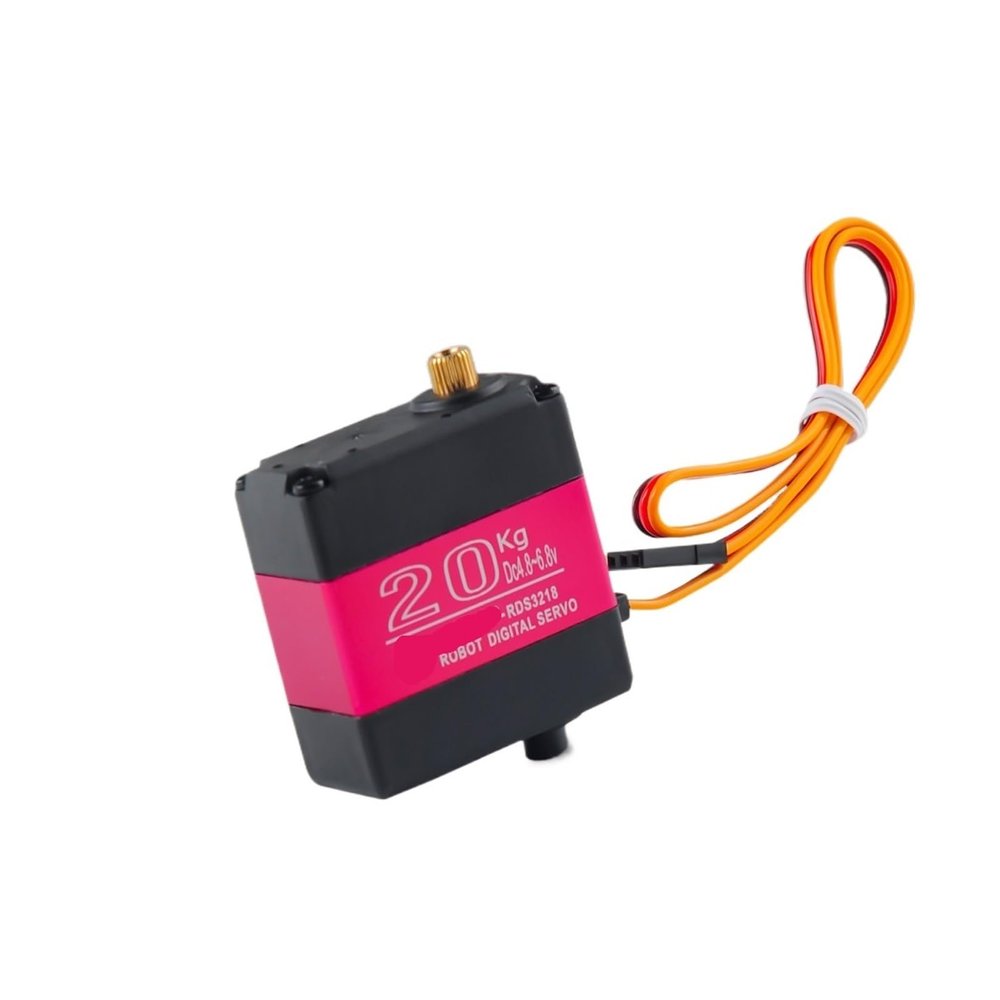

20KG RDS3218MG Digital Server with U-Shaped Bracket IP66 Waterproof 180 Degrees

Description

• Servo Gears

Servo Gears
Specification:
Stall Torque (5V): 19 kg/cm (263.8 oz/in)
Stall Torque (6.8V): 21.5 kg/cm (298.5 oz/in)
Dead zone: 3s
Speed: 0.16 sec/60 (5V) / 0.14 sec/60 (6.8V)
Working voltage: 4.8~6.8V DC
Motor type: DC motor
Gear Type: Copper and Aluminum
Working frequency 1520s 333hz
CE certification is
Dimensions 40 x 20 x 405 mm (1.58 x 0.79 x 1.60 in)
Package Includes:
1 X DS3218 Digital Servo 20KG
120KG RDS3218MG digital servo with U-shaped bracket IP66 waterproof 180 degrees suitable for robots
describe:
Application environment conditions
Storage temperature range: -30C~80C
Operating temperature range: -15C~70C
Operating voltage range: 4.8-6.8V
Mechanical specifications
Size: 40*20*40.5mm
Weight: 60 g
Gear Ratio: 275
Bearing: Double bearing
Connecting wire: 3005mm
Motor: 3 poles
Waterproof performance: IP66
specifications
Working voltage: 5V
Idle current (when stopped): 4mA
Running speed (no load): 0.16 seconds/60
Stall torque (locked): 18 kg-cm
Stall current (when locked): 1.8A
specifications
Working voltage: 5V 6.8V
Idle current (when stopped): 4mA 5mA
Running speed (no load): 0.16 seconds/60 0.14 seconds/60
Stall torque (locked): 18 kg-cm 21.5 kg-cm
Stall current (locked): 1.8A 2.2A
Control Specifications
Control system: PWM (Pulse Width Modulation
Pulse width range: 500~2500usec
Neutral position: 1500usec
Operating angle: 180 or 270 (500~2500u seconds)
Dead band width: 3 microseconds
Working frequency: 50-330Hz
Rotation direction: counterclockwise (500~2500 microseconds)
Package Includes:
1
Housing material: plastic and aluminum
Gear material: metal (copper gear)
Motor material: iron core motor
