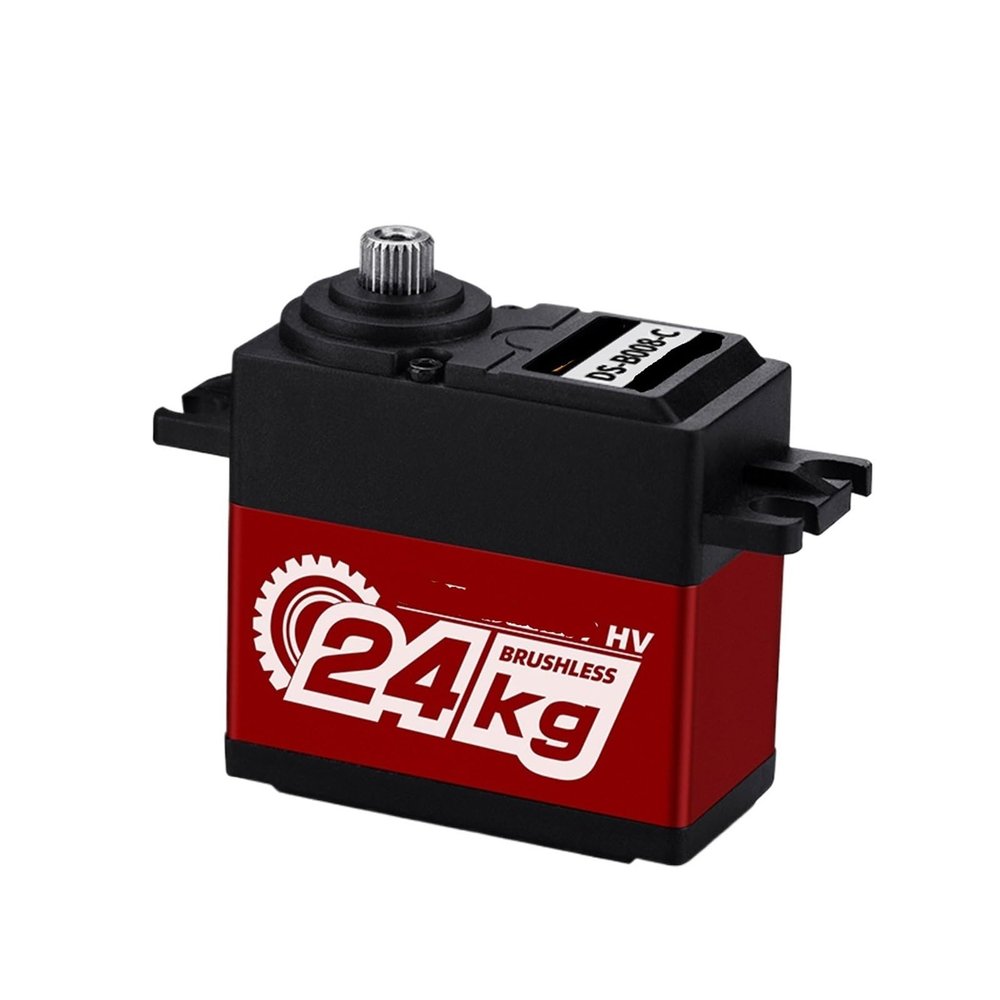

24KG brushless servo Metal Pinion Waterproof servo high Speed and high Torque Suitable for 1/8 1/10

Description

• Servo Gears

Servo Gears
Specification:
Product Name: B008-C
Quantity: 1 piece
Working voltage: 6.0~7.4V DC
Maximum torque: 6.0V25.0kgf.cm; 7.4V30.0kgf.cm
No-load speed: 6.0V0.15s/60; 7.4V0.12s/60
Stalled rotor current: 6.0V 5200mA; 7.4V 6200mA
Current consumption* (no load): 6.0V 120mA; 7.4V130mA
Maximum operating travel angle: 18010 (500~2500 us)
Dead zone width: 3us
Mechanical limit angle: 360
Communication interface: PWM
Motor type: brushless motor
Case material: ABS
Gear set material: metal gear
Weight: 64 g
Dimensions: 4920.238.60mm
Cable length: JR 270MM5mm
Package Included:
1 * 24KG Brushless Servo
1 * Servo Arm Accessories
