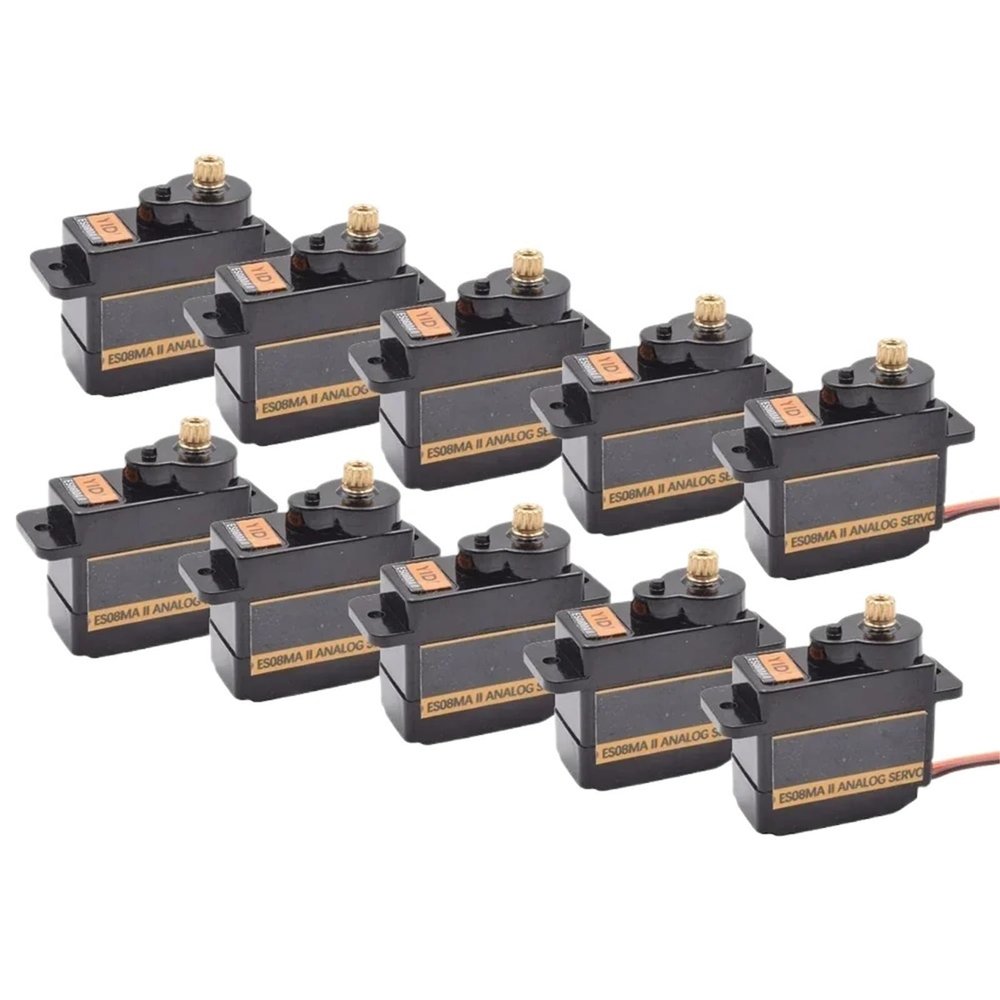

2/4pcs ES08MA II ES08MAII Metal Gear Servomotor Analog RC Servo Motor(Metal Gear,4PCS)

Description

• Alternators

Alternators
Specification:
Type: ES08MA II
Rotate Angle: 0-180
Size: 23 x 11.5 x 24mm
Gear Material: Plastic/Metal
Operating Voltage: 4.8V-6.0V
Operating Current: 200mA/60
Operating Speed: 0.12sec/60 (4.8V); 0.10sec/60 (6V)
Stall Torque: 1.6kg/cm (4.8V); 2.0kg/cm (6V)
Dead Band: 1-2usec
Operating Mode: Analog
Connector Wire Length: 25cm(Brown: Negative; Red: Positive; Orange: Pulse Input)
Accessories: Multi-arm, Fixing screws(AS the picture shows)
Connector Type: Futaba/JR compatible
Scope: Small and medium-sized electric model aircraft and model
Steering Gear Control:
The control of the steering gear generally requires a time base pulse of about 20ms, and the high level part of the pulse is generally the angle control pulse part in the range of 0.5ms~2.5ms.
The corresponding control relationship is as follows:
0.5ms---------------0 degrees;
1.0ms--------------45 degrees;
1.5ms--------------90 degrees;
2.0ms--------------135 degrees;
2.5ms--------------180 degrees
Please use a professional PWM Servo Controller to control the angle
Packing: 2 x Servo Motor or 4 x Servo Motor for option(with Accessories)
Torque : 1.6kg/cm
Model Number : ES08MA II
Continuous Current(A) : 200mA/60 degrees
Type : Servo Motor
Protect Feature : Totally Enclosed
Gear Material : Plastic/Metal
Operating Voltage : 4.8V-6.0V
Rotate Angle : 0-180
