2g 3.7g 4.3g 5g 6g 8g Digital Servo Mini Servo F949S K110S(5g Servo)

Description

• Servo Gears

Servo Gears
2g digital servo:
Specification:
Product Name: M005
Quantity: 1/5/10/20 pieces
Working voltage: 3.7~4.2V DC
Maximum torque: 3.7V0.25kgf.cm; 4.2V0.3kgf.cm
No-load speed: 3.7V0.08s/60; 4.2V0.06s/60
Stalled rotor current: 3.7V320mA; 4.2V350mA
Current consumption* (no load): 3.7V 50mA; 4.2V60mA
Maximum operating travel angle: 18010 (500~2500 us)
Dead zone width: 4 us
Mechanical limit angle: 360
Communication interface: PWM
Motor type: Coreless motor
Case material: ABS
Gear set material: plastic gear
Weight: 2.2 g
Dimensions: 16.78.217mm
Connector cable length: JR 2005mm
3.7g digital servo:
Specification:
Product name: DSpower S001
Quantity: 1 piece
Working voltage: 3.7~4.2V DC
Maximum torque: 3.7V0.4kgf.cm; 4.2V0.45kgf.cm
No-load speed: 3.7V0.08s/60; 4.2V0.06s/60
Stalled rotor current: 3.7V330mA; 4.2V380mA
Current consumption* (no load): 3.7V 50mA; 4.2V60mA
Maximum operating travel angle: 18010 (500~2500 us)
Dead zone width: 4 us
Mechanical limit angle: 360
Communication interface: PWM
Motor type: Coreless motor
Case material: ABS
Gear set material: plastic gear
Weight: 3.7 g
Dimensions: 20.28.517.5mm
Connector cable length: JR 2005mm
Package Included:
1 * 3.7G digital servo
1 * Servo Arm Accessories
4.3g plastic gear servo:
Specification:
Product name: DSpower S002
Quantity: 1 piece
Working voltage: 3.7~5.0V DC
Maximum torque: 3.7V0.60kgf.cm; 5.0V0.70kgf.cm
No-load speed: 3.7V0.12s/60; 5.0V0.10s/60
Stalled rotor current: 3.7V550mA; 5.0V650mA
Current consumption* (no load): 3.7V 80mA; 5.0V100mA
Maximum operating travel angle: 18010 (500~2500 us)
Dead zone width: 2 us
Mechanical limit angle: 360
Communication interface: PWM
Motor type: Coreless motor
Case material: ABS
Gear set material: plastic gear
Weight: 4.3 g
Dimensions: 27.48.522.3mm
Connector cable length: JR 2005mm
Package Included:
1 * 4.3G digital servo
1 * Servo Arm Accessories
4.3g Metal Gear Servo:
Specification:
Product name: DSpower S002M
Quantity: 1 piece
Working voltage: 4.8~6.0V DC
Maximum torque: 4.8V0.58kgf.cm; 6.0V0.65kgf.cm
No-load speed: 4.8V0.15s/60; 6.0V0.12s/60
Stalled rotor current: 4.8V500mA; 6.0V550mA
Current consumption* (no load): 4.8V 80mA; 6.0V90mA
Maximum action travel angle: 18010(500~2500s)
Dead zone width: 4 us
Mechanical limit angle: 360
Communication interface: PWM
Motor type: Coreless motor
Case material: ABS
Gear set material: metal gear
Weight: 5.8 g
Dimensions: 27.48.522.3mm
Connector cable length: JR 2005mm
Package Included:
1 * 4.3G digital servo
1 * Servo Arm Accessories

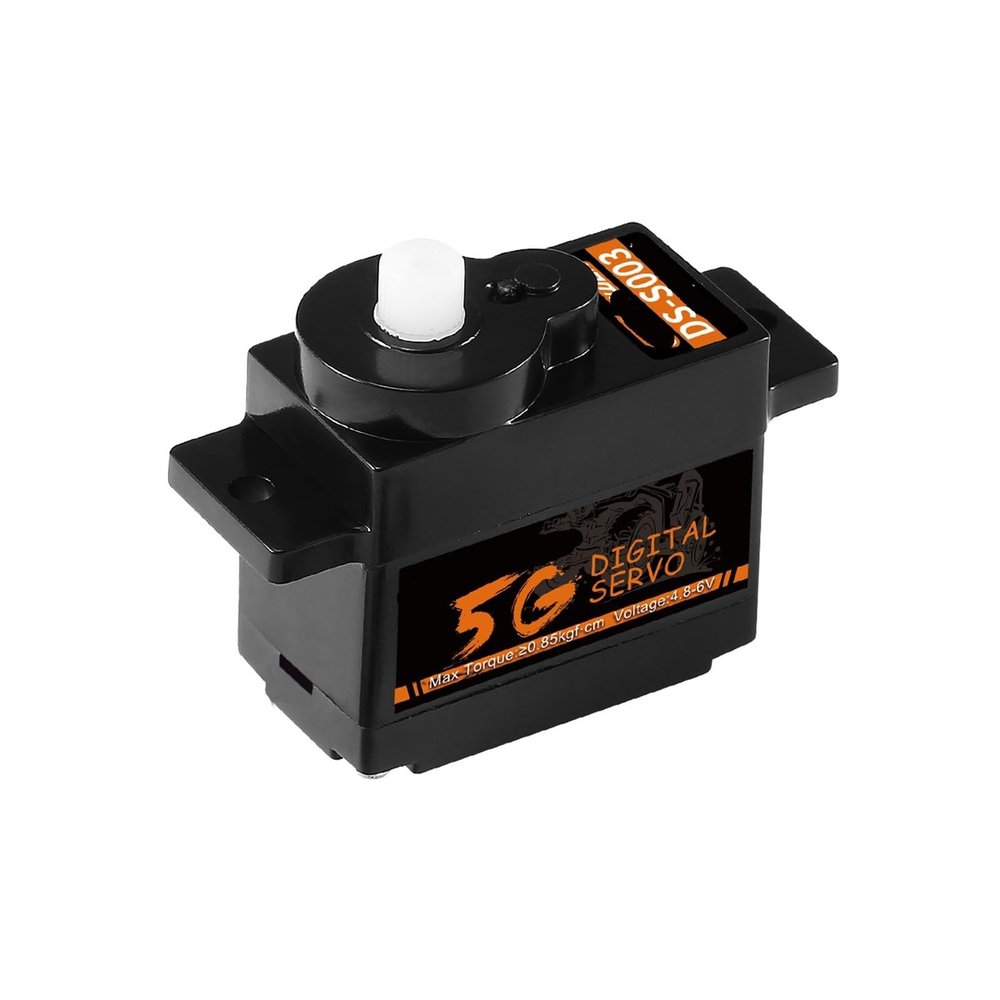

5G Metal Gear Servo:
Specification:
Product name: DSpower S003
Quantity: 1 piece
Working voltage: 4.8~6.0V DC
Maximum torque: 4.8V0.80kgf.cm; 6.0V0.85kgf.cm
No-load speed: 4.8V0.08s/60; 6.0V0.07s/60
Stalled rotor current: 4.8V800mA; 6.0V950mA
Current consumption* (no load): 4.8V 100mA; 6.0V110mA
Maximum action travel angle: 9010(1000~2000s)
Dead zone width: 3 us
Mechanical limit angle: 210
Communication interface: PWM
Motor type: Coreless motor
Case material: ABS
Gear set material: plastic gear
Weight: 5g
Dimensions: 2011.521.3mm
Connector cable length: JR 2005mm
Package Included:
1 * 5G digital servo
1 * Servo Arm Accessories
6g digital server:
Specification:
Product name: DSpower S004
Quantity: 1 piece
Working voltage: 4.8~6.0V DC
Maximum torque: 4.8V0.90kgf.cm; 6.0V0.95kgf.cm
No-load speed: 4.8V0.10s/60; 6.0V0.08s/60
Stalled rotor current: 4.8V700mA; 6.0V800mA
Current consumption* (no load): 4.8V 90mA; 6.0V100mA
Maximum action travel angle: 18010(500~2500s)
Dead zone width: 5 us
Mechanical limit angle: 360
Communication interface: PWM
Motor type: Coreless motor
Case material: ABS
Gear set material: plastic gear
Weight: 6 g
Dimensions: 22.511.521.3mm
Connector cable length: JR 2005mm
Package Included:
1 * 6G digital servo
1 * Servo Arm Accessories
8g digital server:
Specification:
Product name: DSpower S005
Quantity: 1 piece
Working voltage: 4.8~6.0V DC
Maximum torque: 4.8V1.10kgf.cm; 6.0V1.40kgf.cm
No-load speed: 4.8V0.14s/60; 6.0V0.12s/60
Stalled rotor current: 4.8V680mA; 6.0V780mA
Current consumption* (no load): 4.8V 130mA; 6.0V 150mA
Maximum action travel angle: 18010(500~2500s)
Dead zone width: 3us
Mechanical limit angle: 360
Communication interface: PWM
Motor type: Coreless motor
Case material: ABS
Gear set material: plastic gear
Weight: 8 g
Dimensions: 26.511.522.8mm
Connector cable length: JR 2005mm
Package Included:
1 * 8G digital servo
1 * Servo Arm Accessories
