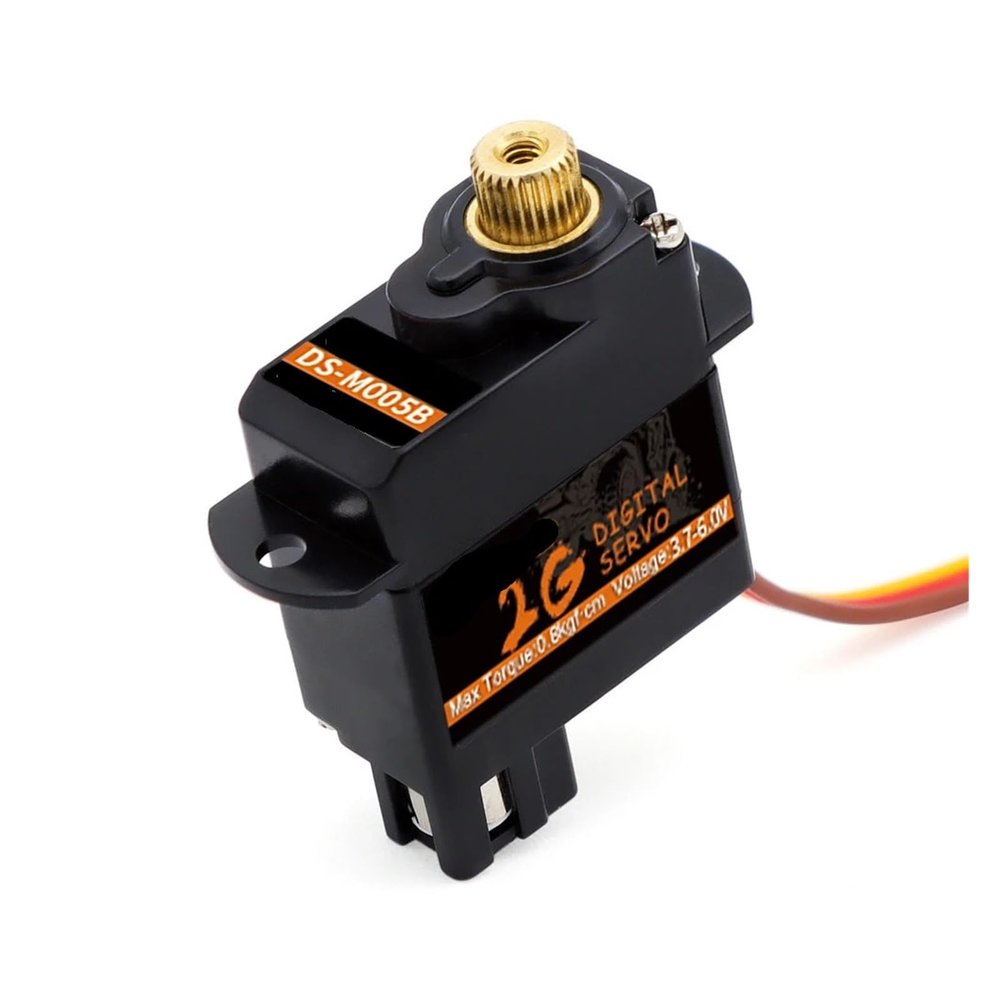

2g Motor servo Plastic/Metal Gear servo(1Pcs M005B JST1.25)

Description

• Servo Gears

Servo Gears
Specification:
Product Name: M005
Quantity: 1 piece
Working voltage: 3.7~4.2V DC
Maximum torque: 3.7V0.25kgf.cm; 4.2V0.3kgf.cm
No-load speed: 3.7V0.08s/60; 4.2V0.06s/60
Stalled rotor current: 3.7V320mA; 4.2V350mA
Current consumption* (no load): 3.7V 50mA; 4.2V60mA
Maximum operating travel angle: 18010 (500~2500 us)
Dead zone width: 1us
Mechanical limit angle: 360
Communication interface: PWM
Motor type: Coreless motor
Case material: ABS
Gear set material: plastic gear
Weight: 2.2 g
Dimensions: 16.78.217mm
Cable length: JS1.0/JST1.25 2005mm
Package Included:
1 * 2G digital servo
1 * Servo Arm Accessories
M005B Metal Gear:
feature:
High performance digital standard
Low noise, long life
Small size, high torque
Metal gears equipped with double ball bearings for less noise and more stable torque
Specification:
Product name: DSpower M005B
Quantity: 1 piece
Working voltage: 3.7~6V DC
Maximum torque: 4.8V0.45kgf.cm; 6V0.5kgf.cm
No-load speed: 3.7V0.08s/60; 4.2V0.06s/60
Stalled rotor current: 4.8V550mA; 6V600mA
Current consumption* (no load): 4.8V60mA; 6V80mA
Maximum operating travel angle: 1801 (500~2500 us)
Dead zone width: 1 us
Mechanical limit angle: 360
Communication interface: PWM
Motor type: Coreless motor
Case material: ABS
Gear set material: metal gear
Weight: 2.2 g
Dimensions: 16.78.217mm
Connector cable length: JR 2005mm
Package Included:
1 * 2G digital servo
1 * Servo Arm Accessories
