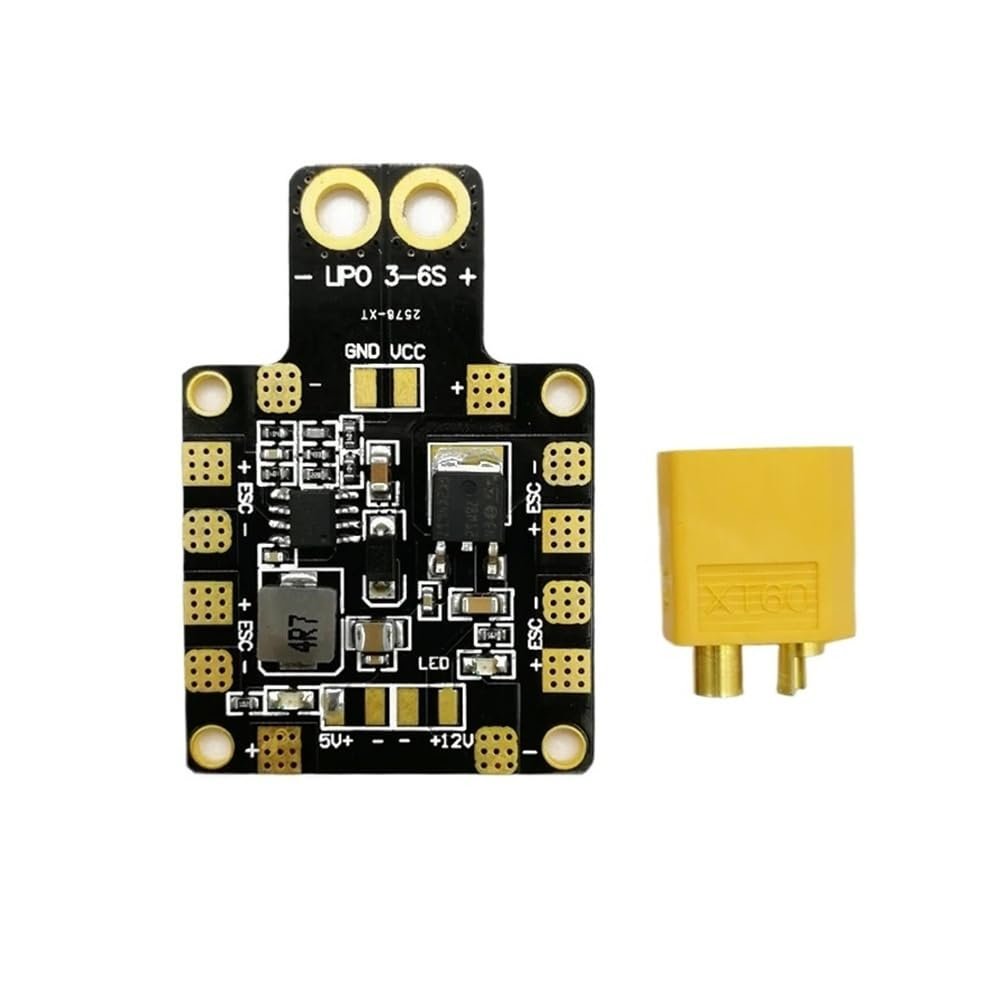

30.5 * 30.5mm 3-6S Power Hub PDB XT60 Power Distribution Board PDB-XT60 With BEC 5V/12V For FPV Drone Quadcopter QAV210 250

Description

• Compact and lightweight structure: size 36x50x4mm excluding XT60, suitable for a variety of compact flight platforms
• Efficient power transmission design: supports 2S-6S input with 2oz copper foil to improve current carrying capacity
• Four-layer PCB layered layout: current and BEC independent design to reduce signal interference and improve stability
• Dual-channel regulated output: integrated 5V/3A synchronous rectification BEC and 12V/0.5A linear BEC to meet various power supply needs
• Multi-ESC adaptation solution: equipped with 6 pairs of power pads Fit For X-type or H-type layout for flexible assembly
• Durable Material: Made of composite materials for excellent bending resistance.
• Balanced Design: Dynamically balanced to reduce vibration and enhance stability.
• Easy Installation: Snap-on connection design allows for quick replacement.

Physical characteristics:
- Dimensions: 36 x 50 x 4 mm (without XT60)
- Installation dimensions: 30.5 x 30.5mm, 3mm
- : 7.5g (without XT60), 11g (with XT60)
- Support 2S-6S input, 2oz copper foil ensures current flow;
Four-layer PCB, current and BEC layered design to avoid current interference with BEC ground wire;
6 pairs of ESC power supply pads, suitable for X-type or H-type rack ESC layout;
Dual BEC: 5V/3A synchronous rectification switch BEC, 12V/0.5A linear BEC;
Fit For racks with upper board width less than 48mm
Breakthrough board withstand current 4*25A, short-term 4*30A (10 seconds)
BEC 5V ripple: 40mV (Vin=16V, Vout=5V@2A load)
BEC 12V linear regulator, very low ripple, will not interfere with image signals;
Size: 52*36*3mm, total including XT60 11g
Mounting hole spacing: 30.5mm, hole diameter: 3mm
The package contains the Amass XT60 , which needs to be soldered to the distribution board by the user;
Quantity: 1 piece
Wheelbase: bottom plate
Size: 30.5*30.5mm
Technical parameters: value 2
Model: XT60 power distribution board
Applicable models: fixed-wing aircraft
Tools and consumables: assembly type
Four-wheel drive attributes: assembly type
control peripheral equipment: discharger
Upgrade parts/accessories: frame
control parts and accessories: speed regulator
