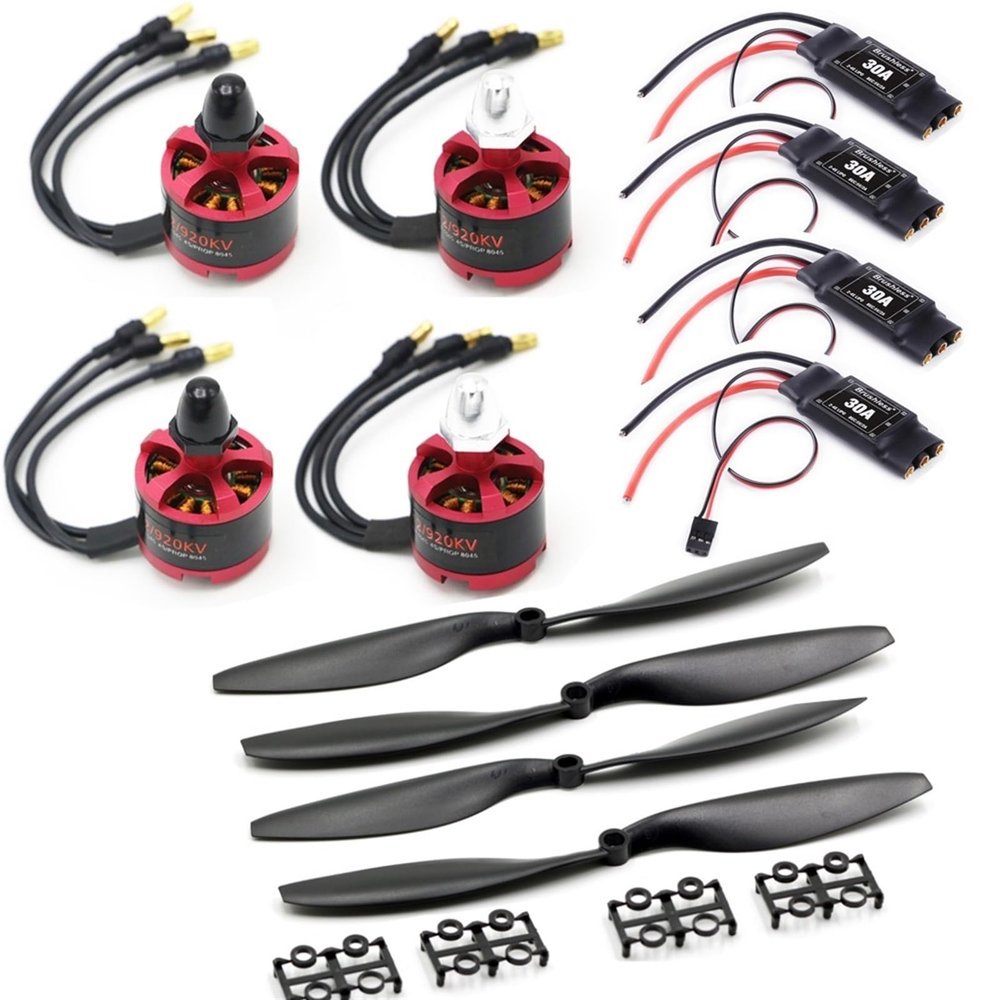

30A Brushless ESC with 3.5mm Connector 2212 920KV CW CCW Brushless Motor 1045 Propeller for F450 F550 S550 F550 Multicopter(4 x Motor Esc props)

Description

• Original Brand New accessoriesThe damaged original can be replaced
• Durable and easy-to-use products
• Easy to instalfine craftsmanship
• Perfect match with your machineMake your device more beautiful
• Durable wear-resistant and long lifetime

2212 920KV CW Brushelss motor:
Outer diameter
28.0 mm
24.0 mm
920kv
Rotation direction Right right hand tread
30A ESC:
Continuous current 30A, instant 35A, 40A for 10 seconds.
Dimensions / weight: 45 * 24 * 11 (mm), 25 grams (including line)
Voltage range: 4V-16V
Number of batteries: 2-4LIPO (4LIPO does not allow BEC output)
BEC output: 2A continuous, (instantaneous 3A)
2LIPO 4-5 Miniature Servo
3LIPO 3-4 micro servo
Protective function:
Automatically select 2-3LIPO, the protection voltage is 6V/9V respectively;
Automatically select NIMH, the protection voltage of each section is 0.8V;
Safe start, throttle position is not allowed to start;
Temperature protection, 110 degree surface temperature shutdown;
Out of control protection, no signal stops after 1 second.
Performance description:
The upper limit of the speed is 210,000 rpm in 2 poles, 35,000 rpm in 12 poles, and 42,000 rpm in 14 poles.
8KHz PWM control with speed control curve.
Automatic throttle adaptation for more remote control devices.
With BEC, the MCU separates the power supply and works more stably.
