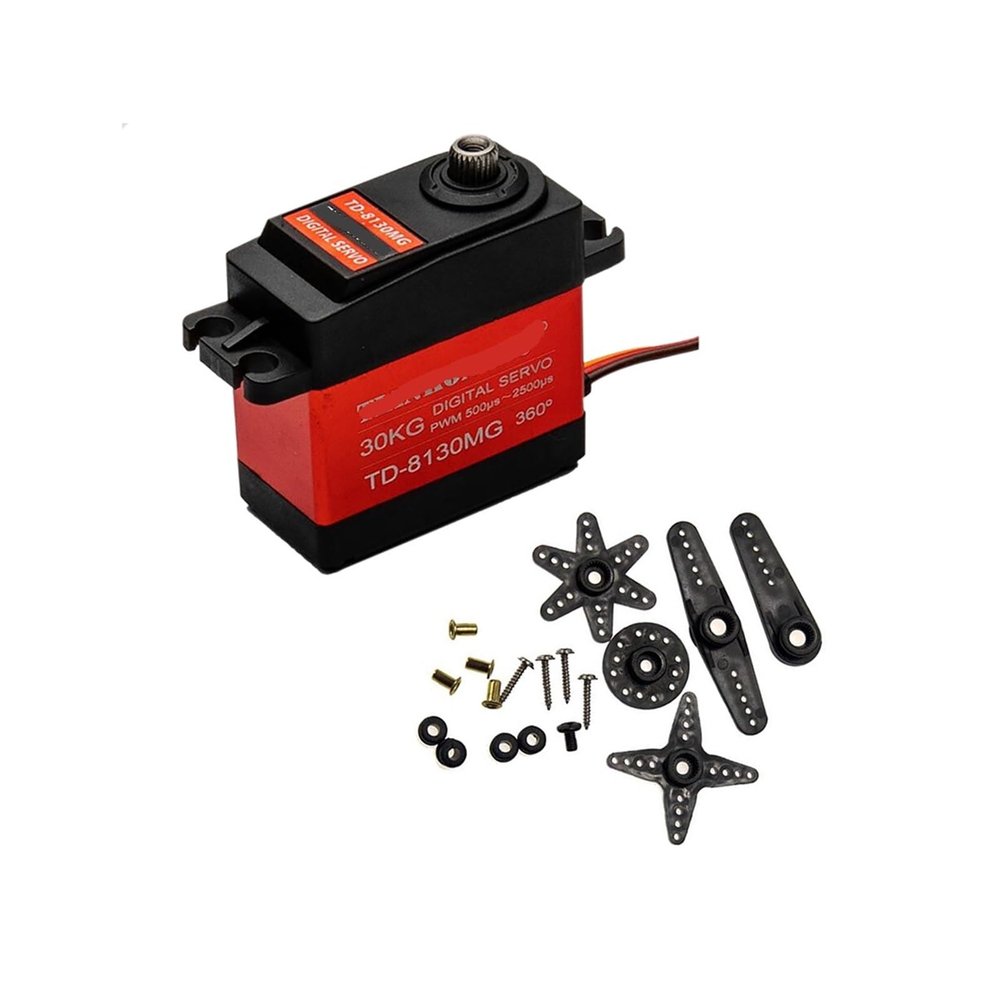

30Kg Digital 180 270 360 Degree Angle controllable servo Large Torque Metal Shell Waterproof Robotic arm TD8130+ arm Parts(30kg 180 Degree)

Description

• Servo Gears

Servo Gears
30Kg digital 180 270 360 degree angle controllable servo large torque metal shell waterproof robotic arm TD8130+ arm parts
Waterproof 30KG 180 degree high torque digital hollow cup servo angle controllable
Specifications
Storage temperature range: -30C to 80C
Operating temperature range: -25C to 70C
Temperature range: -25C-70C
Humidity range: 65%10%
Size: 40.0*20.5*40.5mm
Weight: 56g5%
Gear Type: 5 Metal
Limit angle: 180
- Bearing: 2BB
Horn gear spline: 25T OD: 5.9mm
Speaker Type: Plastic, POM
Engineering plastic (PBT) + aluminum alloy
Connecting wire: 320mm5mm
Motor: Carbon brush motor
Splashproof: No
Working voltage: 4.8V-7.2V
Idle current: mA
No-load speed: 0.24 sec/60-0.17 sec/60
Operating current: 140mA-200mA
Peak stall torque: 29.5kg.cm-32kg.cm
Locked rotor current: 2600mA10%-3400mA10%
Operating voltage range: 4.8-7.2V
Command signal: Pulse width modification
Amplifier Type: Digital Controller
Pulse width range: 500-2500usec
Neutral position: 1500usec
Operating angle: 1803 (500-2500usec)
Dead band width: 5 microseconds
Rotation direction: counterclockwise (1000-2000usec)
Waterproof 30KG 270 degree high torque digital hollow cup servo angle controllable
Specifications
Storage temperature range: -30C to 80C
Operating temperature range: -25C to 70C
Temperature range: -25C-70C
Humidity range: 65%10%
Size: 40.0*20.5*40.5mm
Weight: 56g5%
Gear Type: 5 Metal
Limit angle: 270
- Bearing: 2BB
Horn gear spline: 25T OD: 5.9mm
Speaker Type: Plastic, POM
Engineering plastic (PBT) + aluminum alloy
Connecting wire: 320mm5mm
Motor: Carbon brush motor
Splashproof: No
Working voltage: 4.8V-7.2V
Idle current: mA
No-load speed: 0.24 sec/60-0.17 sec/60
Operating current: 140mA-200mA
Peak stall torque: 29.5kg.cm-32kg.cm
Locked rotor current: 2600mA10%-3400mA10%
Operating voltage range: 4.8-7.2V
Command signal: Pulse width modification
Amplifier Type: Digital Controller
Pulse width range: 500-2500usec
Neutral position: 1500usec
Operating angle: 1803 (500-2500usec)
Dead band width: 5 microseconds
Rotation direction: counterclockwise (1000-2000usec)
Waterproof 30KG 360 degree continuous rotation torque digital hollow cup servo
Specifications
Storage temperature range: -30C to 80C
Operating temperature range: -25C to 70C
Temperature range: -25C-70C
Humidity range: 65%10%
Size: 40.0*20.5*40.5mm
Weight: 56g5%
Gear Type: 5 Metal
Limit angle: 360
- Bearing: 2BB
Horn gear spline: 25T OD: 5.9mm
Speaker Type: Plastic, POM
Engineering plastic (PBT) + aluminum alloy
Connecting wire: 320mm5mm
Motor: Carbon brush motor
Splashproof: No
Working voltage: 4.8V-7.2V
Idle current: mA
No-load speed: 0.24 sec/60-0.17 sec/60
Operating current: 140mA-200mA
Peak stall torque: 29.5kg.cm-32kg.cm
Locked rotor current: 2600mA10%-3400mA10%
Operating voltage range: 4.8-7.2V
Command signal: Pulse width modification
Amplifier Type: Digital Controller
Pulse width range: 500-2500usec
Neutral position: 1500usec
Operating angle: 1803 (500-2500usec)
Dead band width: 5 microseconds
Rotation direction: counterclockwise (1000-2000usec)
