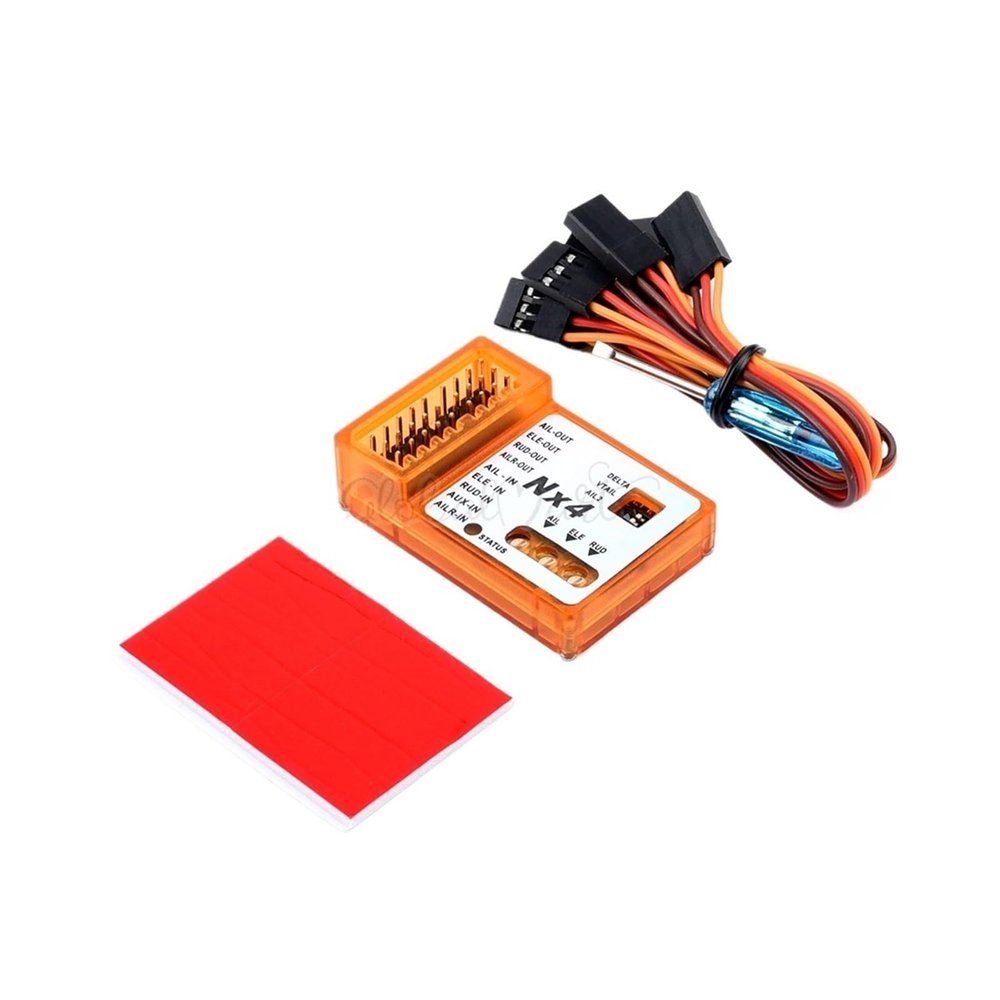

3D Flight Gyroscope Balance ZMR NX4 EVO PRO Flight Controller Board For RC Fixed-wing Aircraft Support Rate/Hold/Gyro Off Mode(NX4 PRO)

Description

• Precise 3D Balance Control: Equipped with a 3D flight gyroscope, it can accurately sense and correct the aircraft's flight attitude in various weather conditions, ensuring stable and precise flight.
• Multiple Flight Modes: Supports three modes: Rate, Hold, and Gyro Off, meeting the flight needs of different pilots in various scenarios, whether they are beginners practicing or experienced pilots showing off their skills.
• Wide Compatibility: Suitable for a variety of fixed-wing aircraft models such as single aileron, dual aileron, delta wing, and V-tail, with strong versatility.
• Convenient Gain Control: The gain can be adjusted through the remote control or the variable resistor on the control board to independently adjust the axis gain, allowing users to quickly adjust according to the flight conditions.
• Humanized Design: With dimensions of 43x28x15mm, it is small and lightweight, not adding too much burden to the aircraft. It also has an emergency mode to ensure flight safety and an automatic aileron leveling function.

Modname=ckeditor
modname=ckeditor
NX4 EVO Flight Controller:
Voltage scope: DC 4.5 6V
Response Frequency: 100Hz
Operating Temperature: 0-50C
Dimension: 43 x 28 x 15mm
Weight: 11g
Features:
Provides four levels of flight modes: 1- Beginner; 2 - Practice; 3 - Intermediate; 4 - Expert.
Four Model Types Support : singal aileron,dual ailerons,triangle and V-tail.
Two kinds of Gain Control Method supported:Control Gain from the radio,Independent Axis-Gain from the Variable resistor on the Controller board.
Emergency mode guarantee safety flight.
Automatic aileron leveling.
3D AVCS flight,Attitude locking.
Provide Y-wiring for aileron.
NX4 PRO Flight Controller:
Voltage scope: DC 5 6V
Dimension: 40mmx25mm
Weight: 6.5g
Features:
Four Model Types Support : singal aileron,dual ailerons,flapperons,deita and V-tail.
Three Flight Modes supported:
a.Rate Mode,Rate Mode for offset correction.
b.Hold Mode,HOLD mode for attitude hold.
c.Gyro-Off Mode,transsmiter control the plane directly.
Two kinds of Gain Control Method supported:Control Gain from the radio,Independent Axis-Gain from the Variable resistor on the Controller board.
Using superior algorithm,Bring a more comfortable and more sensitive sense of control.
Package Included: (Send it as your choice)
1 x NX4 EVO / NX4 PRO Flight Controller
==========
Hign-concerned Chemical : None
Is Electric : No Battery
Quantity : 1 pcs
Is it battery/power supply : N
Is it charger/adapter : N
Is Batteries Included : No
For Vehicle Type : Helicopters
Tool Supplies : Assembled class
RC Parts & Accs : Connectors/Wiring
Material : Metal
Use : Vehicles & Remote Control Toys
Certification : CE
Material : Composite Material
For Vehicle Type : Airplanes
Use : Vehicles & Remote Control Toys
Model Number : NX4 PRO / NX4 EVO Flight Controller
