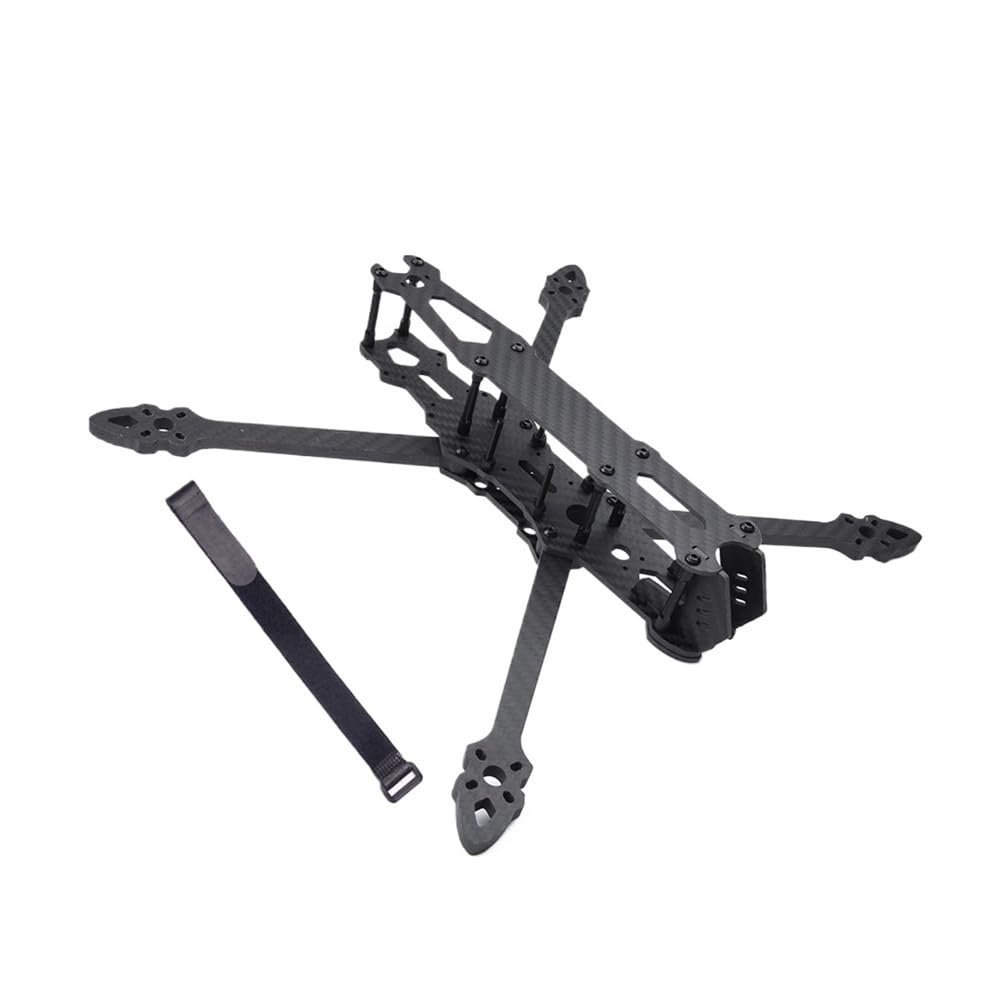

4 8" 367mm 9" 387mm with 6mm arm / 10" 427mm with 7.5mm arm FPV Racing Drone Quadcopter Freestyle Frame Kit(Mark4 V2 8Inch 367mm)

Description

• Solid X-shaped structure design: adopts multi-layer board combination structure with different thickness configurations
• Multi-size adaptation options: provides a variety of wheelbase specifications to cover the needs of different flight platforms from 7 to 10 inches
• Sufficient internal space layout: the internal height is 35mm, which is convenient for installing various control and transmission equipment
• Standard hole spacing is highly versatile: the installation hole spacing of flight control and image transmission equipment is adapted to mainstream accessories to enhance expansion capabilities
• Reinforced arm structure configuration: according to different size configurations, 6mm or 7.5mm arm thickness is provided to enhance load-bearing performance
• Durable Material: Made of composite materials for excellent bending resistance.
• Balanced Design: Dynamically balanced to reduce vibration and enhance stability.
• Easy Installation: Snap-on connection design allows for quick replacement.

Parameters:
Frame structure: X-type
Wheelbase: 295mm
Dimensions: 193.75mm * 223.06mm
Bottom plate thickness: 3.0mm
Middle plate thickness: 3.0mm
Upper plate thickness: 2.0mm
Arm thickness: 6.0mm
Camera side plate thickness: 2.5mm
Camera mounting hole distance: 19mm
Image transmission mounting hole distance: 20*20mm & 305*305mm
Flight control mounting hole distance: 20*20mm & 305*305mm
Internal space height: 35mm
Motor mounting hole position: 16*16mm & 19*19mm
Mark4 V2 8-inch 367mm carbon fiber frame parameters
Frame structure: X-type
Wheelbase: 367mm
Dimensions: 230.35mm * 278.52mm
Bottom plate thickness: 3.0mm
Middle plate thickness: 3.0mm
Upper plate thickness: 2.0mm
Arm thickness: 6.0mm
Connecting plate: 2.0mm
Camera side plate thickness: 2.5mm
Camera mounting hole distance: 19mm
Image transmission mounting hole distance: 20*20mm & 305*305mm
Flight control mounting hole distance: 20*20mm & 305*305mm
Inner space height: 35mm
Motor mounting hole position: 16*16mm & 19*19mm
Mark4 V2 9-inch 387mm carbon fiber frame
Parameters
Frame structure X-type
Wheelbase: 387mm
Dimensions: 234.35mm * 282.52mm
Bottom plate thickness: 3.0mm
Middle plate thickness: 3.0mm
Upper plate thickness: 2.0mm
Arm thickness: 6.0mm
Connecting plate: 2.0mm
Camera side plate thickness: 2.5mm
Camera mounting hole distance: 19mm
Image transmission mounting hole distance: 20*20mm & 305*305mm
Flight control mounting hole distance: 20*20mm & 305*305mm
Inner space height: 35mm
Motor mounting hole position: 16*16mm & 19*19mm Mark4 V2 10-inch 427mm carbon fiber frame parameters
Frame structure X-type
Wheelbase: 427mm
Size: 268.18mm*332.07mm
Bottom plate thickness: 3.0mm
Middle plate thickness: 3.0mm
Upper plate thickness: 2.0mm
Arm thickness: 7.5mm Connecting plate: 2.0mm
Camera side plate thickness: 2.5mm
Camera mounting hole distance: 19mm
Image transmission mounting hole distance: 20*20mm & 305*305mm
Flight control mounting hole distance: 20*20mm & 305*305mm
Internal space height: 35mm
Motor mounting hole position: 16*16mm & 19*19mm Package content: Please choose according to your needs 1 set of Mark4 V2 7-inch/8-inch/9-inch/10-inch carbon fiber frame kit
Note:
1. The arm thickness of the 8-inch/9-inch frame is 6mm,
The arm thickness of the 10-inch frame is 7.5mm.
2. The Mark4 V2 7-inch frame does not come with guardrails.
