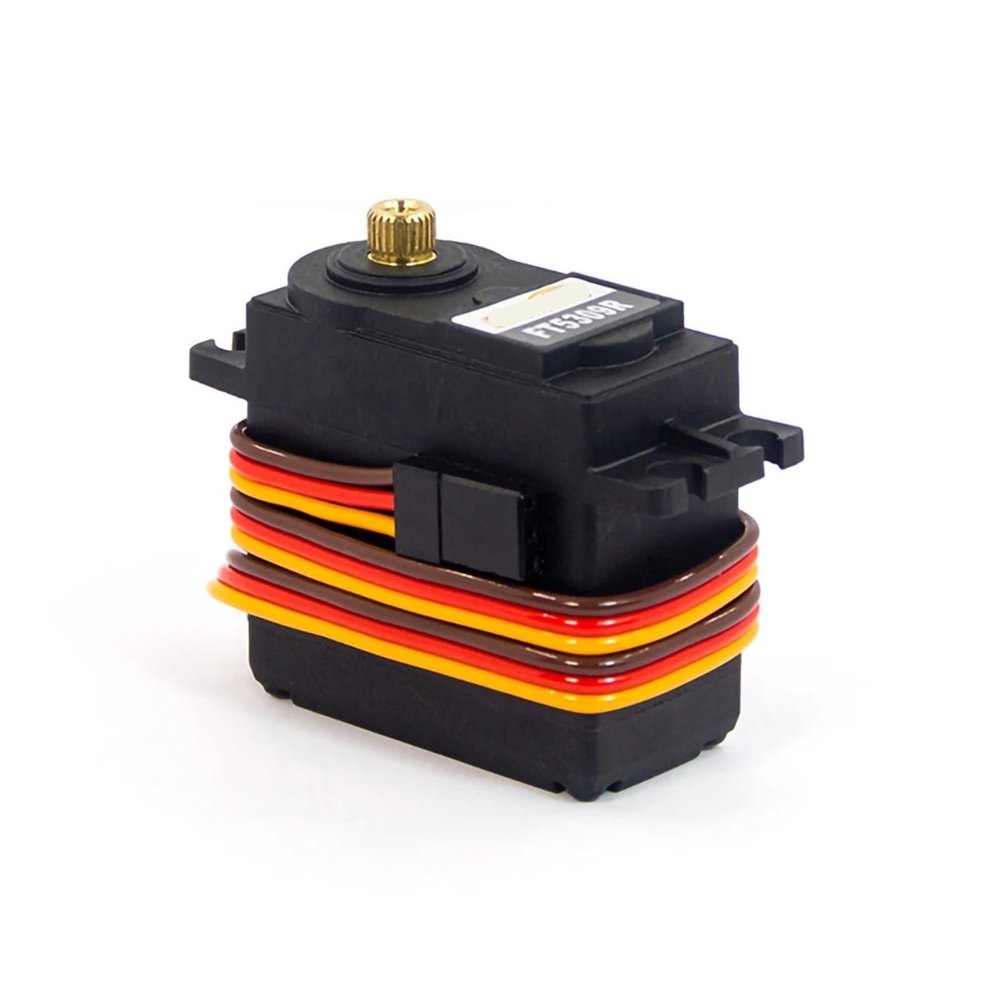

4 Pack 6V 9KG FT5309R 160RPM Standard Size Digital Servo High Speed 360 Continuous Rotation Metal Brushed Motor Servo

Description

• Servo Gears

Servo Gears
No. Item Specifications
1 Size A: 40 mm B: 20.1 mm C: 38.8 mm D: 54 mm
2. Weight: 64g
3 Gear Type Copper Gear
4. Unlimited positioning angle
5 Bearings 2 Ball bearings
6 horn gear spline 25T (5.9mm)
7 Speaker Type Plastic,POM
8 boxes of nylon and fiberglass
9 Connecting wire 300mm 5mm (black and white)
10 motor metal brush motor
11 Splashproof
Specifications (Performance Functions)
No. Operating voltage range
4.8V 6V
1 Idle current (when stopped) 5mA 5mA
2 No-load speed 125RPM 160RPM
2 Operating current (no load) 260 mA 300 mA
4 Peak stall torque 9.2kg.cm 10.5kg.cm
127.98 oz-in 146.07 oz-in
5. Locked-rotor current 2500mA 3000mA
Note: * defines the average value when the servo is running without load
Control Specifications:
No. Item Specifications
1 Command signal pulse width modification
2-Amplifier Type Digital Comparator
3 Pulse width range 500~2500sec
4 Neutral position 1500 sec
5. Operating angle 360 continuous rotation
6 Dead band width 150040 sec (stop pulse width)
7 Rotation direction clockwise (1500~2000 sec)
Stop (150020 microseconds)
Counterclockwise (1500~1000 sec)
