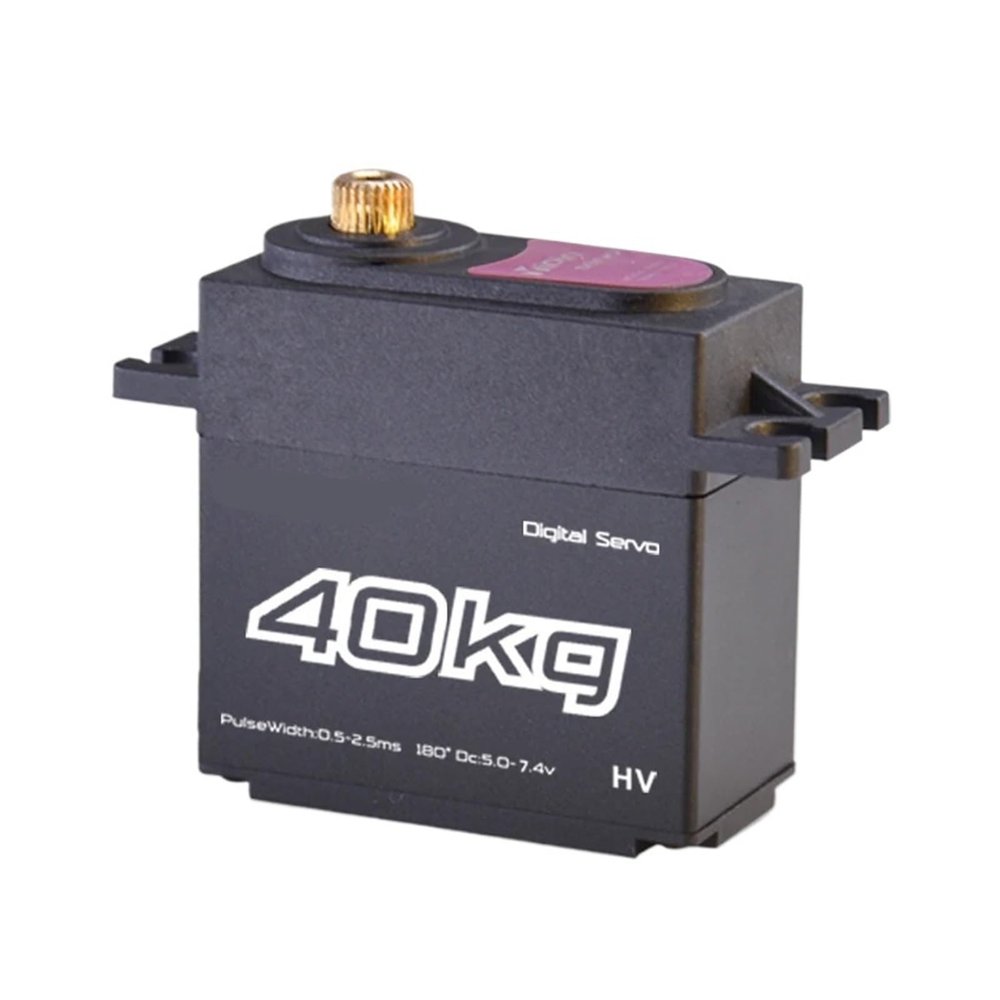

40kg high Speed Metal Gear Digital Motor servo Suitable for 1/8 1/10 1/12 Scale(40kg 180 Degree)

Description

• Servo Gears

Servo Gears
Control system: PWM control
Model: YP3235MG Operating voltage: 4.8V7.4V
Working temperature: -20C+60C
Torque: 6V /35kg.cm
7.4V/38kg.cm
Idle speed: 6V/0.2 seconds/60 degrees
7.4V/0.19s/60 degrees
Steering angle: 180/270 degrees
Dead zone: 3usec
Lifespan: >15000 times without load
Moving angle: 6010
Motor type: Iron core motor
Signal Booster Type: Digital
Size: 40*20.2*40.5mm
Weight: 58g (without accessories)
Ball bearing: 2BB
Gear material: Metal gear
Shell material: PA66+fiber 40%
Cable length: 300mm

Brown wire: negative pole
Red wire: positive
Orange line: signal

Model: YP3230MG
Torque: 6V /30kg.cm
7.4V/33kg.cm
Idle speed: 6V/0.18 seconds/60 degrees
7.4V/0.14s/60C
Steering angle: 180/270 degrees
Dead zone: 3usec
Lifespan: >15000 times without load
Moving angle: 6010
Motor type: Iron core motor
Signal Booster Type: Digital
Size: 40*20.2*40.5mm
Weight: 58g (without accessories)
Ball bearing: 2BB
Gear material: Metal gear
Shell material: PA66+fiber 40%
Cable length: 300mm

Brown wire: negative pole
Red wire: positive
Orange line: signal

Model: YP3220MG
Torque: 6V /30kg.cm
7.4V/33kg.cm
Idle speed: 6V/0.16 seconds/60 degrees
7.4V/0.14s/60C
Steering angle: 180/270 degrees
Dead zone: 3usec
Lifespan: >15000 times without load
Moving angle: 6010
Motor type: Iron core motor
Signal Booster Type: Digital
Size: 40*20.2*40.5mm
Weight: 58g (without accessories)
Ball bearing: 2BB
Gear material: Metal gear
Shell material: PA66+fiber 40%
Cable length: 300mm

Brown wire: negative pole
Red wire: positive
Orange line: signal
