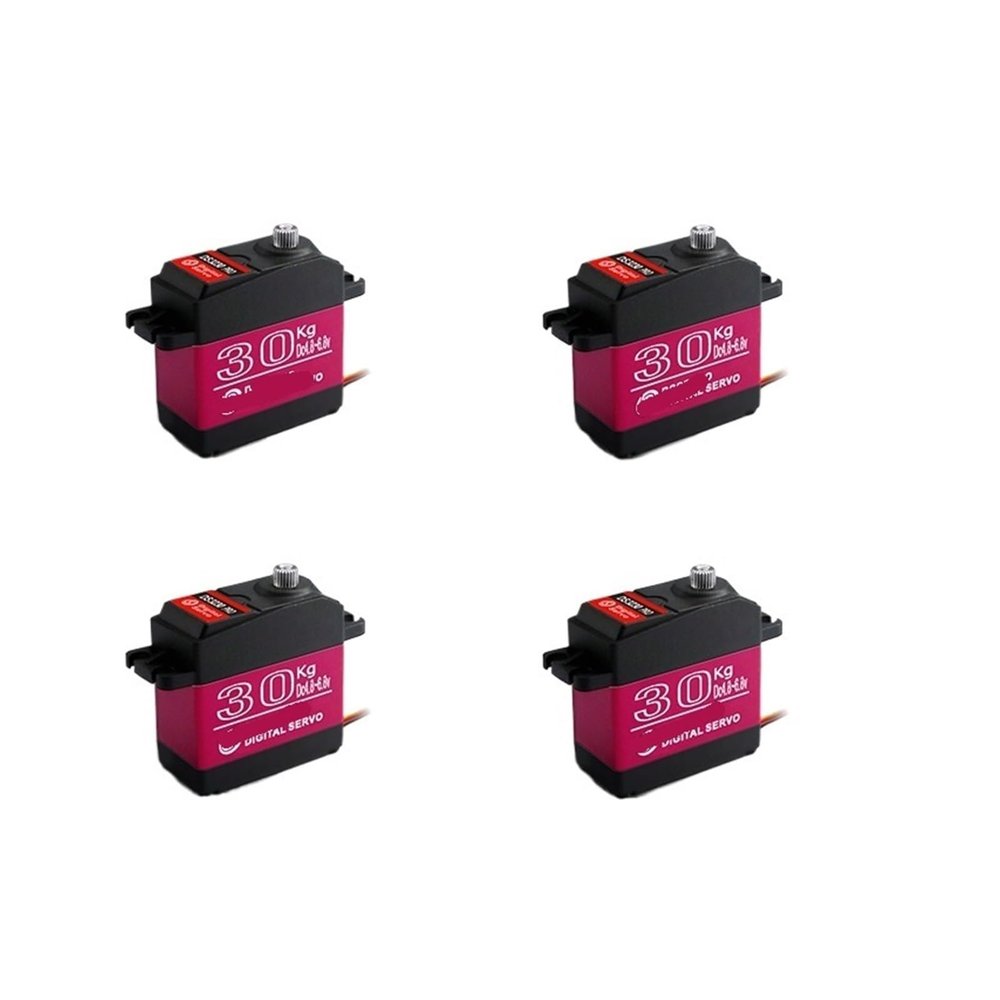

4pcs Waterproof servo 20Kg 25Kg 30Kg 35Kg 40Kg high Speed servo Metal Gear Digital servo(DS3230 PRO-180)

Description

• Servo Gears

Servo Gears
Specification:

packing list:
4x digital servos
4x25T Adjustable Metal Servo Arm
4 Accessory Bags
Applicable environmental conditions:
1. Storage temperature range: -30C~80C
2. Operating temperature range: -25C~70C
Mechanical Specifications:
1. Size: 40.0*20.5*40.5mm
2.Weight: 58g2g
3. Limit angle: 360
4. Bearing: 2BB
5. Horn gear spline: 25T Diameter: 5.9mm
6. Shell: engineering plastic + aluminum alloy
7.Connecting wire: 320mm5mm
8. Motor: Carbon brush motor
specifications:
1. Operating voltage range: 4.8-6.8V
2. Command signal: pulse width modification
3. Amplifier type: digital controller
4. Pulse width range: 500-2500usec
5. Neutral position: 1500usec
6. Operating angle: 1803 (PWM500-2500usec)
or 2703(PWM500-2500usec)
7. Dead zone width: 3usec
8. Rotation direction counterclockwise: (1000-2000usec)
If you need to buy a small number of servos for testing, look for the 1X link in the store!
