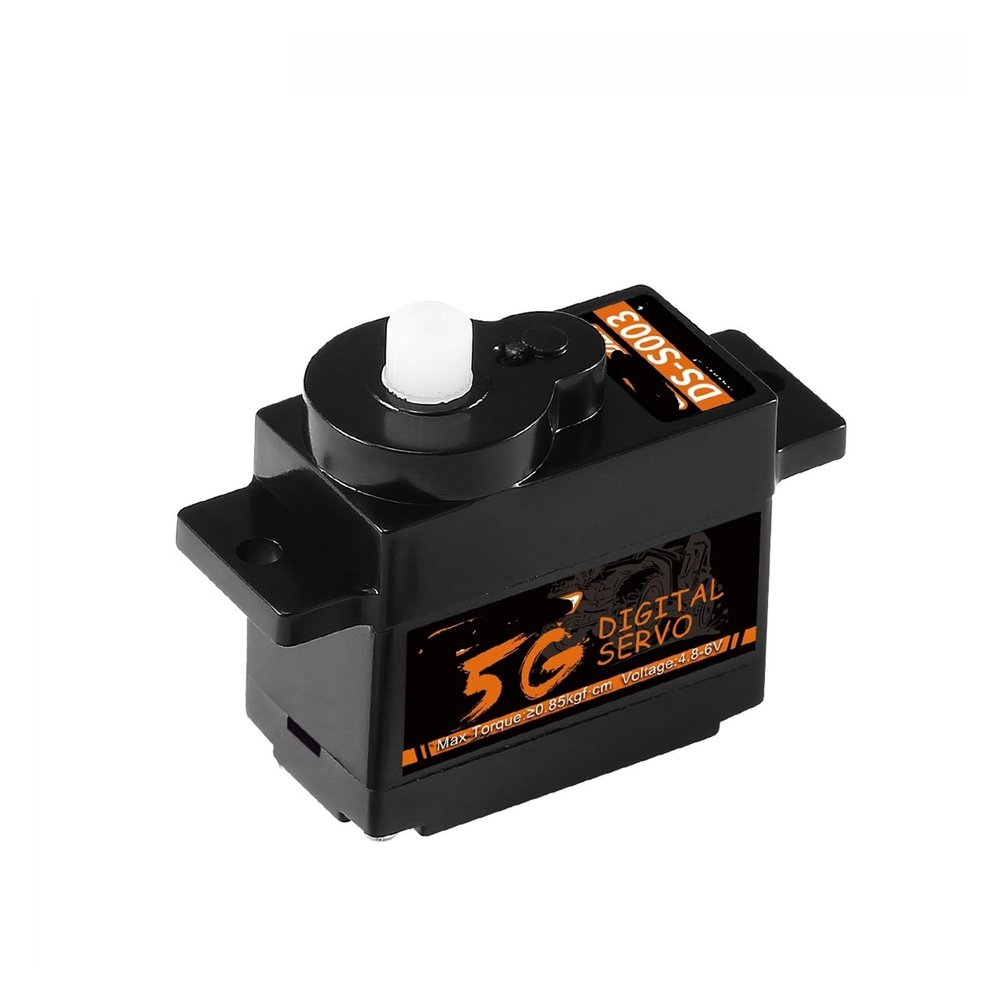

5g Digital servo Plastic/Metal Gear mini servo for k969 k989 k999 mini(S003 JST)

Description

• Steering Gear

Steering Gear
Product Name: S003
Quantity: 1 piece
Working voltage: 4.8~6.0V DC
Maximum torque: 4.8V0.80kgf.cm; 6.0V0.85kgf.cm
No-load speed: 4.8V0.08s/60; 6.0V0.07s/60
Stalled rotor current: 4.8V800mA; 6.0V950mA
Current consumption* (no load): 4.8V 100mA; 6.0V110mA
Maximum action travel angle: 9010(1000~2000s)
Dead zone width: 3 us
Mechanical limit angle: 210
Communication interface: PWM
Motor type: Coreless motor
Case material: ABS
Gear set material: plastic gear
Weight: 5g
Dimensions: 2011.521.3mm
Connector cable length: JR 2005mm (not included)
Product Name: DSpower S00 Quantity: 1 piece
Working voltage: 4.8~6.0V DC
Maximum torque: 4.8V1.20kgf.cm; 6.0V1.4kgf.cm
No-load speed: 4.8V0.08s/60; 6.0V0.07s/60
Stalled rotor current: 4.8V800mA; 6.0V950mA
Current consumption* (no load): 4.8V 100mA; 6.0V110mA
Maximum action travel angle: 1801(500~2500s)
Dead zone width: 1 us
Mechanical limit angle: 210
Communication interface: PWM
Motor type: Coreless motor
Case material: ABS
Gear set material: metal gear
Weight: 13 g
Dimensions: 2011.521.3mm
Connector cable length: JR 2005mm (not included)

Package Included:
1 * 5G digital servo
1 * Servo Arm Accessories
