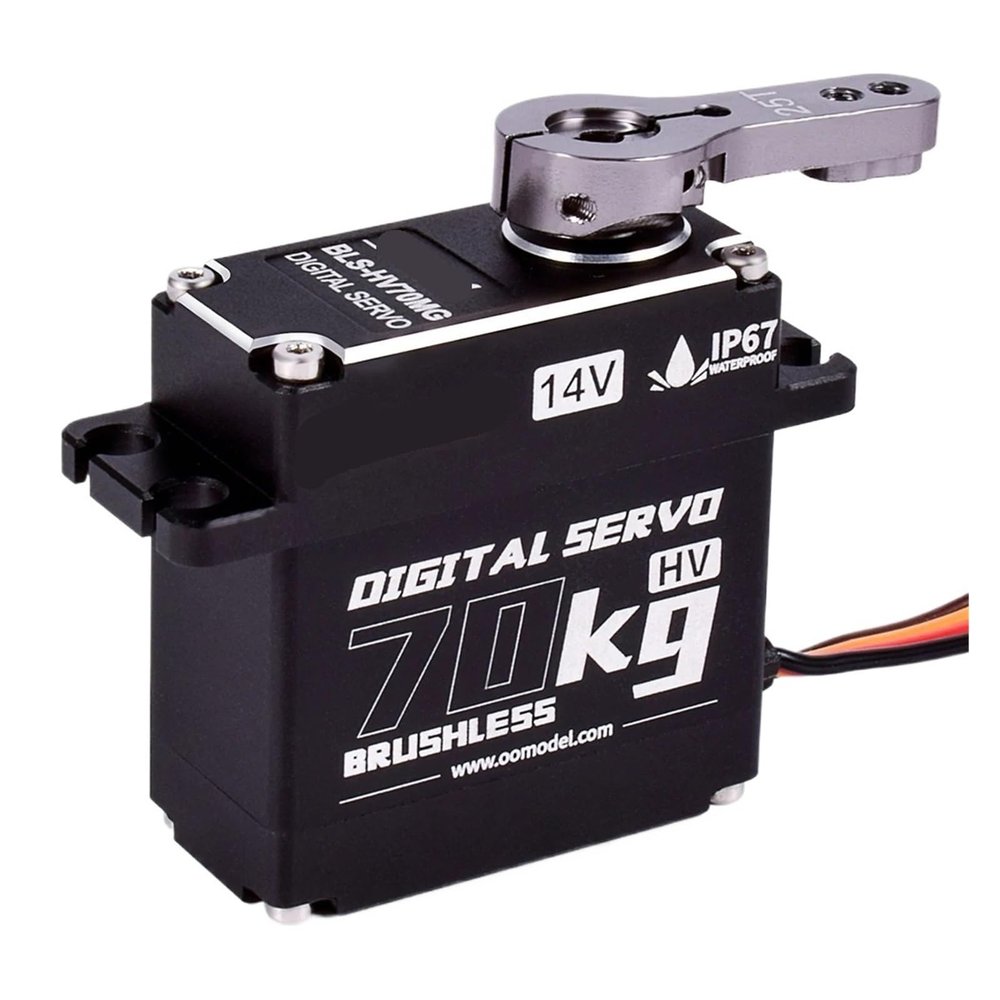

70KG Digital Servo Motor HV High Torque 180270360 Waterproof Brushless Metal Gear Steering Servo Suitable for 1/8 1/10(360)

Description

• Servo Gears

Servo Gears
Specification:

Model: BLS-HV70MG
Color: Black
Control angle: 180/270/360 optional
Dead band width: 1 usec
Gear material: Metal gear
Case material: Aluminum case
Control system: PWM control (center point 1500usec)
Working voltage range: 10.0V~15V
Operating temperature range: -20C~ +60C
Cycle times: >1 million times (no load)
Operating stroke: 601
Limit angle: 180/270/3601
Direction: Clockwise/Pulse travel 500-2500 seconds
Diver Type: Mos Drive
Motor type: brushless motor
Potentiometer Type: Direct Drive
Amplifier Type: Digital Control
Static torque: 0.13sec/60, 56kg-cm@10.0V;
0.1 sec/60, 65 kg-cm@12V
0.09 sec/60, 70 kg-cm@14V
Idle current: 400mA@10.0V; 450mA@12V; 550mA@14V
Operating current: 5500mA@10.0V; 6800mA@12V; 8000mA@14V
Ball bearing: 2BB
Connector wire length: 300MMJR JST Connector wire gauge: 22AWG
Wire information (brown): negative pole
Wire information (red): positive
Wire information (black): negative
Wire information (yellow): S single
Dimensions: 40x20x42.5mm
Weight: 89g (excluding servo speaker)
Equipped with 25T metal servo arm
Tips: Our 360-degree servo has a built-in adjustable potentiometer, so the left and right sides of the middle track rotate 180 degrees, not 360 degrees.
Package Included:
1 server
1 x Servo Accessory
